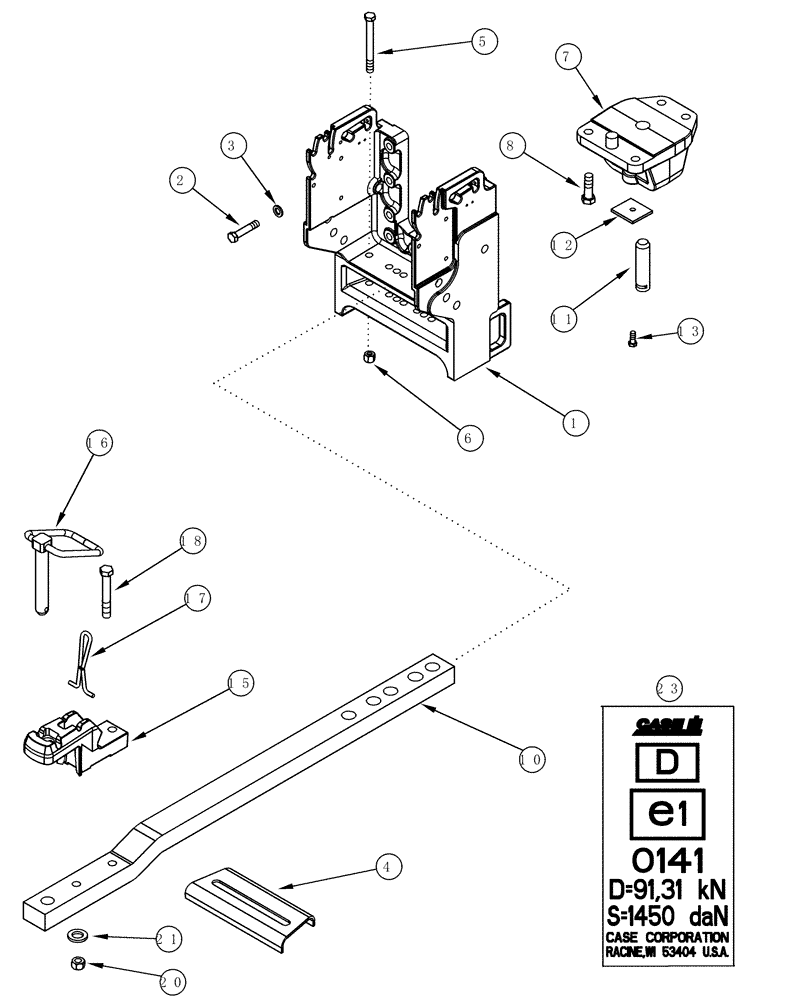

Запчасти Case IH MX220 (09-47) - DRAWBAR HAMMERSTRAP, EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

1

251788A3

FRAME,Hitch

1шт.

2

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

10шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

4

238495A2

LARGE PLATE

PLATE, LARGE

1шт.

5

827-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

2шт.

6

832-10416

NUT,M16 x 2, Cl 8

2шт.

7

232968A1

SUPPORT

1шт.

8

828-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

M20 x 65; 10.9

4шт.

10

275054A1

DRAWBAR

1шт.

11

1982103C1

PIN,34.87mm OD x 140mm L

1шт.

12

67828C1

RETAINER

1шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

14

892-11012

LOCK WASHER,M12

1шт.

15

275055A2

TOW HOOK

1шт.

16

275056A2

HITCH PIN

1шт.

17

232617A1

LATCH

1шт.

18

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

2шт.

20

829-1420

NUT,M20, Cl 10

2шт.

21

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

22

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

23

370061A1

DECAL

1шт.
