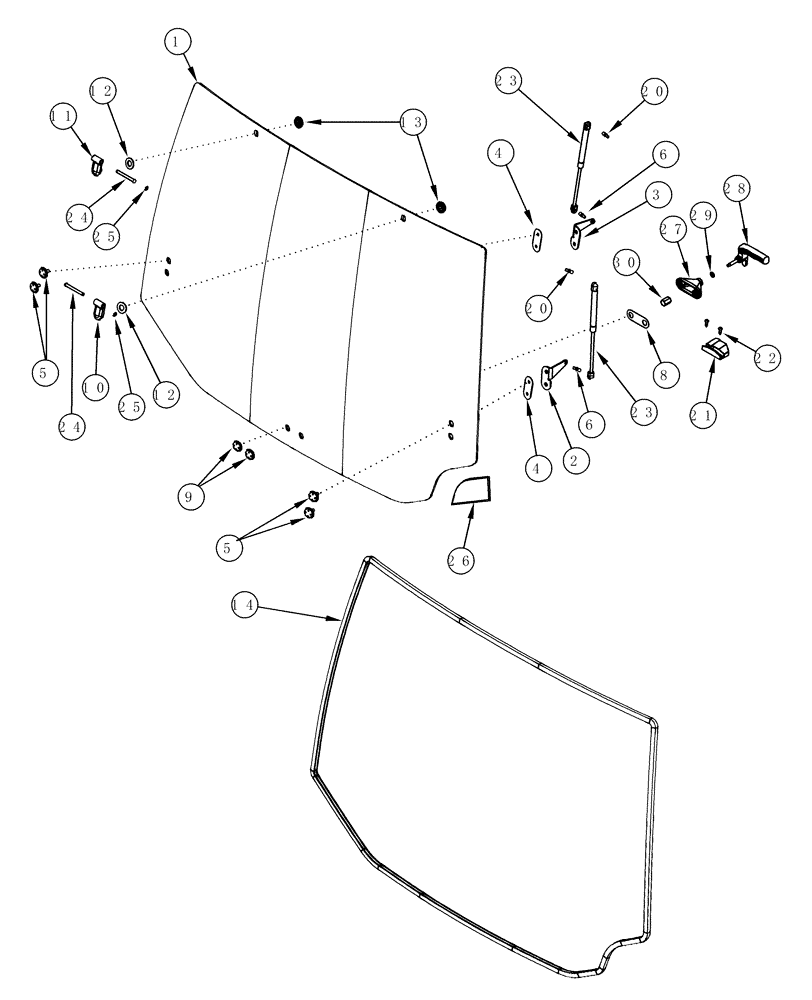

Запчасти Case IH MX220 (09-19) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

242667A4

GLASS

Standard And Deluxe Cab, Green Tinted Glass

1шт.

1

87309742

CAB GLASS

Luxury Cab, Grey Tinted Glass, Low Light Transmission, Replaces Dark Green Tinted Glass 360033A1

1шт.

2

256810A1

SUPPORT

Right Hand

1шт.

3

256809A1

SUPPORT

Left Hand

1шт.

4

222787A2

PAD

2шт.

5

198916A2

CAP,M8 x 20, Black

4шт.

6

K303756

BALL STUD,M6 x 1

6 mm

2шт.

8

220935A3

PAD

1шт.

9

198913A3

BUTTON

2шт.

10

176246A2

HINGE

Right Hand

1шт.

11

176245A2

HINGE

Left Hand

1шт.

12

180361A2

WASHER,18mm ID x 35mm OD x 3mm Thk

2шт.

13

198913A3

BUTTON

2шт.

14

254772A3

SEALING STRIP

1шт.

20

K303756

BALL STUD,M6 x 1

6 mm

2шт.

21

186149A3

PLATE

1шт.

22

761-14622

SELF-TAP SCREW,Pan Hd, M6.3 x 22

M6.3 X 22

2шт.

23

252550A2

GAS STRUT

2шт.

24

1535323C1

PIN,8mm OD x 78.5mm L

2шт.

25

800-437

CIRCLIP,M7

2шт.

26

254711A1

GROMMET

1шт.

230009A4

HANDLE

Consists Of 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

Support

1шт.

28

NSS

NOT SOLD SEPARAT

Handle

1шт.

29

NSS

NOT SOLD SEPARAT

Washer

1шт.

30

NSS

NOT SOLD SEPARAT

Nut, Special

1шт.
