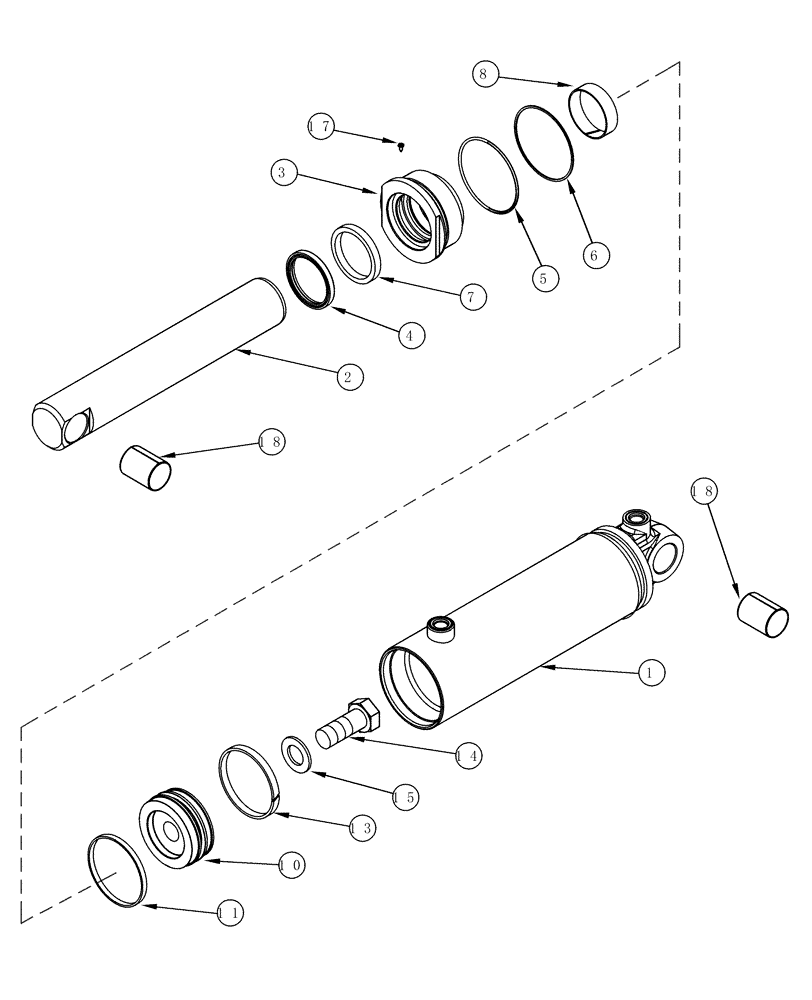

Запчасти Case IH MX220 (08-21) - CYLINDER ASSY HITCH (08) - HYDRAULICS

278277A3

CYLINDER ASSY.

95 ID x 260 mm strk, Part Number Stamped On Cylinder, Consists Of 1 - 18

1шт.

87542725R

REMAN-HYD CYLINDER

MX180, MX200, MX220, MX240, MX270, All CASE IH MAGNUM (P.I.N. JJA0105000 & AFTER) (1/99-), TG255 (7/02-12/05), TG210, TG230, TG285, All (12/02-), All TRACTOR, Reman for New PN 278277A3

1шт.

87542725C

CORE-HYD CYLINDER

Return Number

1шт.

1

303872A1

TUBE,95.35 mm ID, 414.1 mm Length

1шт.

2

303880A1

PISTON ROD

1шт.

3

303876A1

CYLINDER END CAP

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

5

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 1/8

1шт.

6

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

7

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

1шт.

8

258960A1

BEARING,63.5mm ID x 66.57mm OD x 18.8mm L

1шт.

10

278285A2

JACK PISTON

1шт.

11

190332A1

SEAL,74.5mm ID x 88.77mm OD x 7.16mm Thk

1шт.

13

278331A1

WEAR RING,Split, 88.9mm ID x 95.25mm OD x 9.52mm Thk

1шт.

14

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

15

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

17

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

18

237443A1

BUSHING,34.96mm ID x 38.9mm OD x 50mm L

1шт.

378712A1

SEAL KIT

Inc. 4, 5, 6, 7, 8, 11, 13

1шт.
