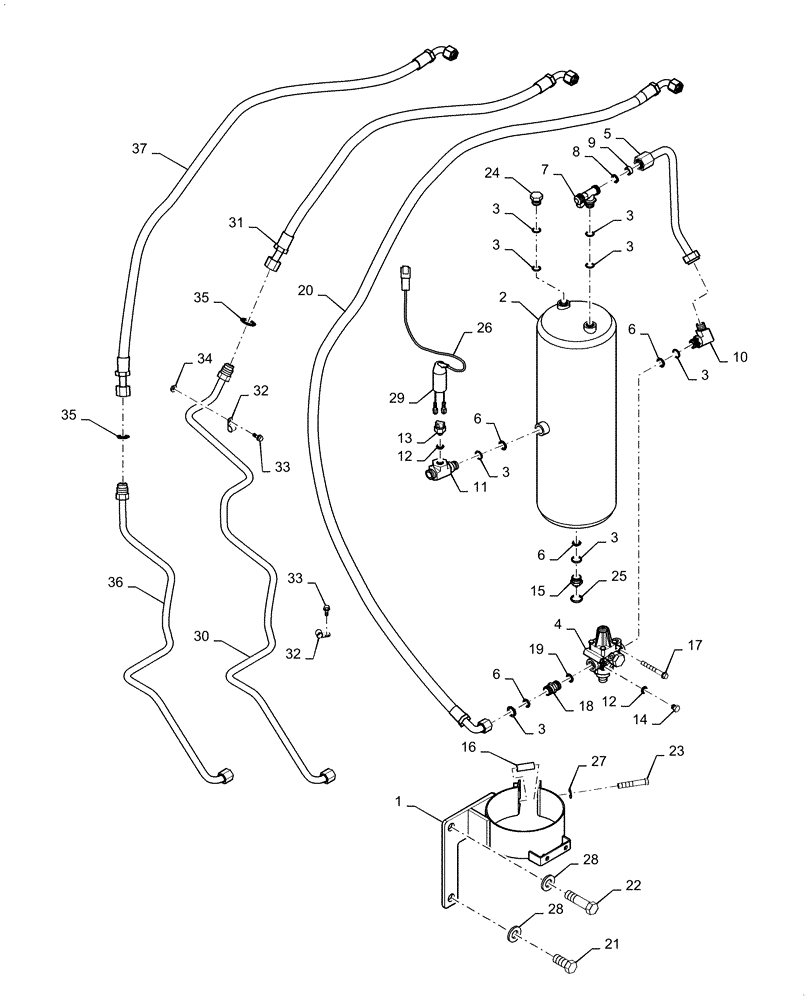

Запчасти Case IH MX220 (07-12) - TRAILER BRAKE PNEUMATIC, RESERVOIR, EUROPE ONLY (07) - BRAKES

1

365226A1

SUPPORT

Reservoir, Europe Only

1шт.

2

284908A1

AIR TANK

Trailer Brake Reservoir

1шт.

3

3076153R1

RING

6шт.

4

T103977

VALVE PRESSURE RELIE

Unloader Valve

1шт.

5

365225A1

PIPE

1шт.

6

3076154R1

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

6шт.

7

192960A1

TEE

Test Port

1шт.

8

3402992R1

SEALING RING

1шт.

9

3215241R1

THRUST RING

1шт.

10

225431A1

ELBOW

1шт.

11

348323A1

TEE

1шт.

12

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

13

178675A1

SWITCH, PRESSURE

Trailer Brake Air Reservoir

1шт.

14

933321R1

PLUG,M10 x 1 NPT

1шт.

15

897123H2

VALVE

Drain

1шт.

16

298064A2

SPACER

2шт.

17

844-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

M8 x 80; 8,8

2шт.

18

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 19

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

254416A3

HOSE ASSY.

Reservoir, Europe Only, If Equipped

1шт.

21

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

1шт.

22

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

1шт.

23

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

24

220067A1

PLUG,M22 x 1.5 ORB

22 Or

1шт.

25

1348019C1

RING

1шт.

26

349188A1

HARNESS

Pneumatic Pressure Switch

1шт.

27

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

28

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

29

393890A1

BOOT

1шт.

30

390957A1

TUBE

Reservoir to Compressor, If Equipped

1шт.

31

392856A1

HOSE ASSY.

1015mm, Reservoir to Compressor, If Equipped

1шт.

32

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

33

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

34

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

35

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

36

384486A1

PIPE

Reservoir to Compressor, If Equipped

1шт.

37

384713A1

HOSE ASSY.

1400mm, Reservoir to Compressor, If Equipped

1шт.
