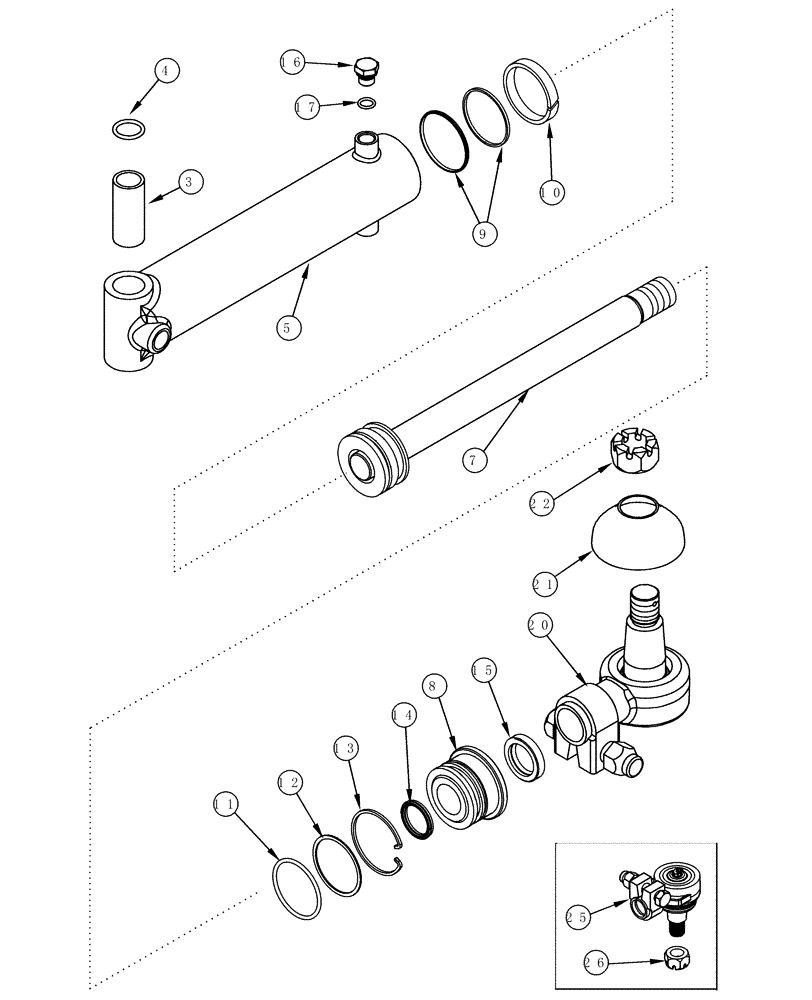

Запчасти Case IH MX220 (05-19) - STEERING CYLINDER ASSEMBLY M.F.D., MX180, MX200, MX220 (05) - STEERING

191812A7

4WD AXLE ASSY

MX180(1), MX200(1), See Figure 5-15

1шт.

191812A9R

REMAN-AXLE, MFD

Remanufactured, Axle MX180 - MX270

1шт.

191812A9C

CORE-AXLE, MFD

Return Part Number

1шт.

191813A7

4WD AXLE ASSY

MX220(1), See Figure 5-15

1шт.

3

314450A2

BUSHING

2шт.

4

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

4шт.

294107A2

STEERING CYLINDER

Consists Of 5 - 17

2шт.

5

NSS

NOT SOLD SEPARAT

Tube

1шт.

7

295565A1

PISTON ROD

1шт.

8

327556A1

CYLINDER END CAP

1шт.

318849A1

SEAL KIT

Inc. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

220064A1

PLUG,M14 x 1.5, ORB

Incl. 17

1шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

20

292562A1

BALL JOINT

JJA0097998 and up, Inc. 21,22, Start Serial: JJA0097998

2шт.

21

317647A1

BOOT

1шт.

22

429-1314

NUT,7/8"-14, G8

7/8 NF; 8

1шт.

25

1277261C1

BALL JOINT

Up to JJA0097997, Includes 26, Serial Range: -JJA0097997

2шт.

26

429-1314

NUT,7/8"-14, G8

7/8 NF; 8

1шт.
