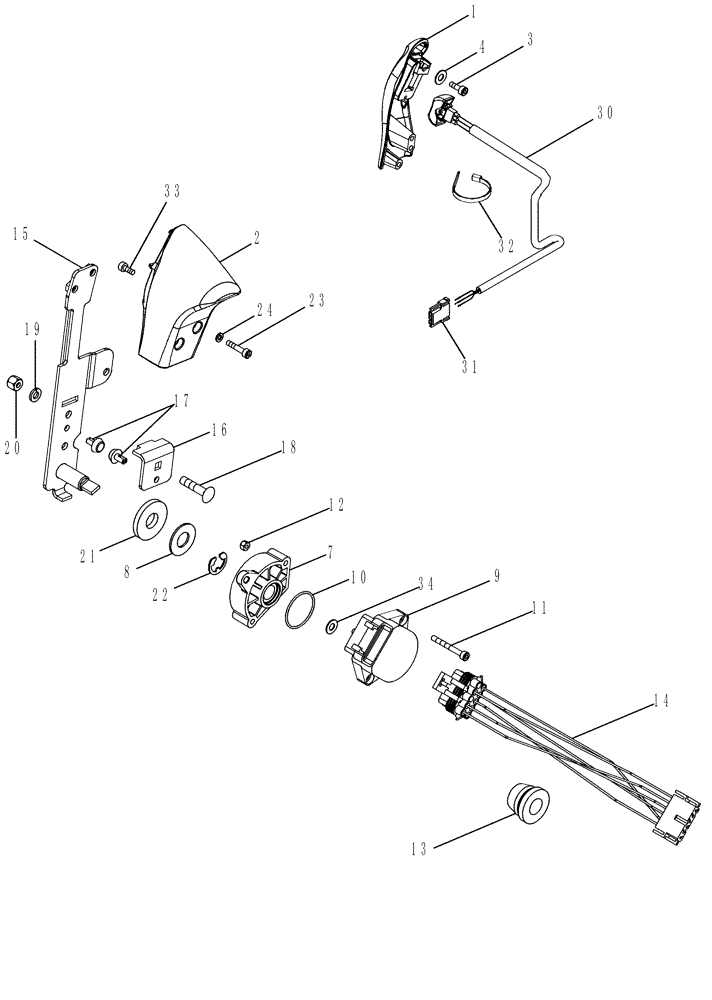

Запчасти Case IH MX215 (04-20A) - HAND THROTTLE AND TRANSMISSION CONTROL SWITCH (04) - ELECTRICAL SYSTEMS

1

87622401

GRIP

1шт.

2

293388A2

GRIP

Hand Throttle, Standard And Deluxe Cab

1шт.

2

359032A1

GRIP

Hand Throttle, Luxury Cab

1шт.

3

368048A1

SCREW,Prev Torque, M4 x 12mm, Cl 8.8, Full Thd

M4 x 12

3шт.

4

892-11004

LOCK WASHER,M4

To be Used With Ref 2, 359032A1 Grip

3шт.

7

239491A1

BUSHING

1шт.

8

237486A1

WASHER

1шт.

9

259012A1

POTENTIOMETER,2500 Ohm

Hand Throttle

1шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

11

864-4035

HEX SOC SCREW,M4 x 35mm, Cl 8.8

2шт.

12

832-46404

NUT,M4 x .7, Cl 8

2шт.

13

182220A1

GROMMET

1шт.

14

276352A1

HARNESS

1шт.

15

367607A1

BRACKET

1шт.

16

258734A2

BRACKET

1шт.

17

259040A1

INSERT

2шт.

18

811-6030

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 30mm, Cl 8.8

1шт.

19

892-11006

LOCK WASHER,M6

2шт.

20

832-10406

NUT,M6 x 1, Cl 8

1шт.

21

495-81022

WASHER,17/32" x 1 1/8" x .060"

1шт.

22

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

23

864-4025

HEX SOC SCREW,M4 x 25mm, Cl 8.8

2шт.

24

892-11004

LOCK WASHER,M4

2шт.

30

258010A2

SWITCH

Transmission Shift

1шт.

31

235676A1

CONNECTOR, ELEC

CONNECTOR

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

2шт.

33

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

1шт.

34

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.
