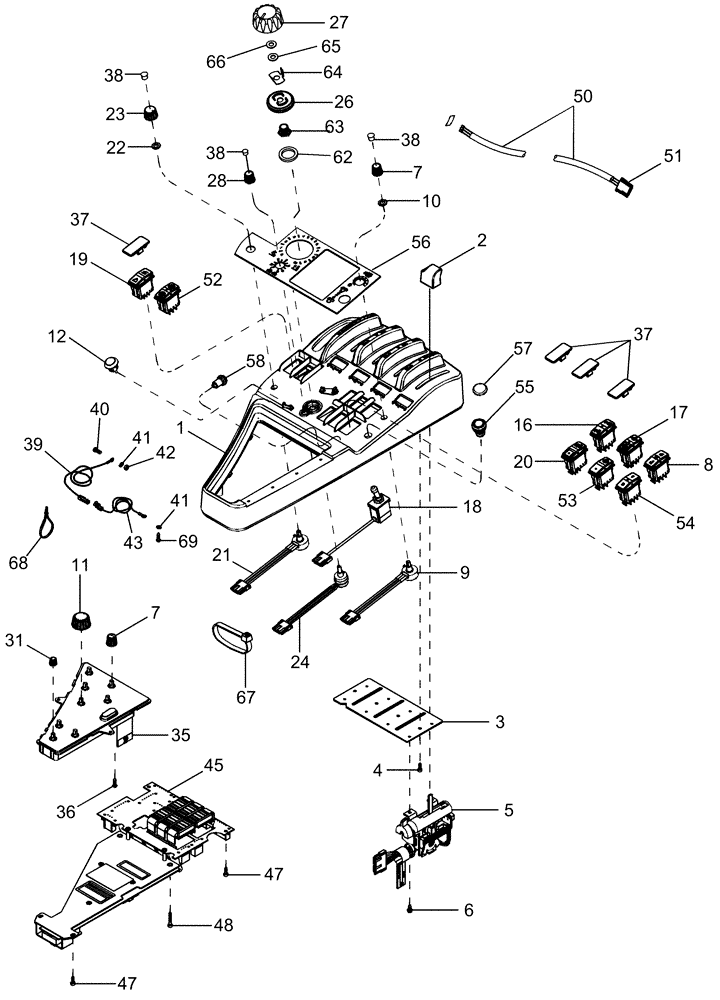

Запчасти Case IH MX215 (04-20) - CONTROLS - RIGHT HAND CONSOLE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Cover Assembly

1шт.

See Figure 09-35

1шт.

2

406962A1

KNOB

1шт.

3

230098A1

PLATE

1шт.

4

368048A1

SCREW,Prev Torque, M4 x 12mm, Cl 8.8, Full Thd

M4 x 12

4шт.

5

84184612

CONTROL LEVER

Remote Hydraulics

1шт.

5

47372893R

REMAN-JOYSTICK

MAGNUM 215, MAGNUM 245, MAGNUM 275, MAGNUM 305 All (9/06-), MX215, MX245, MX275, MX305 All (1/06-9/06), MAGNUM 335, Reman for New PN 84184612

1шт.

5

47372893C

CORE-JOYSTICK

Return Number

1шт.

6

281-3446

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

1шт.

7

276797A1

KNOB

1шт.

8

87414463

SWITCH

5th Remote

1шт.

8

87347179

SWITCH

Top Link

1шт.

9

256305A2

POTENTIOMETER,1000 Ohm

Flow Control, 5th Remote, Inc. 10

1шт.

10

A39888

NUT

3/8-32

2шт.

11

187820A1

KNOB

1шт.

12

87323840

SWITCH

Accuguide

1шт.

16

87414464

SWITCH

MFD

1шт.

17

87414328

SWITCH

Differential Lock

1шт.

18

409603A2

TOGGLE SWITCH

PTO

1шт.

19

86990406

SWITCH

Hitch Control

1шт.

20

87414327

SWITCH

Slip Limit Control

1шт.

21

87399300

POTENTIOMETER,1000 Ohm, 250V

Draft Control, Includes 22

1шт.

22

A39888

NUT

3/8-32

1шт.

23

87454709

KNOB

SWCD Encoder

1шт.

24

87399301

POTENTIOMETER,1000 Ohm, 250V

Hitch Position

1шт.

26

87435194

KNOB

Hitch Lever

1шт.

27

87434770

KNOB

Hitch Position Control

1шт.

28

314601A1

BUTTON

Hitch Draft Control

1шт.

31

223433A1

KNOB

3шт.

35

87365723

INSTRUMENT PANEL

Hitch Secondary/Flow With No Implement Height Control, Serial Range: -4/2/2008

1шт.

35

87493958

INSTRUMENT PANEL

Hitch Secondary/Flow With No Implement Height Control, Start Serial: 4/2/2008

1шт.

35

87382886

INSTRUMENT PANEL

Hitch Secondary/Flow With Implement Height Control, Serial Range: -4/2/2008

1шт.

35

87493959

INSTRUMENT PANEL

Hitch Secondary/Flow With Implement Height Control, Start Serial: 4/2/2008

1шт.

36

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

37

406324A2

PLUG

1шт.

38

87570112

PLUG

1шт.

38

353-401

PLUG,Dome, .312" hole, Nylon

1шт.

39

87518589

CABLE

Armrest Ground, 115 mm (4-1/2 in)

1шт.

40

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

41

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

42

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

43

87704091

CABLE

Cab Ground, 1385 mm (54-1/2 in)

1шт.

45

87524858

CONTROL

Without Software

1шт.

45

87524858R

REMAN ELECT CONTROL

Magnum 215, Magnum 245, Magnum 275, Magnum 305, Magnum 335, MX215, MX245, MX275, MX305, All w/o Software

1шт.

45

87524858C

CORE-ELECTRONIC CONT

Return Number

1шт.

47

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

48

864-4025

HEX SOC SCREW,M4 x 25mm, Cl 8.8

2шт.

50

258010A2

SWITCH

Transmission Shift

1шт.

51

235676A1

CONNECTOR, ELEC

CONNECTOR

1шт.

52

86989945

SWITCH

Programmable Shift

1шт.

52

87422017

SWITCH

End-of-Row Step/Pause, With End-of-Row System

1шт.

53

87414465

SWITCH

Autoshift, Serial Range: -Z6RZ05385

1шт.

53

87538596

SWITCH

Autoshift, Start Serial: Z6RZ05385

1шт.

54

87414467

SWITCH

Scraper

1шт.

55

87638633

KNOB

PTO Switch

1шт.

56

87453893

DECAL

1шт.

56

87350580

DECAL

No Hitch

1шт.

57

82031549

BLANK-OFF PLUG,35mm OD, Black

PTO Switch

2шт.

58

87330047

PUSH BUTTON

PTO

1шт.

58

87327317

PLASTIC PLUG

Switch Opening (Not Shown) 12.6 mm

1шт.

59

406324A2

PLUG

Switch Opening (Not Shown)

1шт.

60

296781A1

CONNECTOR, ELEC

CONNECTOR (Not Shown)

2шт.

61

87342542

DECAL

Hole Cover (Not Shown)

1шт.

62

87435853

SPACER,22mm ID x 38mm OD x 7mm L

1шт.

63

87435852

SPACER

1шт.

64

87435947

SPRING

1шт.

65

87436077

WASHER,9.9mm ID x 16mm OD x 0.41mm Thk

1шт.

66

87435946

LOCK WASHER

1шт.

67

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

68

291207C1

CLAMP

To Tie Ground Cable To Cab Harness

3шт.

69

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

1шт.
