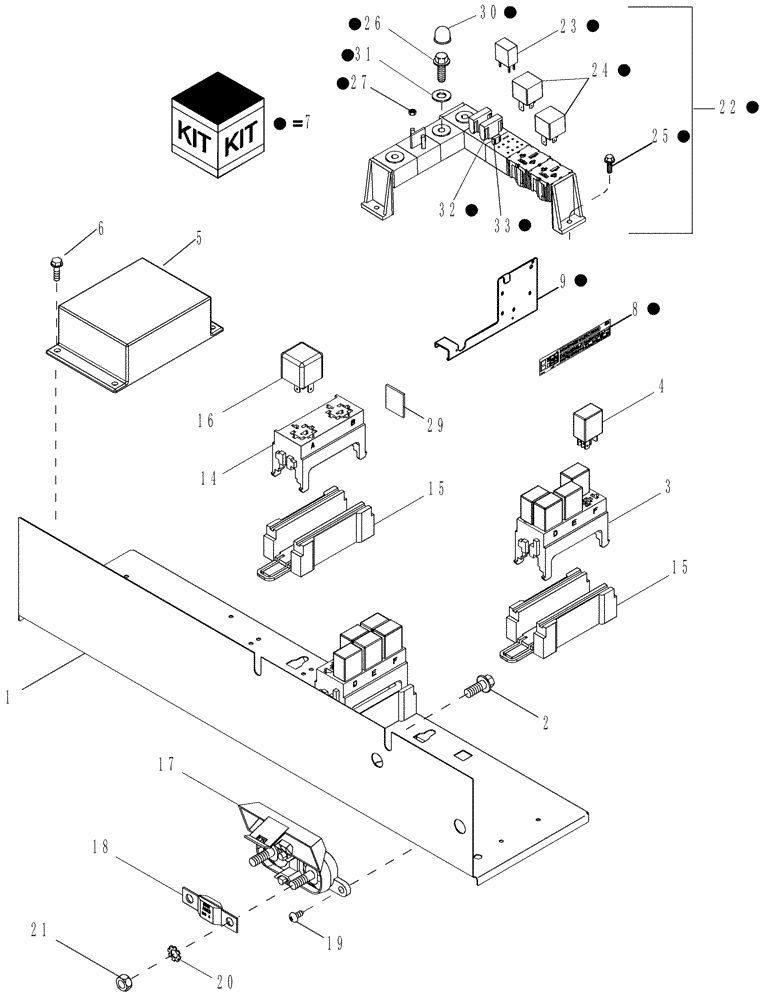

Запчасти Case IH MX215 (04-16) - ELECTRICAL COMPONENT MOUNTING - ASN Z7RZ05917 (04) - ELECTRICAL SYSTEMS

1

87718548

PANEL

1шт.

2

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

3шт.

3

144417A1

CONNECTING BLOCK

2шт.

4

87414866

RELAY,12V, 20A

20 Amp

20шт.

5

84150025

MODULE

Flasher Interface, 12 Pin

1шт.

6

780-34319

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 19

2шт.

7

87702558

KIT

Cab Power Solenoid, Inc. 8, 9, 22 - 24, 26, 27, 32, 33

1шт.

8

87730726

DECAL

1шт.

9

87701022

PLATE

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK, Relay

1шт.

15

182163A1

ELECTRO/HYD CONTACT

2шт.

16

1983394C2

RELAY

1шт.

17

440038A1

JUNCTION BLOCK

1шт.

18

440572A1

FUSE,100A, Megaval

100 Amp

1шт.

19

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

2шт.

20

893-11008

LOCK WASHER,Ext Tooth, M8

4шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

22

87673760

MODULE

Power Distribution, Inc. 23, 24, 26, 27, 32, 33

1шт.

23

416570A1

RELAY

1шт.

24

368459A1

RELAY,12V, 70A

70 Amp

2шт.

25

780-34319

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 19

3шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

27

87825

NUT,#10-32

2шт.

29

321663A1

SLIDING PAD

Velcro

1шт.

30

87706767

BOOT

3шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

32

338060A1

FUSE,60A, Mini, Blue

2шт.

33

121414A1

FUSE,20A, Mini, Yellow

1шт.
