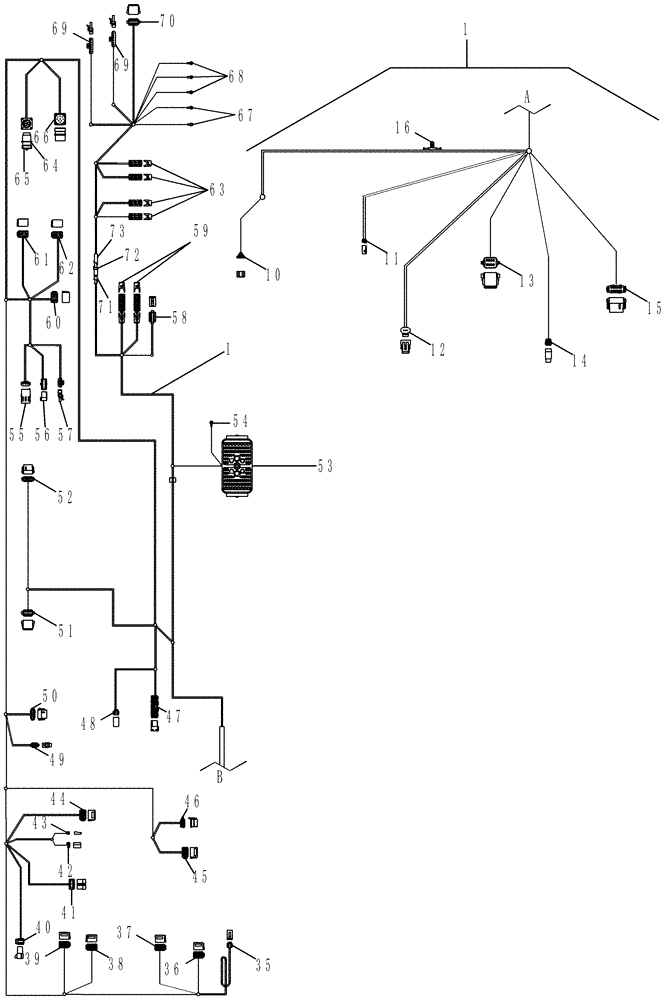

Запчасти Case IH MX215 (04-10[02]) - HARNESS - CAB (04) - ELECTRICAL SYSTEMS

1

87364635

HARNESS

Cab, Serial Range: -Z7RZ01521

1шт.

1

87748966

HARNESS

Cab, Start Serial: Z7RZ01521

1шт.

2

437550A1

FLANGE

102 Pin Connector

1шт.

3

780-34319

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 19

4шт.

4

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

2шт.

5

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

7

87525378

CONDUIT

RH, Armrest

1шт.

8

87716894

HARNESS

Relay Jumper

1шт.

9

87716237

TERMINAL

1шт.

10

475083C1

CONNECTOR, ELEC

CONNECTOR Rotary Worklight Switch, 6-Pin, 12F

1шт.

11

227429A1

CONNECTOR, ELEC

CONNECTOR Clutch Switch, 2-Pin, 50M

1шт.

12

198550A1

CONNECTOR, ELEC

CONNECTOR Master Clutch Pedal Pod, 3-Pin, 52M

1шт.

13

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Turn Signal Switch, 8-Pin, 9M

1шт.

14

222135A1

CONNECTOR, ELEC

CONNECTOR Self Canceling Turn Signal Switch, 2-Pin, 179M

1шт.

15

223671A1

CONTACT HOUSING,Female, 12 Pin

FNRP Switch, 12-Pin, 51M

1шт.

16

369917A1

CLIP

3шт.

17

225253C1

CONNECTOR, ELEC

CONNECTOR Ignition Switch, 6-Pin, 161F

1шт.

18

87426885

CONNECTOR, ELEC

CONNECTOR Headlight Switch, 10-Pin, 11M

1шт.

19

227429A1

CONNECTOR, ELEC

CONNECTOR Left And Right Brake, 2-Pin, 162M, 163M

2шт.

20

225351C1

ELEC CONNECTOR,Female, 6 Pin

Foot Throttle, 6-Pin, 164M

1шт.

21

225350C1

ELEC CONNECTOR,Male, 6 Pin

Foot Throttle Mating Connector, 6-Pin

1шт.

22

87711999

CONTACT HOUSING,Female, 31 Pole

Cab To Chassis Harness, 31-Pin, 60M, Nut Is P/N 87271930

1шт.

23

225037C1

TERMINAL CONNECTOR,19 - 20 mm2

Chassis Ground, 172F, 173F

2шт.

24

227728A1

CONNECTION,ELECTRIC

Aux Power, 3-Pin, 165M

1шт.

25

877291R1

ELEC CONNECTOR,Female

Radar, 2-Pin, 171M

1шт.

26

225316C1

ELEC CONNECTOR,Female, 2 Pin

Buzzer, 2-Pin, 380M

1шт.

27

87410949

CONTACT HOUSING,Female, 26 Pole

CN2, 26-Pin

1шт.

28

87410948

CONTACT HOUSING,Female, 26 Pole

CN1, 26-Pin

1шт.

29

631801C1

CONNECTION

High-Low Beam, 1-Pin, 267M, 268M

2шт.

30

113699A1

RECTIFIER

High-Low Beam, 267, 268

2шт.

31

739070C1

CONNECTOR, ELEC

CONNECTOR High-Low Beam, 1-Pin, 267F, 268F

2шт.

32

197503A1

CONNECTOR, ELEC

CONNECTOR Roof Harness, 8-Pin, 356M

1шт.

33

225351C1

ELEC CONNECTOR,Female, 6 Pin

Power Mirror, 6-Pin, 111M, Serial Range: -Z7RZ01521

1шт.

33

87382919

WIRE CONNECTOR,Male, 6 Cavities

Power Mirror, 6-Pin, 111M, Start Serial: Z7RZ01521

1шт.

34

196155A1

CONNECTOR, ELEC

CONNECTOR Roof Harness, 26-Pin, 13M

1шт.

35

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Right Side Wiper, 4-Pin, 98M

1шт.

36

87426881

HYD CONNECTOR

Ride Control, 10-Pin, 119M

1шт.

37

87426886

CONNECTOR, ELEC

CONNECTOR Axle Regulation Switch, 10-Pin, 181M

1шт.

38

87426882

CONNECTOR, ELEC

CONNECTOR Strobe/Beacon, 10-Pin, 129M

1шт.

39

87426881

HYD CONNECTOR

Cruise On/Off, 10-Pin, 257M

1шт.

40

227393A1

CONNECTOR, ELEC

CONNECTOR Intermittant Front Wiper, 6-Pin, 178F

1шт.

41

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR Front Wiper, 6-Pin, 127F

1шт.

42

877291R1

ELEC CONNECTOR,Female

Cigar Lighter, 2-Pin, 131A

1шт.

43

279658A1

CONNECTOR, ELEC

CONNECTOR Cigar Lighter, 1-Pin, 131B

1шт.

44

87426889

HYD CONNECTOR

Cruise Increment/Decrement, 10-Pin, 258M

1шт.

45

87426885

CONNECTOR, ELEC

CONNECTOR Rear Wiper,10-Pin, 122M

1шт.

46

375601A1

CONNECTOR, ELEC

CONNECTOR Power Mirrors, 10-Pin, 130M

1шт.

47

179483A1

CONNECTOR, ELEC

CONNECTOR HVAC Unit, 26-Pin, 139F

1шт.

48

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

HVAC Can Bus, 4-Pin, 381M

1шт.

49

280456A1

CONNECTOR,ELECTRIC

Autoguidance Harness, 8-Pin, 408M, Serial Range: -Z7RZ01521

1шт.

49

87382923

ELEC CONNECTOR,Male, 10 Cavities

Autoguidance Harness, 10-Pin, 408M, Start Serial: Z7RZ01521

1шт.

50

223671A1

CONTACT HOUSING,Female, 12 Pin

ISO 11783 Harness, 12-Pin, 273M, Serial Range: -Z7RZ01521

1шт.

50

87382919

WIRE CONNECTOR,Male, 6 Cavities

ISO 11783 Harness, 6-Pin, 273M, Start Serial: Z7RZ01521

1шт.

51

225389C1

CONNECTOR, ELEC

CONNECTOR Right Arm Console, 12-Pin, 137M

1шт.

52

223671A1

CONTACT HOUSING,Female, 12 Pin

Virtual Terminal, 12-Pin, 281M, Serial Range: -Z7RZ01521

1шт.

53

437551A1

ELEC CONNECTOR,Male, 102 Pin

To Main Chassis Harness, 102-Pin, 10F

1шт.

54

NSS

NOT SOLD SEPARAT

8MM Ring Terminal, Unswitched B+ To Solenoid, 240F

1шт.

55

245485C1

ELEC CONNECTOR,Male, 3 Pin

ATC Blower, 3-Pin, 124F

1шт.

56

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR Blower Switch, 6-Pin, 126F

1шт.

57

245484C1

ELEC CONNECTOR,3 Pin

HVAC Temp Control, 3-Pin, 125M

1шт.

58

225389C1

CONNECTOR, ELEC

CONNECTOR Seat Power, 12-Pin, 133M

1шт.

59

144421A1

CONNECTING BLOCK

Window And Operator, 261F, 262F

2шт.

59

194319A1

FUSE

Base, 261F, 262F

2шт.

60

87426892

CONNECTOR, ELEC

CONNECTOR Auto A/C Switch, 10-Pin, 123M

1шт.

61

87426882

CONNECTOR, ELEC

CONNECTOR Defog Switch, 10-Pin, 398M

1шт.

62

87426886

CONNECTOR, ELEC

CONNECTOR STD A/C Switch, 10-Pin, 128M

1шт.

63

144417A1

CONNECTING BLOCK

Micro Relay, 263F, 264F, 265F, 255F

4шт.

63

182163A1

ELECTRO/HYD CONTACT

Relay Base, 263F, 264F, 265F, 255F

4шт.

64

225164C1

ELEC CONNECTOR

Aux Power, 3-Pin, 269F

1шт.

65

225162C1

PLUG

Aux Power Conn Cap

1шт.

66

310057A1

ELEC CONNECTOR,Male, 9 Pin

Can Tractor Diagnostics, 10-Pin, 174M

1шт.

67

NSS

NOT SOLD SEPARAT

5MM Ring Terminal, Ground, IGN Feed, 279F, 239F

2шт.

68

NSS

NOT SOLD SEPARAT

8MM Ring Terminal, Switched B+, 138A, 138B, 138C

3шт.

69

245488C1

ELEC CONNECTOR,6 Pin

To Diode Pack 1 And 2, 6-Pin, 207M, 379M

2шт.

70

225402C1

CONNECTOR, ELEC

CONNECTOR Electronic Flasher, 12-Pin, 135M

1шт.

71

631801C1

CONNECTION

266M

1шт.

72

113699A1

RECTIFIER

266

1шт.

73

739070C1

CONNECTOR, ELEC

CONNECTOR 266F

1шт.

71

276426A1

ELEC CONNECTOR,Male, 3 Pin

Autoguidance Power To CODI, 3-Pin, 420F (Not Shown), Start Serial: Z7RZ01521

1шт.

72

223690A1

CONNECTOR, ELEC

CONNECTOR To CODI Jumper Harness, 12-Pin, 421F (Not Shown), Start Serial: Z7RZ01521

1шт.

73

87382915

ELEC CONNECTOR,Male, 4 Pin

To SWCD Harness, 4-Pin, 117M (Not Shown), Start Serial: Z7RZ01521

1шт.

74

87382929

WIRE CONNECTOR,Male, 14 Cavities

To SWCD HArness, 14-Pin, 377M (Not Shown), Start Serial: Z7RZ01521

1шт.

75

87711966

PLUG

From ISO To Diagnostic Connector, 2-Pin, 433MM (Not Shown), Start Serial: Z7RZ01521

1шт.

76

225315C1

ELEC CONNECTOR,Male, 2 Pin

To Diagnostic Connector, 2-Pin, 433F (Not Shown), Start Serial: Z7RZ01521

1шт.
