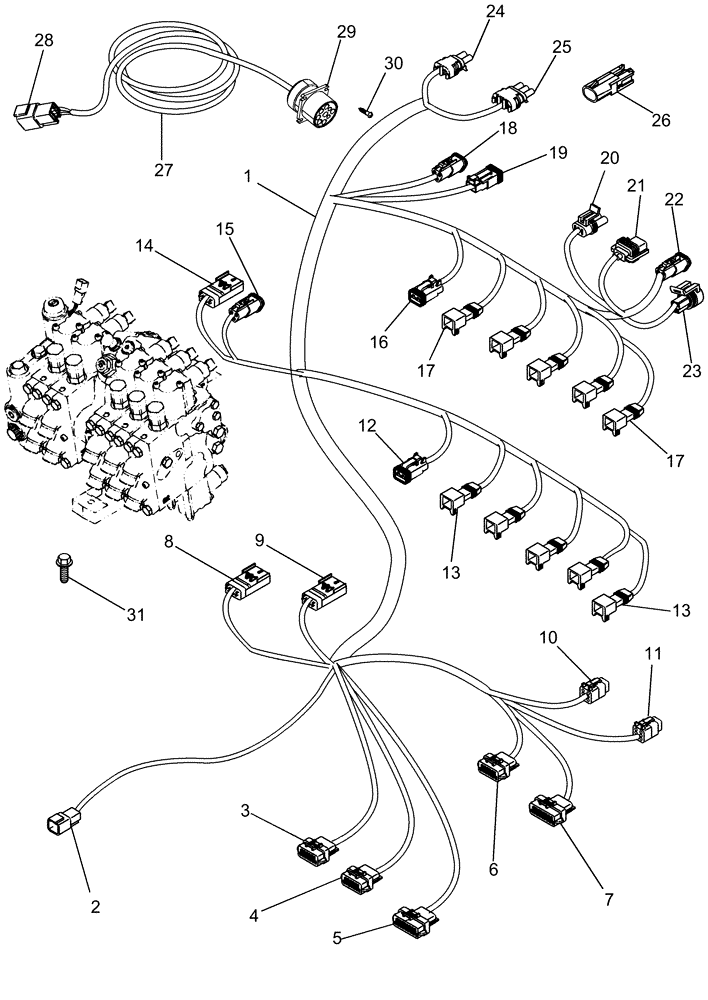

Запчасти Case IH MX215 (04-09) - HARNESS - REMOTE HYDRAULIC VALVE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
87351208
HARNESS
Remote Valve, Serial Range: -Z7RZ01522
1шт.
1
87748970
HARNESS
Remote Valve (Shown), Start Serial: Z7RZ01522
1шт.
2
87382918
WIRE CONNECTOR,Female, 6 Cavities
Right Fender PTO/EHR Switch
1шт.
3
87410949
CONTACT HOUSING,Female, 26 Pole
58M
1шт.
4
87410948
CONTACT HOUSING,Female, 26 Pole
53M
1шт.
5
87410946
MULTIPOLE CONNECTOR,Female, 34 Cavities
57M
1шт.
6
87419488
MULTIPOLE CONNECTOR,Female, 26 Pole
55M
1шт.
7
87410947
MULTIPOLE CONNECTOR,Female, 34 Pole
54M
1шт.
8
87382923
ELEC CONNECTOR,Male, 10 Cavities
Chassis
1шт.
9
87382927
ELEC CONNECTOR,Male, 14 Cavities
Chassis
1шт.
10
280453A1
ELEC CONNECTOR,Male, 6 Pin
Implement Potientometer
1шт.
11
87382921
WIRE CONNECTOR,Male
Left Fender PTO/EHR Switch
1шт.
12
225316C1
ELEC CONNECTOR,Female, 2 Pin
Hitch Down Solenoid
1шт.
13
291718A1
ELEC CONNECTOR,Female, 2 Pin
Remote Valves 2, 1, 3, 4 and 5 Raise
5шт.
14
87382911
WIRE CONNECTOR,Male, 3 Cavities
To Steering Angle Sensor Harness
1шт.
15
87382910
WIRE CONNECTOR,Female, 3 Cavities
To Steering Angle Sensor Harness
1шт.
16
225316C1
ELEC CONNECTOR,Female, 2 Pin
Hitch Up Solenoid
1шт.
17
291718A1
ELEC CONNECTOR,Female, 2 Pin
Remote Valves 2, 1, 3, 4 and 5 Lower
5шт.
18
225295C1
ELEC CONNECTOR,Female, 3 Pin
Draft, Left Hand
1шт.
19
225316C1
ELEC CONNECTOR,Female, 2 Pin
Differential Solenoid
1шт.
20
198550A1
CONNECTOR, ELEC
CONNECTOR Rockshaft Potientometer
1шт.
21
87416876
WIRE CONNECTOR,Female
PTO Solenoid
1шт.
22
225295C1
ELEC CONNECTOR,Female, 3 Pin
Draft, Right Hand
1шт.
23
198456A1
ELEC CONNECTOR,Female
To Hitch Load Pressure Sensor
1шт.
24
245482C1
ELEC CONNECTOR,2 Pin
PTO Shaft Speed
1шт.
25
245484C1
ELEC CONNECTOR,3 Pin
PTO Dual Speed
1шт.
26
84177894
ELEC CONNECTOR
Cover, PTO Dual Speed
1шт.
27
87589459
HARNESS
Inc. 28 - 29
1шт.
28
280453A1
ELEC CONNECTOR,Male, 6 Pin
TMF Controller
1шт.
29
87629238
Implement
1шт.
30
760-17113
SELF-TAP SCREW,Pan Hd, M3.5 x 13
4шт.
31
844-10016
BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd
Full Thd, Remote Valve Stack
1шт.
Выбрано товаров: 32
