Запчасти Case IH MX215 (04-07[01]) - HARNESS-CHASSIS (04) - ELECTRICAL SYSTEMS

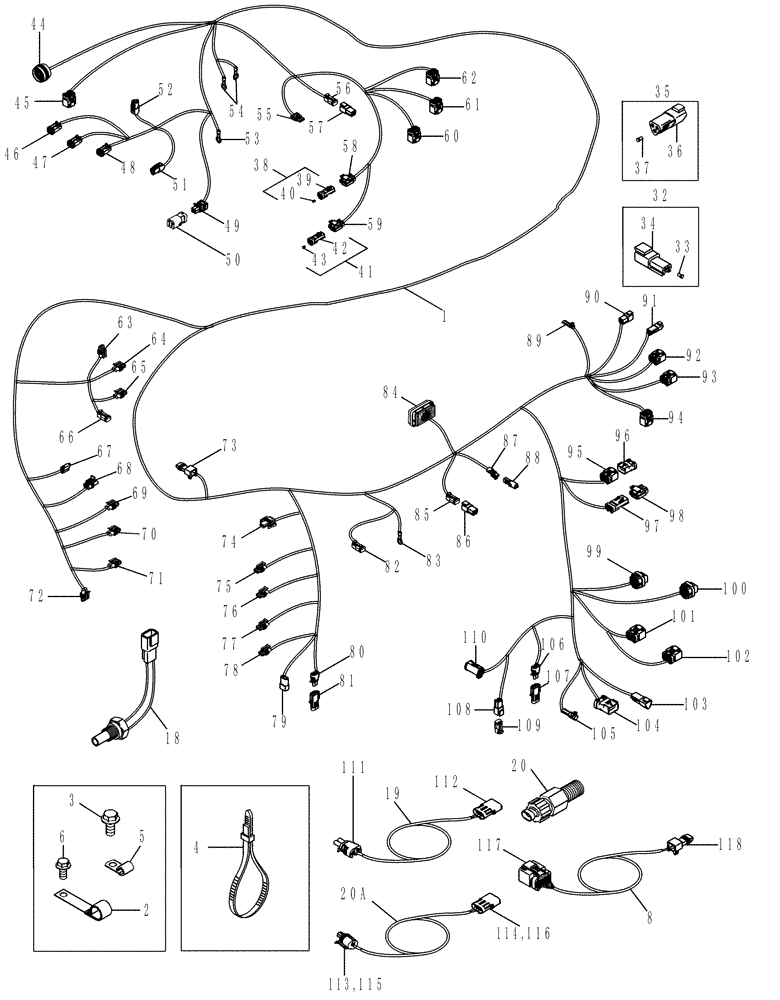

Схема запчастей Case IH MX215 - (04-07[01]) - HARNESS-CHASSIS (04) - ELECTRICAL SYSTEMS
20a
36
55
8
38
102
80
91
100
79
3
40
35
96
99
56
45
117
51
53
93
33
67
82
97
62
81
106
114
118
47
19
104
109
73
68
65
87
46
44
98
63
113
112
88
115
95
111
84
34
60
78
50
110
41
54
76
39
85
66
103
92
1
101
42
107
43
71
2
5
20
70
89
108
4
83
57
58
105
48
86
61
69
32
18
59
72
64
75
52
6
49
116
94
77
90
37
74

Артикул

Название

Примечание

Количество

1

87657972

WIRE HARNESS

Chassis, Serial Range: Z7RZ01521-Z7RZ05002

1шт.

1

87713413

HARNESS

Chassis (Shown), Start Serial: Z7RZ05003

1шт.

2

133738A1

CLIP

2шт.

3

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

5

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

2шт.

407118A2

CONTROL UNIT

ELECTRONIC CONTROL UNIT

1шт.

407118A2R

REMAN ELECT CONTROL

Reman New PN 407118A2

1шт.

407118A2C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

1шт.

7

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

For Wire Harness Bracket to Tube Support Bracket, (Not shown)

1шт.

8

87589808

HARNESS

System Pressure

1шт.

Magnum 305 and 335

1шт.

18

87521424

TEMPERATURE SENDER

Transmission

1шт.

See Figure 07-07

1шт.

19

366867A2

HARNESS

Dual Speed PTO Sensor

1шт.

20

87548197

SENSOR

Dual Speed PTO Replaces A186004

1шт.

Also Order 87651813 For Initial Replacement

1шт.

See Figure 06-38

1шт.

20a

87651813

HARNESS

Dual Speed PTO, 2 Pin and 3 Pin Connectors (Shown)

1шт.

20a

87631267

WIRE HARNESS

Dual Speed PTO, 2 Pin and 2 Pin Connectors

1шт.

21

169850C2

CABLE CLIP

Harness (Not Shown)

2шт.

22

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

(Not Shown)

1шт.

23

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

(Not Shown)

1шт.

24

829-1406

NUT,Hex, M6 x 1, Cl 10.9

(Not Shown)

1шт.

25

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

On Master Solenoid Stack, (Not Shown)

3шт.

26

87340323

BRACKET

(Not Shown)

1шт.

27

825-5148

SERRATED NUT,M8, Flg Ser

(Not Shown)

1шт.

28

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

Harness Clip On Tube Clamp And Harness Clip On L Bracket, (Not Shown)

2шт.

29

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

(Not Shown)

1шт.

30

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Harness Clip on Master Valve and Harness Ground Lug on Remote Valve, (Not Shown)

2шт.

31

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

(Not Shown)

2шт.

32

87707534

HYD CONNECTOR

Inc. 33, 34

1шт.

For Non Suspended Axle Option

1шт.

33

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

34

453133C1

PLUG

2шт.

35

87706349

HYD CONNECTOR

Inc. 36, 37

1шт.

For Non Suspended Axle Option

1шт.

36

225294C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

37

453133C1

PLUG

3шт.

38

87707527

HYD CONNECTOR

Inc. 39, 40

1шт.

For Non Variable Fan Option

1шт.

39

87382907

WIRE CONNECTOR,Male

1шт.

40

84279937

PLUG,Apex, 2.80mm

2шт.

41

87707528

HYD CONNECTOR

Inc. 42, 43

1шт.

For Non Variable Fan Option

1шт.

42

87382909

WIRE CONNECTOR,Male

1шт.

43

84279937

PLUG,Apex, 2.80mm

2шт.

44

87704445

PLASTIC PLUG

Chassis To Cab Harness, 31-Pin, 60F

1шт.

45

87382918

WIRE CONNECTOR,Female, 6 Cavities

Alt/Comp Harness, 6-Pin, 395F

1шт.

46

225316C1

ELEC CONNECTOR,Female, 2 Pin

Sus. Rod Valve, 2-Pin, 486M

1шт.

47

225316C1

ELEC CONNECTOR,Female, 2 Pin

Sus. Pump/Not_Tank Valve, 2-Pin, 488m

1шт.

48

225316C1

ELEC CONNECTOR,Female, 2 Pin

Sus. Piston Valve, 2-Pin, 487M

1шт.

49

245715C1

ELEC CONNECTOR,4 Pin

Radar, 4-Pin, 68M

1шт.

50

245716C1

ELEC CONNECTOR,Male, 4 Pin

Radar, 4-Pin, 68F

1шт.

51

225295C1

ELEC CONNECTOR,Female, 3 Pin

Piston Sensor, 3-Pin, 490M

1шт.

52

225295C1

ELEC CONNECTOR,Female, 3 Pin

Sus. Rod Sensor, 3-Pin, 489M

1шт.

53

NSS

NOT SOLD SEPARAT

5MM RING TERMINAL, Hydraulic Filter Restriction, 88F

1шт.

54

NSS

NOT SOLD SEPARAT

12MM RING TERMINAL, Clean Ground, 200F, Chassis Ground, 189F

1шт.

55

245484C1

ELEC CONNECTOR,3 Pin

Fuel Sender, 3-Pin, 66M

1шт.

56

225316C1

ELEC CONNECTOR,Female, 2 Pin

Autoguidance Lockout Solenoid, 2-Pin, 74M

1шт.

57

225315C1

ELEC CONNECTOR,Male, 2 Pin

Autoguidance Lockout Solenoid Plug

1шт.

58

87382906

WIRE CONNECTOR,Female, 2 Cavities

Variable Fan Compressor, 2-Pin, 563M

1шт.

59

87382908

WIRE CONNECTOR,Female

Variable Fan Valve, 2-Pin, 564F

1шт.

60

87382928

WIRE CONNECTOR,Female, 14 Cavities

To Engine Harness, 14- Pin, 28F

1шт.

61

87382927

ELEC CONNECTOR,Male, 14 Cavities

To Engine Harness, 14-Pin, 333M

1шт.

62

222136A1

ELEC CONNECTOR,Male, 2 Pin

Engine Harness, 2-Pin, 242F

1шт.

63

371614A1

ELEC CONNECTOR,Female, 2 Pin

Even Solenoid, 2-Pin, 30M

1шт.

64

371614A1

ELEC CONNECTOR,Female, 2 Pin

Odd Solenoid, 2-Pin, 29M

1шт.

65

371614A1

ELEC CONNECTOR,Female, 2 Pin

Creep Solenoid, 2-Pin, 39M

1шт.

66

225316C1

ELEC CONNECTOR,Female, 2 Pin

Park Brake Solenoid, 2-Pin, 49M

1шт.

67

872290R1

ELEC CONNECTOR,Male

Pressure Blower, 2-Pin, 90F

1шт.

68

87657131

MULTIPOLE CONNECTOR,Female, 3 Pole

Range Pressure, 3-Pin, 44M

1шт.

69

371614A1

ELEC CONNECTOR,Female, 2 Pin

1/2 Solenoid, 2-Pin, 31M

1шт.

70

371614A1

ELEC CONNECTOR,Female, 2 Pin

3/4 Solenoid, 2-Pin, 32M

1шт.

71

371614A1

ELEC CONNECTOR,Female, 2 Pin

5/6 Solenoid, 2-Pin, 33M

1шт.

72

371614A1

ELEC CONNECTOR,Female, 2 Pin

Reverse Solenoid, 2-Pin, 34M

1шт.

73

291718A1

ELEC CONNECTOR,Female, 2 Pin

System Pressure, 2-Pin, 436F

1шт.

74

199707A1

CONNECTOR, ELEC

CONNECTOR Master Solenoid, 2-Pin, 35M

1шт.

75

371614A1

ELEC CONNECTOR,Female, 2 Pin

MFD Solenoid, 2-Pin, 160M

1шт.

76

371614A1

ELEC CONNECTOR,Female, 2 Pin

Low Solenoid, 2-Pin, 36M

1шт.

77

371614A1

ELEC CONNECTOR,Female, 2 Pin

Mid Solenoid, 2-Pin, 37M

1шт.

78

371614A1

ELEC CONNECTOR,Female, 2 Pin

Hi Solenoid, 2-Pin, 38M

1шт.

79

87613646

WIRE CONNECTOR,Female

Wheel Speed, 2-Pin, 69M

1шт.

80

245482C1

ELEC CONNECTOR,2 Pin

Pneumatic Prefill Solenoid, 2-Pin, 70M

1шт.

81

245483C1

ELEC CONNECTOR,Male, 2 Pin

Pneumatic Prefill Solenoid Plug, 2-Pin, 70F

1шт.

82

225316C1

ELEC CONNECTOR,Female, 2 Pin

Transmission Temperature, 2-Pin, 89M

1шт.

83

NSS

NOT SOLD SEPARAT

5MM RING TERMINAL, Transmission Filter Restriction, 201F

1шт.

84

437552A1

ELEC CONNECTOR,Female, 102 Pin

To Cab Harness, 102-Pin, 10M

1шт.

85

245480C1

ELEC CONNECTOR,1 Pin

IT Trailer Brake, 1-Pin, 149F

1шт.

86

245481C1

CONNECTION,ELECTRIC

IT Trailer Brake, 1-Pin, 149M

1шт.

87

225316C1

ELEC CONNECTOR,Female, 2 Pin

Pneumatic Air Switch, 2-Pin, 67M

1шт.

88

225315C1

ELEC CONNECTOR,Male, 2 Pin

Pneumatic Air Switch, 2-Pin, 67F

1шт.

89

182064A1

CONNECTOR, ELEC

CONNECTOR Right Hand Fender Ground, 1-Pin, 41F

1шт.

90

225351C1

ELEC CONNECTOR,Female, 6 Pin

Right Hand Fender Lights, 6-Pin, 20M

1шт.

91

225294C1

ELEC CONNECTOR,Male, 3 Pin

Right Hand Hitch Switch, 3-Pin, 315F

1шт.

92

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

Transmission Controller, 34-Pin, 351M

1шт.

93

87410948

CONTACT HOUSING,Female, 26 Pole

Transmission Controller, 26-Pin, 350M

1шт.

94

87410949

CONTACT HOUSING,Female, 26 Pole

Transmission Controller, 26-Pin, 353M

1шт.

95

87382926

WIRE CONNECTOR,Female, 14 Cavities

To ISO11783 Extension Harness, 14-Pin, 294M

1шт.

96

87382927

ELEC CONNECTOR,Male, 14 Cavities

To ISO11783 Extension Harness Plug, 14-Pin, 294F

1шт.

97

87382907

WIRE CONNECTOR,Male

Tractor Can Bus, 2-Pin, 175M

1шт.

98

87382906

WIRE CONNECTOR,Female, 2 Cavities

Tractor Can Bus Plug, 2-Pin, 175F

1шт.

99

87410947

MULTIPOLE CONNECTOR,Female, 34 Pole

Transmission Controller, 34-Pin, 355M

1шт.

100

87419488

MULTIPOLE CONNECTOR,Female, 26 Pole

Transmission Controller, 26-Pin, 490M

1шт.

101

87382922

WIRE CONNECTOR,Female, 10 Cavities

Auxillary Chassis, 10-Pin, 335F

1шт.

102

87382926

WIRE CONNECTOR,Female, 14 Cavities

Auxillary Harness, 14-Pin, 434F

1шт.

103

225294C1

ELEC CONNECTOR,Male, 3 Pin

Left Hand Hitch Switch, 3-Pin, 314F

1шт.

104

87382919

WIRE CONNECTOR,Male, 6 Cavities

Left Hand Fender Lights, 6-Pin, 21M

1шт.

105

182064A1

CONNECTOR, ELEC

CONNECTOR Left Hand Fender Ground, 1-Pin, 40F

1шт.

106

245482C1

ELEC CONNECTOR,2 Pin

Imp. Status Switch, 2-Pin, 211M

1шт.

107

245483C1

ELEC CONNECTOR,Male, 2 Pin

Imp. Status Switch, 2-Pin, 211F

1шт.

108

225315C1

ELEC CONNECTOR,Male, 2 Pin

Backup Alarm, 2-Pin, 338F

1шт.

109

225316C1

ELEC CONNECTOR,Female, 2 Pin

Backup Alarm, 2-Pin, 338F

1шт.

110

182085A1

WIRE CONNECTOR

Trailer Connector, 7-Pin, 147M

1шт.

111

245482C1

ELEC CONNECTOR,2 Pin

PTO Dual Speed Sensor, 2-Pin, 336

1шт.

112

245485C1

ELEC CONNECTOR,Male, 3 Pin

To Aux/PTO Harness, 3-pin, 146

1шт.

113

82012093

WIRE CONNECTOR

PTO Speed Sensor, 2-Pin, 336MM, For Harness 87651813

1шт.

114

245485C1

ELEC CONNECTOR,Male, 3 Pin

To Main Harness, 3-Pin, 336FF, For Harness 87651813

1шт.

115

87613646

WIRE CONNECTOR,Female

PTO Speed Sensor, 2-Pin, For Harness 87631267

1шт.

116

245483C1

ELEC CONNECTOR,Male, 2 Pin

To Main Harness, 2-Pin, For Harness 87631267

1шт.

117

87382922

WIRE CONNECTOR,Female, 10 Cavities

Sus. Axle Solenoid, 10-Pin, 192FF

1шт.

118

291718A1

ELEC CONNECTOR,Female, 2 Pin

System Pressure, 2-Pin, 436F

1шт.
