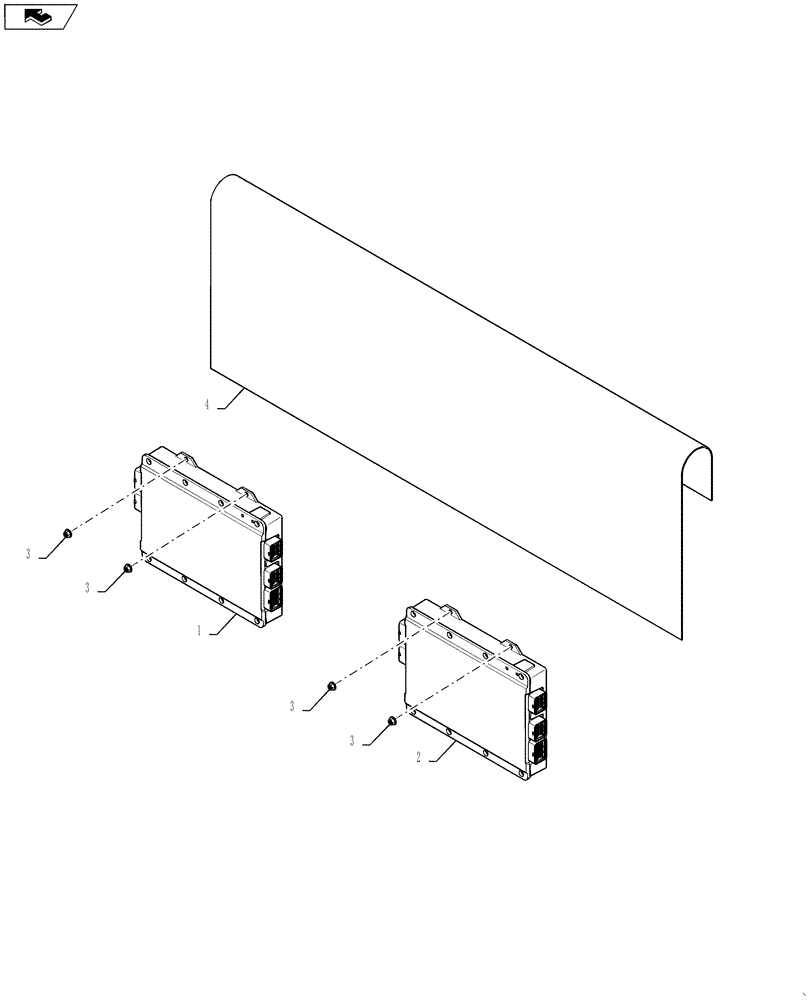

Запчасти Case IH MX215 (04-06) - MODULES- CHASSIS (04) - ELECTRICAL SYSTEMS

1

87617964

MODULE

Tractor Multifunction Controller (TMF)

1шт.

87617964R

REMAN-MODULE

MAGNUM 215, MAGNUM 245, MAGNUM 275, MAGNUM 305 All (9/09-), MX215, MX245, MX275, MX305 All (1/06-9/06), MAGNUM 335

1шт.

87617964C

CORE-MODULE

Return Number

1шт.

2

87653034

MODULE

Transmission, 18/4, 42KPH, 18 Speed Trans. ASN Z7RZ05000

1шт.

See Figure Note

1шт.

87653034R

REMAN ELECT CONTROL

(MAGNUM 305, MAGNUM 215, MAGNUM 245, MAGNUM 275 all (9/06-), MX215, MX245, MX275, MX305 all (1/06-9/06-), MAGNUM 335) all ASN Z7RZ05000

1шт.

87653034C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87653037

ECU

Transmission, 18/4, 42KPH, 18 Speed Trans. BSN Z7RZ05000

1шт.

See Figure Note

1шт.

2

87617961

MODULE

Transmission, 18/4, 42KPH

1шт.

See Figure Note

1шт.

2

87653035

MODULE

Transmission, 19/4 Econ, 42KPH ECON

1шт.

See Figure Note

1шт.

2

87653038

MODULE

Transmission, 19/4 Econ, 42KPH ECON

1шт.

See Figure Note

1шт.

2

87617962

MODULE

Transmission, 19/4 Econ, 42KPH ECON

1шт.

See Figure Note

1шт.

2

87653036

MODULE

Transmission, 19/4, 50KPH

1шт.

See Figure Note

1шт.

3

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

4шт.

4

84188220

COVER

Controller, Rubber

1шт.
