Запчасти Case IH MX215 (04-03) - POWER DISTRIBUTION - ASN Z7RZ01521 (04) - ELECTRICAL SYSTEMS

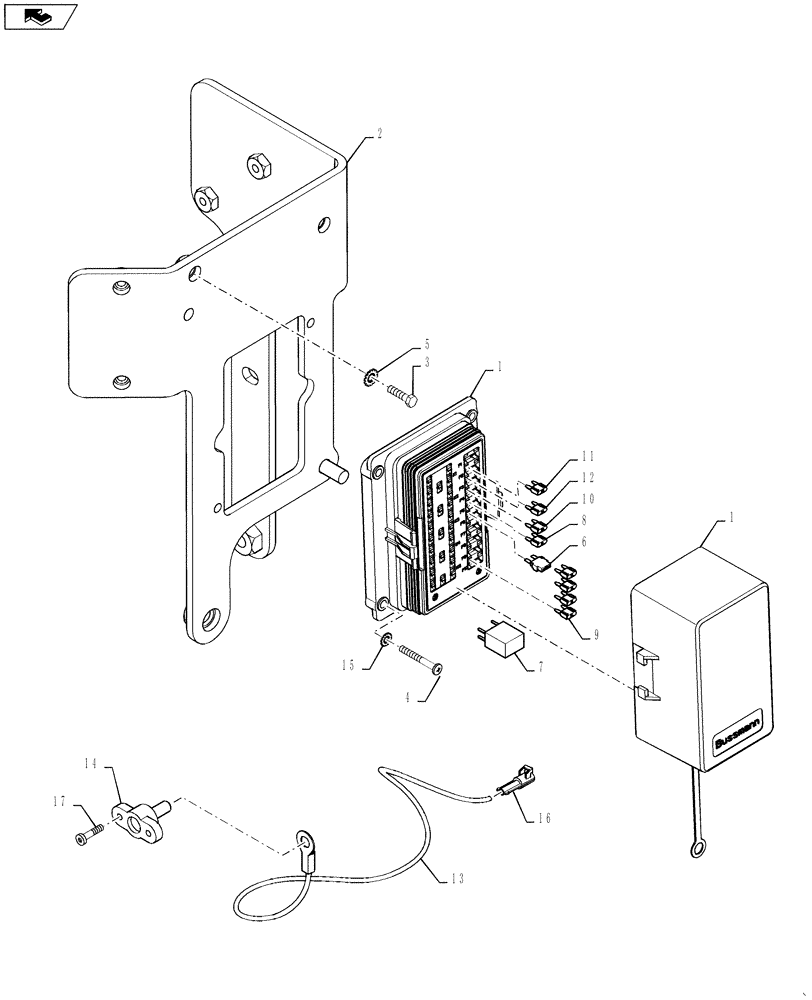

Схема запчастей Case IH MX215 - (04-03) - POWER DISTRIBUTION - ASN Z7RZ01521 (04) - ELECTRICAL SYSTEMS
3
5
8
15
1
16
1
17
6
home
7
12
2
14
4
10
13
9
11

Артикул

Название

Примечание

Количество

1

87312843

FUSE BOX

Engine

1шт.

2

87548859

BRACKET

Fuse Box

2шт.

3

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

4шт.

4

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

4шт.

5

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

4шт.

6

416569A1

DIODE ELEMENT,7300W

1шт.

7

416570A1

RELAY

5шт.

8

121412A1

FUSE,10A, Mini, Red

1шт.

9

121413A1

FUSE,15A, Mini, Blue

1шт.

10

121414A1

FUSE,20A, Mini, Yellow

1шт.

11

121415A1

FUSE,25A, Mini, Clear

1шт.

12

121416A1

FUSE,30A, Mini, Green

1шт.

13

87546828

HARNESS

Tractor Auxiliary Power, Inc. 16

1шт.

14

441483A1

TERMINAL CONNECTOR

Auxiliary Power

1шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

16

182064A1

CONNECTOR, ELEC

CONNECTOR Engine Harness

1шт.

17

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

2шт.

Выбрано товаров: 17
