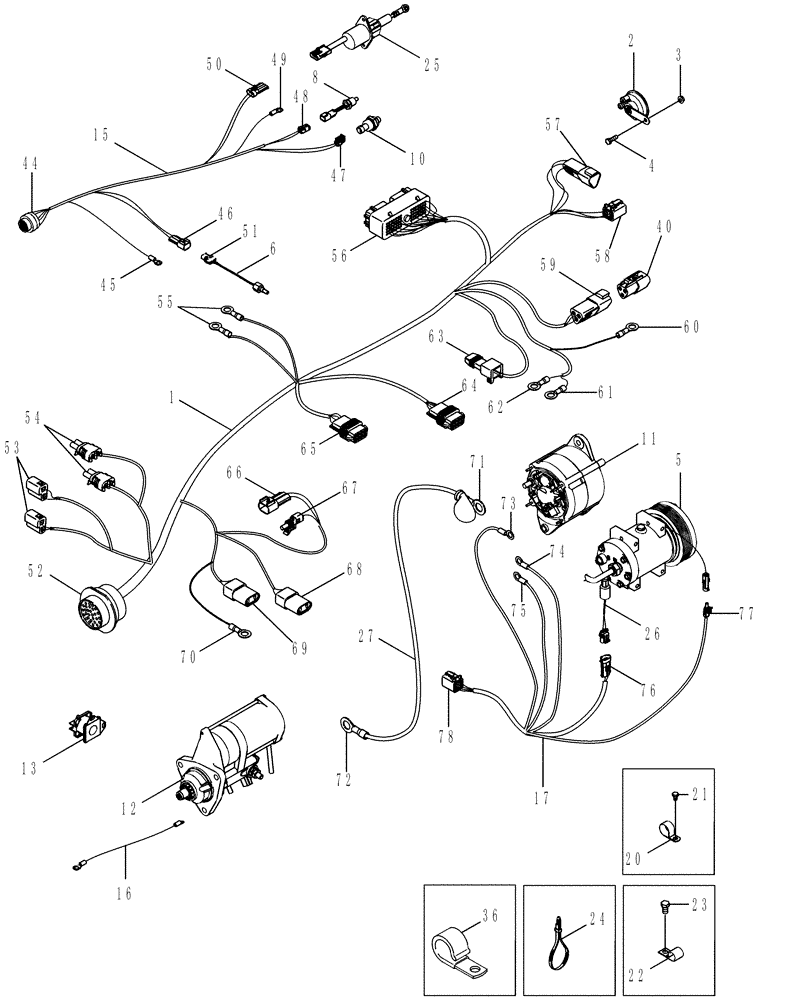

Запчасти Case IH MX215 (04-01[01]) - HARNESS - ENGINE (04) - ELECTRICAL SYSTEMS

1

87364306

HARNESS

Engine (Shown), Serial Range: -Z7RZ01521

1шт.

1

87544743

HARNESS

Engine, Inc. 40, Serial Range: Z7RZ01521-06/29/2008

1шт.

See Figure 04-01(02)

1шт.

1

87748971

HARNESS

Engine, Start Serial: 06/30/2008

1шт.

2

87714969

HORN

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

4

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

5

REF

INSTRUCTION

Compressor Assy

1шт.

See Figure 09-41

1шт.

6

194346A1

SENSOR

Air to Air Temperature

1шт.

8

87403454

TEMPERATURE SENDER,1/2" - 14

Coolant

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

1шт.

10

87568842

SENSOR

Oil Pressure

1шт.

11

REF

INSTRUCTION

ALTERNATOR ASSY

1шт.

See Figure 04-21

1шт.

12

REF

INSTRUCTION

STARTER ASSY

1шт.

See Figure 04-22

1шт.

13

REF

INSTRUCTION

SOLENOID

1шт.

See Figure 04-23

1шт.

15

86983668

HARNESS

Engine Adapter

1шт.

16

87527710

CABLE

Starter to Intermediate Start Relay

1шт.

17

87365490

HARNESS

Alternator/Air Conditioning Compressor, Serial Range: -Z7RZ01521

1шт.

17

87382529

HARNESS

Alternator/Air Conditioning Compressor, Start Serial: Z7RZ01521

1шт.

20

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

21

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

22

516-22190

CLAMP,J, 13/16" Insul, 3/8" Bolt

2шт.

23

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

24

291207C1

CLAMP

15 in

5шт.

25

REF

INSTRUCTION

SOLENOID, Fuel Shutoff

1шт.

See Figure 03-05

1шт.

26

284273A2

SWITCH, A/C HIGH PRE

High Pressure A/C

1шт.

27

87365491

CABLE

Alternator/Starter

1шт.

35

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

(Not shown)

2шт.

36

87313355

CLAMP,38.1mm, Coat, 8.7mm Bolt Hole, J Type

Harness On Water Bottle Bracket

1шт.

37

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

Mount Clip To Bracket, (Not Shown)

1шт.

38

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

Harness Lower Rear of Hvac Compressor, (Not Shown)

2шт.

39

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Top Right of Compressor, Not shown

1шт.

40

381414A1

TERMINAL CONNECTOR

Can Terminator

1шт.

41

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

Lower rear of Hvac compressor, (Not shown)

1шт.

42

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

Harness Top Right Of Compressor, (Not Shown)

1шт.

43

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

To Hold Start Relay, (Not Shown)

2шт.

44

87696948

MULTIPOLE CONNECTOR,Male, 29 Pole

Front-To Rear, 9-Pin, 334F

1шт.

45

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

CONNECTOR Intermediate Start Relay, 217F

1шт.

46

182068A1

CONNECTOR, ELEC

CONNECTOR Air-To-Air, 2-Pin, 75M

1шт.

47

198456A1

ELEC CONNECTOR,Female

Engine Oil Pressure, 3-Pin, 216M

1шт.

48

225316C1

ELEC CONNECTOR,Female, 2 Pin

Engine Coolant Temperature, 2-Pin, 215M

1шт.

49

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

CONNECTOR Chassis Ground, 198F

1шт.

50

411986A1

MULTIPOLE CONNECTOR,Female, 3 Pin

Fuel Shut Off Solenoid, 214M

1шт.

51

87679438

WIRE CONNECTOR,Female

Air-To Air, 2-Pin

1шт.

52

87426768

MULTIPOLE CONNECTOR,Male, 29 Pole

Engine-To-Chassis, 29-Pin, 333F

1шт.

53

877291R1

ELEC CONNECTOR,Female

Front And Rear Washer Pump, 2-Pin, 212M, 213M

2шт.

54

335461A1

CONNECTOR, ELEC

CONNECTOR Left And Right Brake Park Solenoid Switch, 2-Pin, 47M, 48M

2шт.

55

446658

TERMINAL CONNECTOR

Heater Relay Coil Low And High, 377F, 378F

2шт.

56

87421342

ELEC CONNECTOR

Electronic Engine Controller, 50-Pin, 256M

1шт.

57

225294C1

ELEC CONNECTOR,Male, 3 Pin

Axle Suspension, 3-Pin, 185F

1шт.

57

225295C1

ELEC CONNECTOR,Female, 3 Pin

Axle Suspension, 3-Pin, 185M

1шт.

58

87448363

WIRE CONNECTOR,Female

Engine Controller B+, 4-Pin, 204F

1шт.

59

225294C1

ELEC CONNECTOR,Male, 3 Pin

Can Terminator, 3-Pin, 205M

1шт.

60

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

CONNECTOR Ground

1шт.

61

200329

TERMINAL

CONNECTOR Start Terminal, 83F

1шт.

62

446658

TERMINAL CONNECTOR

Coil, 82F

1шт.

63

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Restriction Switch, 2-Pin, 76F

1шт.

64

409090A1

ELEC CONNECTOR,Male, 8 Pin

Power Distribution, 8-Pin, 108M

1шт.

65

409089A1

ELEC CONNECTOR,Male, 8 Pin

Power Distribution, 8-Pin, 7M

1шт.

66

182068A1

CONNECTOR, ELEC

CONNECTOR Headlight Harness, 2-Pin, 213F

1шт.

67

245480C1

ELEC CONNECTOR,1 Pin

Front Hitch Position, 1-Pin, 188M

1шт.

68

409086A1

ELEC CONNECTOR,Male, 2 Pin

Power Distribution, 2-Pin, 65M

1шт.

69

409084A1

ELEC CONNECTOR,Female, 2 Pin

Power Distribution, 2-Pin, 64M

1шт.

70

NSS

NOT SOLD SEPARAT

Ring Terminal For M8 Stud (Battery)

1шт.

71

NSS

NOT SOLD SEPARAT

Ring Terminal For 8mm Stud, Intermediate Relay

1шт.

72

NSS

NOT SOLD SEPARAT

Ring Terminal For 12mm Stud, Serial Range: -Z7RZ01521

1шт.

72

245480C1

ELEC CONNECTOR,1 Pin

1-Pin, Start Serial: Z7RZ01521

1шт.

73

86982786

ELEC. TERMINAL PIN,14 - 16 SAE

Gound, 199F

1шт.

74

NSS

NOT SOLD SEPARAT

Ring Terminal For M5 Stud With Yellow Boot, 86F

1шт.

75

NSS

NOT SOLD SEPARAT

Ring Terminal For M5 Stud With Green Boot, 85F

1шт.

76

292549A1

CONNECTOR, ELEC

CONNECTOR A/C High Pressure Switch, 2-Pin, 71F

1шт.

77

245480C1

ELEC CONNECTOR,1 Pin

A/C Clutch, 1-Pin, 72M

1шт.

78

225351C1

ELEC CONNECTOR,Female, 6 Pin

Engine Harness, 6-Pin, 395M, Serial Range: -Z7RZ01521

1шт.

78

87382919

WIRE CONNECTOR,Male, 6 Cavities

Engine Harness, 6-Pin, 395M, Start Serial: Z7RZ01521

1шт.
