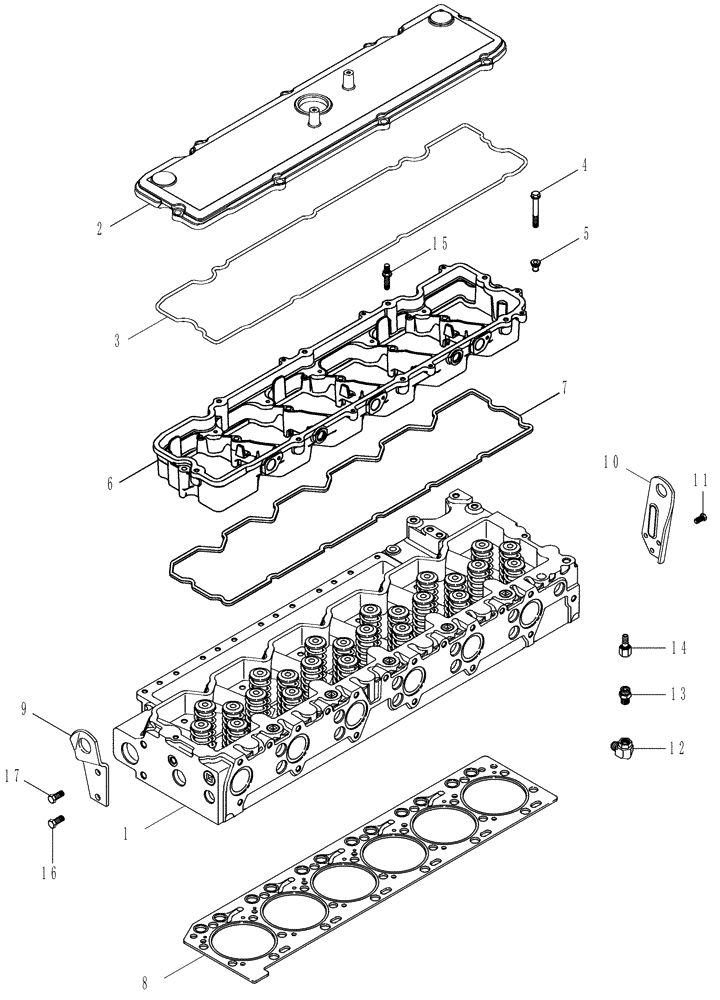

Запчасти Case IH MX215 (02-19) - CYLINDER HEAD - COVER (02) - ENGINE

1

REF

INSTRUCTION

HEAD, See Figure 02-21A

1шт.

2

87345871

VALVE COVER

1шт.

3

87345861

GASKET,3.2mm Thk

1шт.

4

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

7шт.

5

87342136

ISOLATOR

8шт.

6

84282765

HOUSING

Rocker

1шт.

7

87344755

GASKET

Rocker Lever Housing

1шт.

8

87737237

CYLINDER HEAD GASKET,1.81mm Thk

1шт.

9

87340305

LIFTING EYE

Rear

1шт.

10

87340301

LIFTING EYE

Front

1шт.

11

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

12

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

13

J911901

VALVE, CHECK

1шт.

14

J911925

COUPLING

1шт.

15

87340279

SCREW,Hex Flg, M8 x 1.25 x 35mm

1шт.

16

87340324

BOLT

1шт.

17

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.
