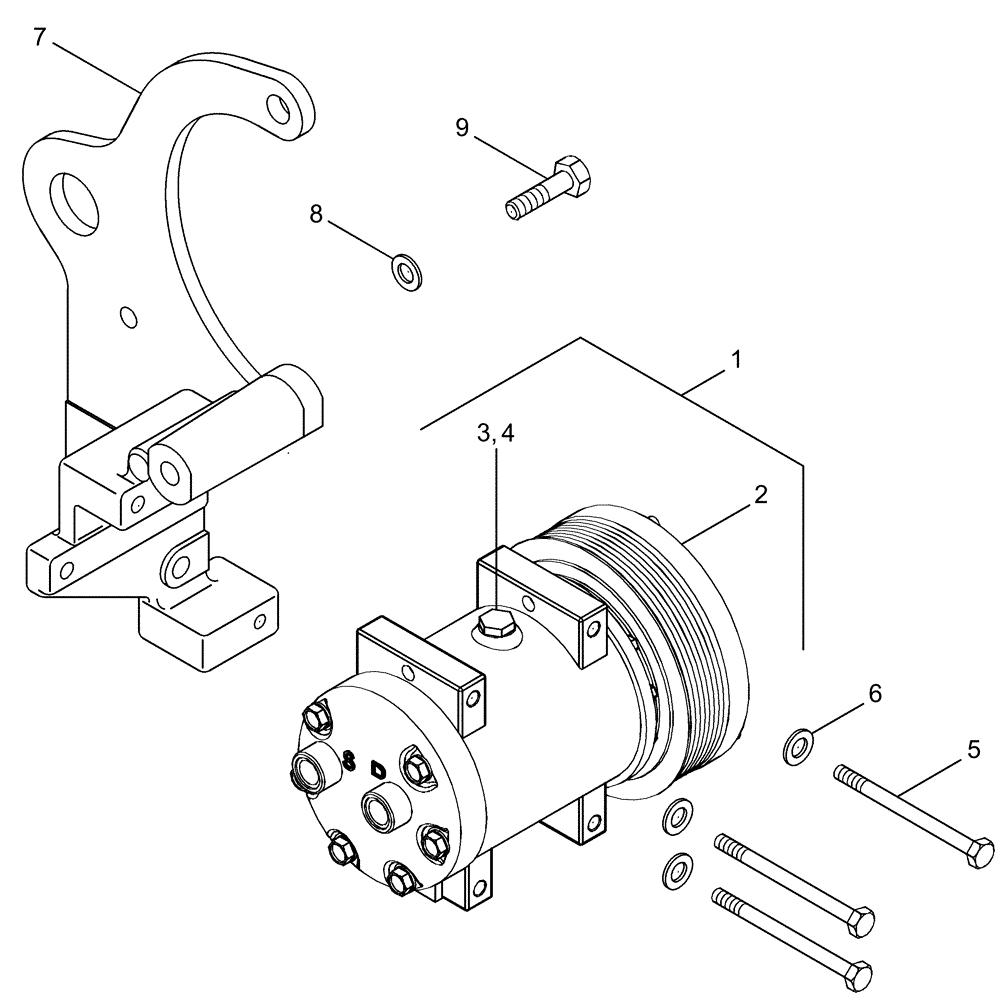

Запчасти Case IH MX215 (09-40) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

86993463

AIRCOND. COMPRESSOR

Inc. 2 - 4

1шт.

1

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

1

86993463R

REMAN-A/C COMPRESSOR

Inc.- 4 Cross Bolt Mounting Lugs, w/6 In. OD Pulley For 8 Rib Poly-V Belt

1шт.

1

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

403585A1

CLUTCH

1шт.

3

A49667

PLUG

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

5

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

3шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

84169068

SUPPORT

Alternator

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.
