Запчасти Case IH MX215 (06-26) - VALVE ASSEMBLY - TRANSMISSION CONTROL (450728A2) (06) - POWER TRAIN

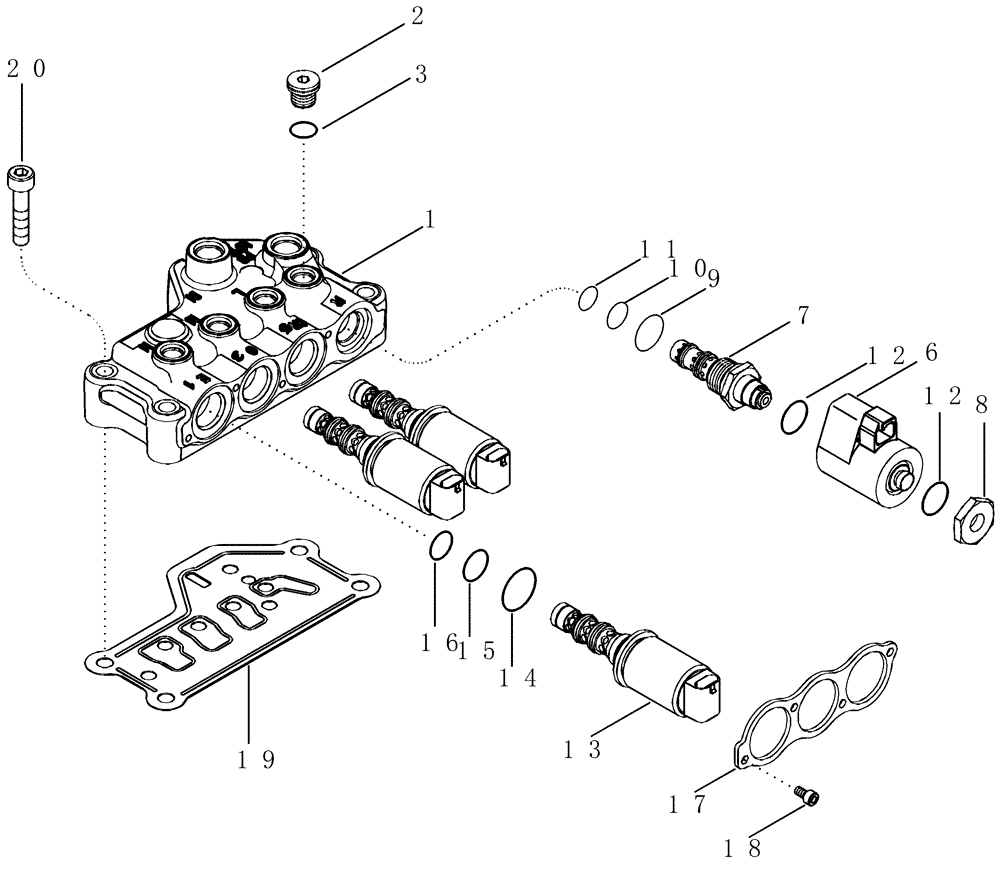

Схема запчастей Case IH MX215 - (06-26) - VALVE ASSEMBLY - TRANSMISSION CONTROL (450728A2) (06) - POWER TRAIN
11
10
16
3
12
8
13
18
1
7
15
6
17
19
14
20
12
9
2

Артикул

Название

Примечание

Количество

450728A2

VALVE

Inc. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Valve

1шт.

2

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 3

4шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

87675608

SOLENOID

Inc. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

COIL

1шт.

7

NSS

NOT SOLD SEPARAT

CARTRIDGE

1шт.

8

252462A2

NUT

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

11

256633A1

O-RING,1.24mm Thk x 12.9mm ID, Cl 5

12.9 ID x 1.24 mm

1шт.

12

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

13

87440439

SOLENOID VALVE

Inc. 14 - 16

3шт.

14

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.

15

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

16

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

1шт.

17

86985027

COVER

1шт.

18

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

4шт.

19

87399290

GASKET,0.92mm Thk

1шт.

20

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

4шт.

Выбрано товаров: 20
