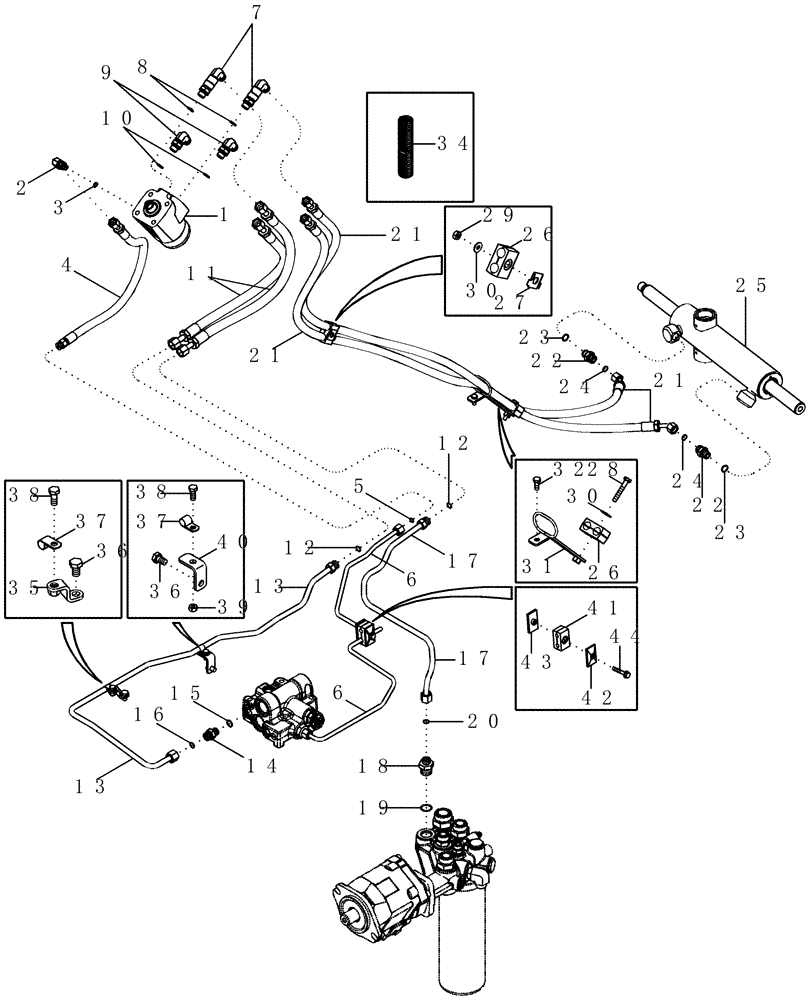

Запчасти Case IH MX210 (05-04) - STEERING SYSTEM - 2 WHEEL DRIVE, ASN JAZ126070 (05) - STEERING

1

404212A1

HYDROSTATIC PUMP

1шт.

396591A1

KIT

Seal, Steering Pump

1шт.

2

87401122

ELBOW

Inc. 3

1шт.

3

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

4

87401120

HOSE,9.5mm ID x 750mm L

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

6

451056A1

TUBE

, Serial Range: -AJB0355338

1шт.

6

87440642

TUBE,0.375" OD

, Start Serial: AJB0355338

1шт.

7

87401124

90 ELBOW

Inc. 8

1шт.

8

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

87401123

ELBOW

Inc. 10

2шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

87401117

HOSE,12.7mm ID x 622mm L

2шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

433591A1

TUBE

1шт.

14

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 15,16

1шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

437015A1

TUBE

, Serial Range: -AJB0355338

1шт.

17

87449707

TUBE,0.5" OD

, Start Serial: AJB0355338

1шт.

18

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl. 19,20

1шт.

19

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

87401118

HOSE,9.5mm ID x 1950mm L

2шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 23, 24

2шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

241936A2

STEERING CYLINDER,Double Acting, 31.75mm Rod, 246.38mm Stroke

1шт.

See Figure 05-05

1шт.

26

387161A1

CLAMP

2шт.

27

448560A1

RETAINING PLATE

1шт.

28

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

30

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

31

403534A2

BRACKET

1шт.

32

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

34

408412A1

CONDUIT

5шт.

35

86988840

BRACKET

1шт.

36

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

37

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

38

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

39

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

40

86988838

BRACKET

1шт.

41

1546024C1

CLAMP

1шт.

42

384870A1

PLATE

1шт.

43

384871A1

PLATE

1шт.

44

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.
