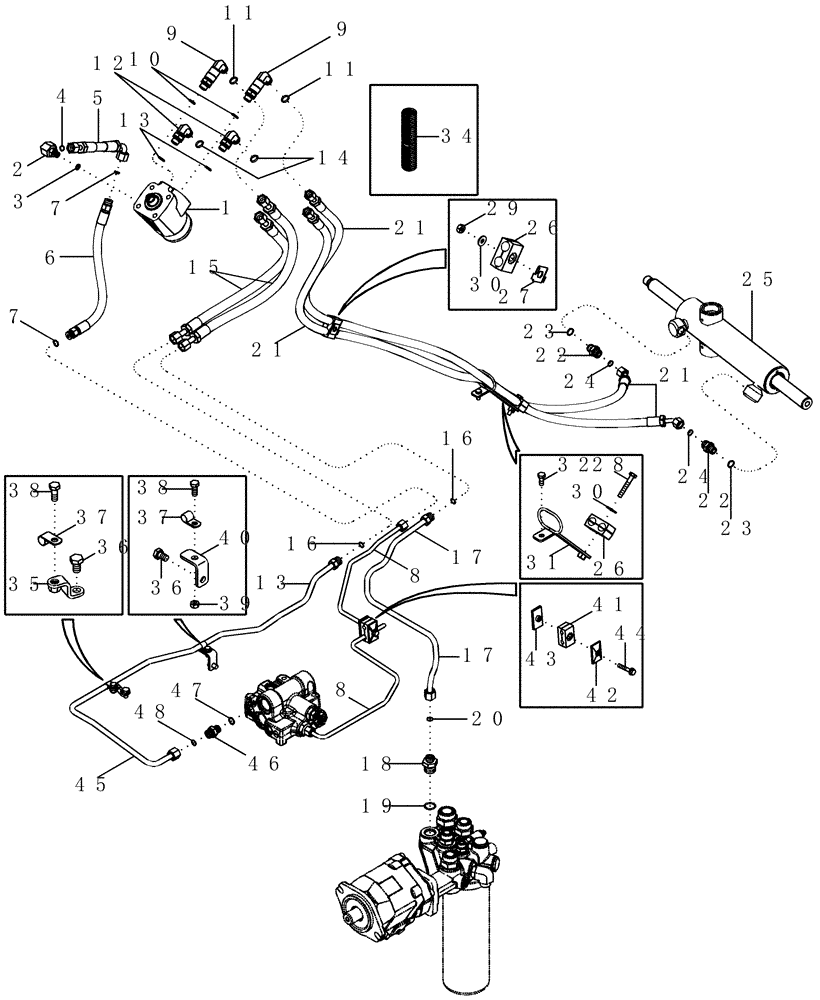

Запчасти Case IH MX210 (05-03) - STEERING SYSTEM - 2 WHEEL DRIVE, BSN JAZ126070 (05) - STEERING

1

404212A1

HYDROSTATIC PUMP

1шт.

396591A1

KIT

Seal, Steering Pump

1шт.

2

700-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

11/16 fc sl x 12 Or, Inc. 3, 4

1шт.

3

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

308247A1

HOSE,9.52mm ID x 180.7mm L

1шт.

6

308000A1

HOSE,9.52mm ID x 454mm L

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

8

451056A1

TUBE

1шт.

9

700-381

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 10, 11

2шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Inc. 13, 14

2шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

311852A1

HOSE,12.7mm ID x 622.1mm L

2шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

437015A1

TUBE

1шт.

18

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl. 19, 20

1шт.

19

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

419814A2

HOSE ASSY.,9.53mm ID x 1950mm L

2шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 23, 24

2шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

241936A2

STEERING CYLINDER,Double Acting, 31.75mm Rod, 246.38mm Stroke

1шт.

See Figure 05-05

1шт.

26

387161A1

CLAMP

2шт.

27

448560A1

RETAINING PLATE

1шт.

28

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

30

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

31

403534A2

BRACKET

1шт.

32

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

34

408412A1

CONDUIT

5шт.

35

86988840

BRACKET

1шт.

36

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

37

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

38

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

39

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

40

86988838

BRACKET

1шт.

41

1546024C1

CLAMP

1шт.

42

384870A1

PLATE

1шт.

43

384871A1

PLATE

1шт.

44

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

45

433591A1

TUBE

1шт.

46

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 47, 48

1шт.

47

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
