Запчасти Case IH MX210 (04-36) - RADIOS, SPEAKERS AND ANTENNAS (04) - ELECTRICAL SYSTEMS

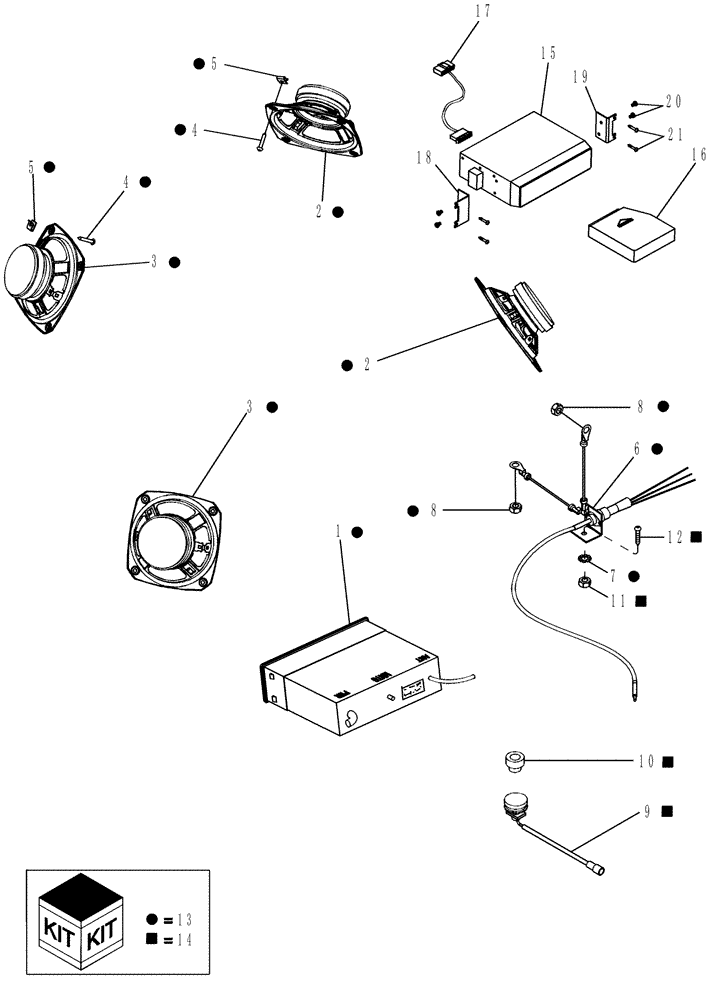

Схема запчастей Case IH MX210 - (04-36) - RADIOS, SPEAKERS AND ANTENNAS (04) - ELECTRICAL SYSTEMS
16
13
9
2
13
17
13
14
14
4
5
13
8
21
10
15
13
13
20
8
1
13
14
5
14
14
4
6
19
13
14
12
13
7
13
13
13
13
2
13
3
3
13
18
11

Артикул

Название

Примечание

Количество

1

87714993

RADIO

AM/FM/WB, If Equipped

1шт.

1

355623A2

RADIO

AM/FM Stereo, With Cassette Tape Player, If Equipped

1шт.

1

325061A2

RADIO

AM/FM/WB,CSS/Changer Ready

1шт.

2

87621241

SPEAKER

5-1/4 in Coaxial

2шт.

3

87576280

SPEAKER

5-1/4 in Woofer, Rear

2шт.

4

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

16шт.

5

177269A1

SPRING NUT,M4.2

16шт.

6

409426A3

ANTENNA,AM/FM/WB 3 Wire

3-Wire

1шт.

7

893-11008

LOCK WASHER,Ext Tooth, M8

Antenna Bracket

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Ground Wire

2шт.

9

404694A2

CABLE

Business Band Radio Antenna, If Equipped

1шт.

10

182045A1

GROMMET

1шт.

11

177269A1

SPRING NUT,M4.2

8шт.

12

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

13

719626006

DIA KIT, TRACTOR

AM/FM/WB Radio, Inc. 1 - 8

1шт.

14

719609016

DIA KIT, TRACTOR

Business Band Radio Antenna Cable, Inc. 9 - 12

1шт.

15

317688A1

COMPACT DISC PLAYER

6-Disc, Inc, 16

1шт.

16

317691A1

MAGAZINE

1шт.

17

303433A1

HARNESS

CD, Serial Range: Player-Radio

1шт.

18

355299A2

BRACKET

Left Hand

1шт.

19

355298A2

BRACKET

Right Hand

1шт.

20

543-702

SCREW,Phil Flat Hd, M5 x 10, 4.8

M5 x 10

4шт.

21

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

4шт.

Выбрано товаров: 23
