Запчасти Case IH MX210 (04-33) - LAMPS - REAR FENDER AND REMOTE HITCH SWITCH (04) - ELECTRICAL SYSTEMS

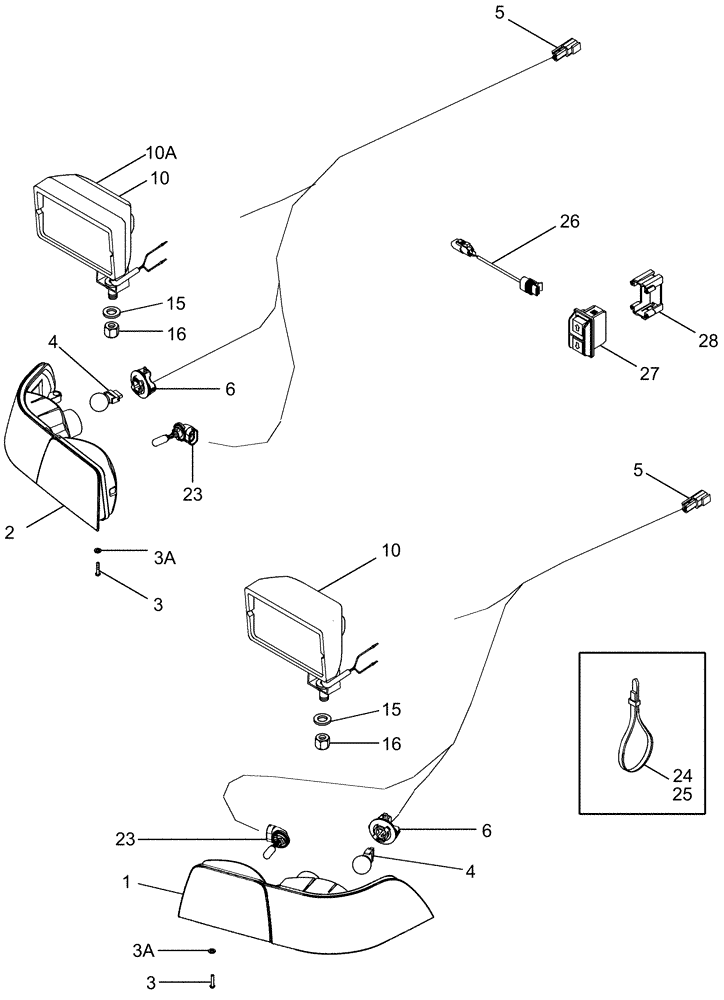

Схема запчастей Case IH MX210 - (04-33) - LAMPS - REAR FENDER AND REMOTE HITCH SWITCH (04) - ELECTRICAL SYSTEMS
1
25
4
10a
27
10
10
4
23
5
3a
3
15
15
3a
24
3
6
5
16
23
26
2
28
6
16

Артикул

Название

Примечание

Количество

1

357540A1

TAIL LAMP

Right Hand, Combination

1шт.

2

357541A1

TAIL LAMP

Left Hand, Combination

1шт.

3

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

4.8

6шт.

3a

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6шт.

4

279916A1

BULB

2шт.

5

86991727

HARNESS

2шт.

6

87517414

LAMP SOCKET

2шт.

10

431025A1

WORK LAMP,Halogen, 12V, 55W, Clear

Work Lamp, Right and Left Hand Without HID, Right Hand Only With HID

1-2шт.

See Figure 04-34

1шт.

10a

447501A2

WORK LAMP

HID Work Lamp, Left Hand Only

1шт.

See Figure 04-34

1шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

16

832-46412

NUT,M12 x 1.75, Cl 8

M12; 8

2шт.

23

323094A1

BULB

894-12V

1шт.

24

347610A1

ANCHOR

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7 in

1шт.

26

86994387

WIRE HARNESS

Hitch Switch Extension

2шт.

27

220415A2

SWITCH ASSY

Hitch, Remote Control

2шт.

28

220416A2

CLAMP

Hitch Switch Retainer

2шт.

Выбрано товаров: 19
