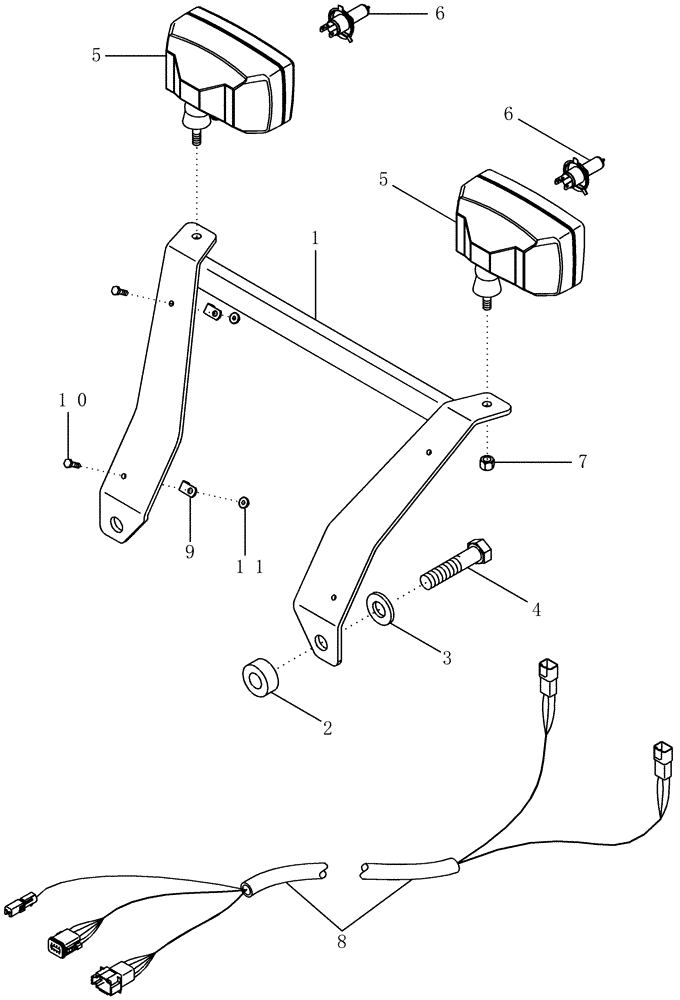

Запчасти Case IH MX210 (04-28) - HEADLAMPS - AUXILIARY (04) - ELECTRICAL SYSTEMS

1

87403780

BRACKET

1шт.

2

87403935

SPACER

2шт.

3

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5mm

2шт.

4

258504A1

BOLT

M20 x 90; 10.9

2шт.

5

87403654

HEADLAMP,Halogen, 12V, 55W, Clear

Left Hand Dip, Inc. 6, 7, Optional With 87403655

2шт.

5

87403655

HEADLAMP,Halogen, 12V, 55W, Clear

Right Hand Dip, Inc. 6, 7, Optional With 87403654

2шт.

6

87283179

BULB,H4, 12V, 60/55W

H4

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

86984514

HARNESS

Front Hitch Headlight

1шт.

9

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

(7.9 mm)

4шт.

10

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

11

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.
