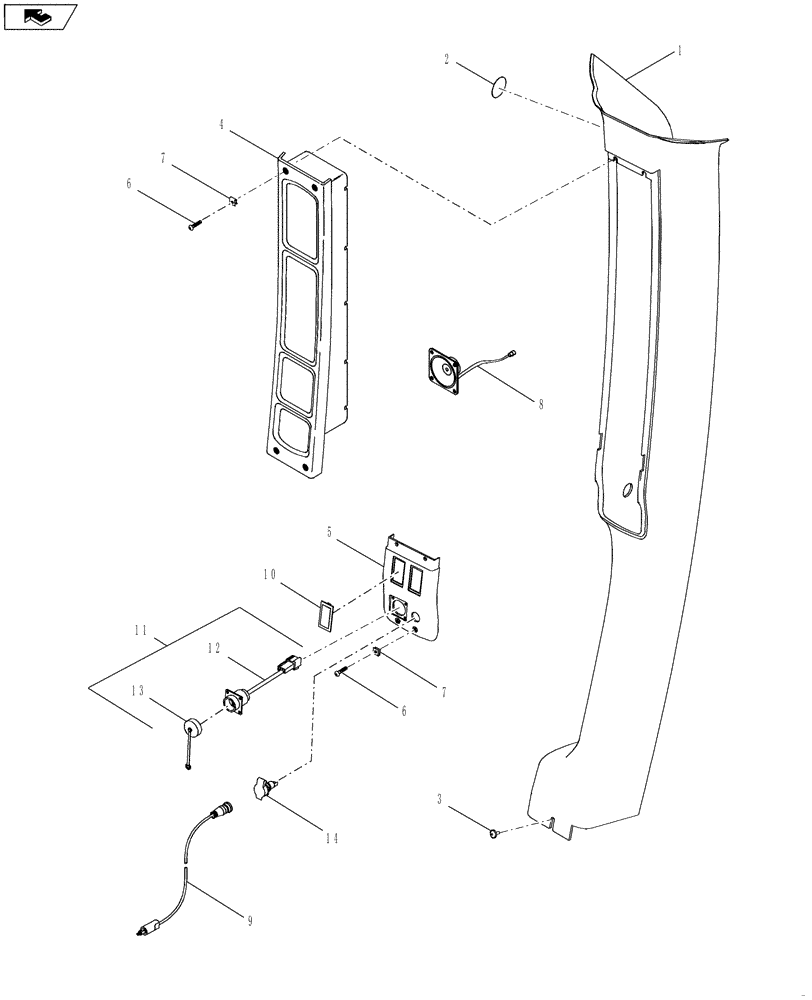

Запчасти Case IH MX210 (04-13) - A-POST COVER - INSTRUMENT CLUSTER, ASN JAZ137282 (04) - ELECTRICAL SYSTEMS

1

444547A1

TRIM PANEL

1шт.

2

376597A2

DECAL

2шт.

3

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

1шт.

4

87350682

MODULE

Standard, Without Software, Inc. REF 8

1шт.

4

87549279R

REMAN-MODULE

Standard

1шт.

4

87549279C

CORE-MODULE

Return Number

1шт.

4

87350683

INSTRUMENT PANEL,Case IH, Deluxe

Deluxe, Without Software, Inc. REF 8

1шт.

4

87350683R

REMAN-ELECT MONITOR

REMAN-MONITOR MX210, MX230, MX255, MX285, All Aft. SN JAZ137282

1шт.

4

87350683C

CORE

Return Number

1шт.

5

358804A1

BEZEL

1шт.

6

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

7

177269A1

SPRING NUT,M4.2

6шт.

8

87335023

SPEAKER

1шт.

9

324847A2

HARNESS

Monitor

1шт.

10

245918C1

LENS

Blanking rocker switch

2шт.

11

227739A2

POWER SOCKET

Auxiliary Power, Inc. 12, 13

1шт.

12

225164C1

ELEC CONNECTOR

1шт.

13

225162C1

PLUG

Dust

1шт.

14

300655A1

POWER SOCKET

1шт.
