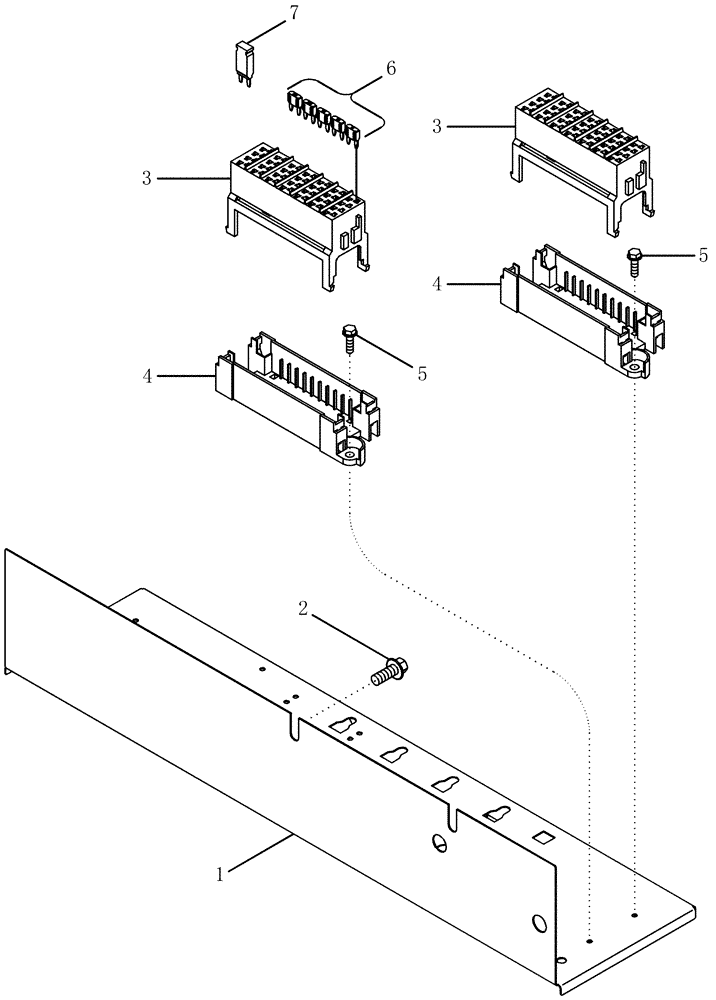

Запчасти Case IH MX210 (04-11) - ELECTRICAL COMPONENT MOUNTING - FUSES (04) - ELECTRICAL SYSTEMS

1

399428A5

PANEL

1шт.

2

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

3шт.

3

144421A1

CONNECTING BLOCK

2шт.

4

194319A1

FUSE

2шт.

5

780-34319

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 19

2шт.

6

121410A1

FUSE,5A, Mini, Tan

1шт.

6

121412A1

FUSE,10A, Mini, Red

1шт.

6

121413A1

FUSE,15A, Mini, Blue

1шт.

6

121414A1

FUSE,20A, Mini, Yellow

1шт.

6

121416A1

FUSE,30A, Mini, Green

1шт.

7

139719A1

CIRCUIT BREAKER,15 Amp, Mini

1шт.
