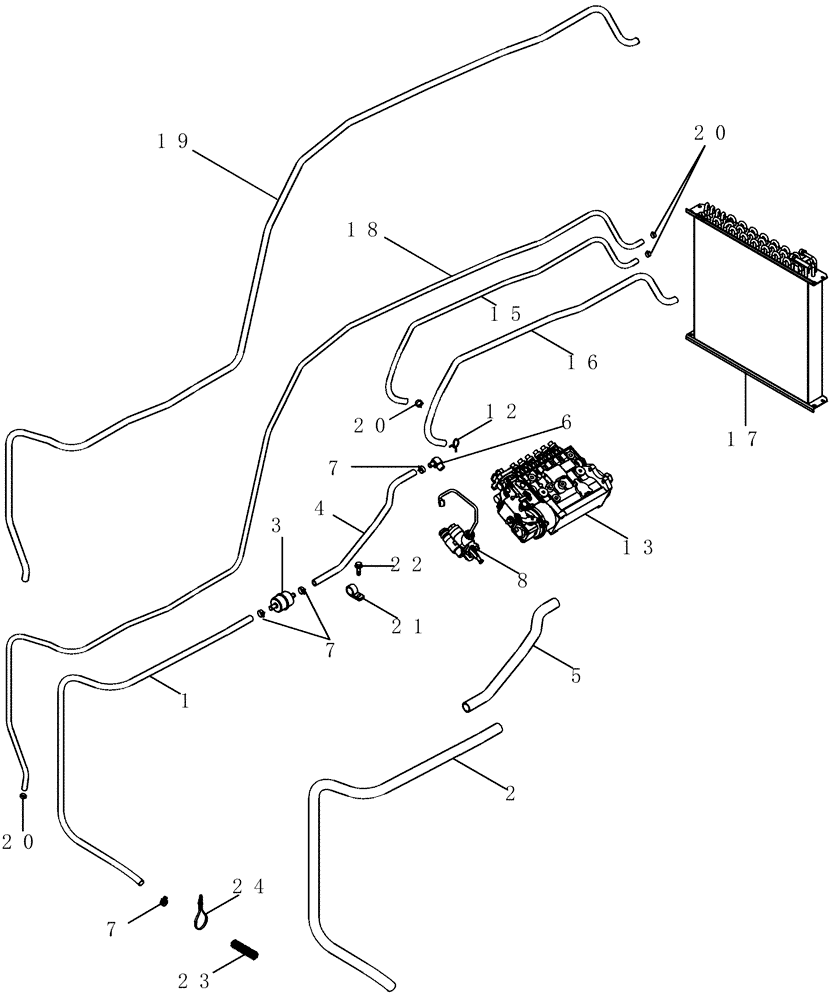

Запчасти Case IH MX210 (03-21) - FUEL LINES WITH INLINE FILTER, MX210 AND MX230 (03) - FUEL SYSTEM

1

87404609

HOSE

1380 mm (54-11/32 in)

1шт.

2

87404610

CONDUIT

1310 mm (51-9/16 in)

1шт.

3

194199A1

FUEL FILTER

1шт.

4

87404617

HOSE

960 mm (37-3/16 in)

1шт.

5

87404618

CONDUIT

885 mm (34-27/32 in)

1шт.

6

197095A1

ELBOW

1шт.

7

214-1408

HOSE CLAMP,11.2mm - 19.8mm

4шт.

8

REF

INSTRUCTION

Pump

1шт.

See Figure 03-04

1шт.

12

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

1шт.

13

REF

INSTRUCTION

Pump, Injection

1шт.

See Figure 03-07

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE, 1215 mm (48 in), Cut From 194882A1

1шт.

16

87414517

CONDUIT

1145 mm (45 in), Cut From 291262A2

1шт.

17

REF

INSTRUCTION

Cooler

1шт.

See Figure 09-42

1шт.

18

284736A2

HOSE,9.53 mm ID x 4000.0 mm , SAE 30R7

1шт.

19

363250A1

CONDUIT

1шт.

20

1348264C1

HOSE CLAMP

3/8 ID

4шт.

21

229357A1

CLAMP

1шт.

22

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

1шт.

23

87435416

SPRING

Fuel Hose Guard, Start Serial: JAZ129998

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP, Start Serial: JAZ129998

1шт.
