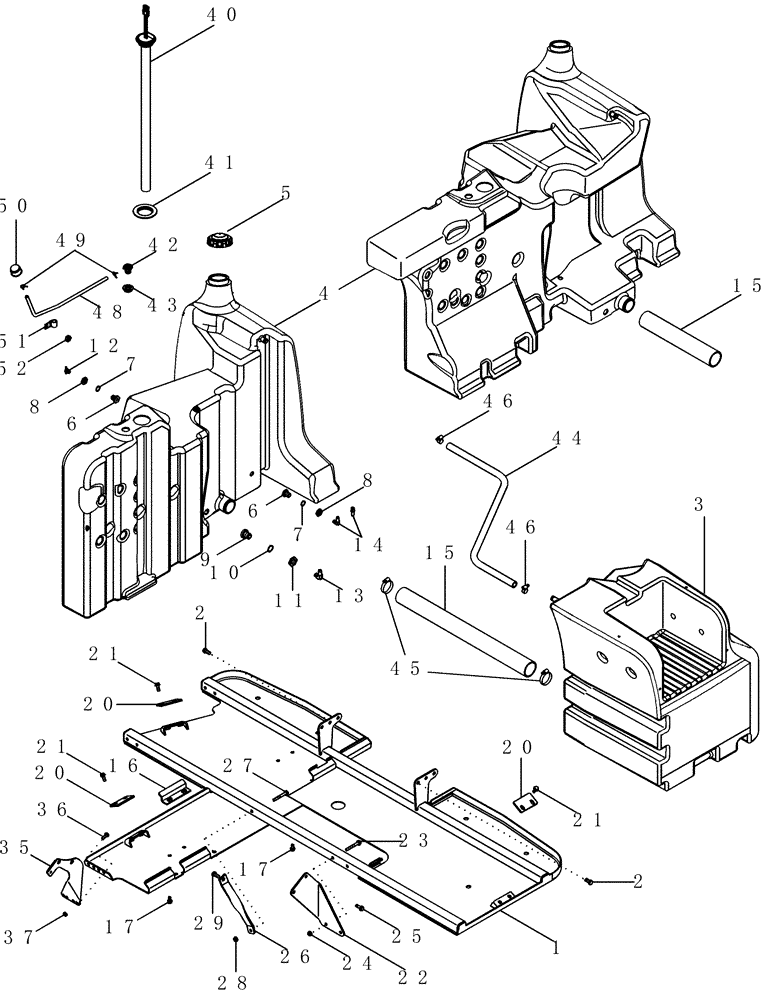

Запчасти Case IH MX210 (03-20) - FUEL TANKS (03) - FUEL SYSTEM

1

363279A3

SUPPORT

1шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

3

255028A4

TANK

Fuel, Right Hand, 275 L (73 gal)

1шт.

4

255029A4

FUEL TANK

Left Hand, 235 L (62 gal), Inc. 5 - 14

1шт.

4

231242A7

FUEL TANK

Left Hand, 325 L (86 gal), Inc. 5 - 14

1шт.

5

257349A1

FILLER CAP

1шт.

6

1251790C2

FITTING

2шт.

7

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

8

1251791C1

JAM NUT,3/4" - 16 LH Thread

1шт.

9

282708A1

FITTING

1шт.

10

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

11

282709A1

NUT

1шт.

12

217-103

COCK, DRAIN

1/4" PT

1шт.

13

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

14

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

90 3/8 barb x 1/4 PT

1шт.

235 L (62 gal) Fuel Tank

1шт.

14

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

3/8 x 1/4 in

1шт.

325 L (86 gal) Fuel Tank

1шт.

15

283035A1

RADIATOR HOSE,63.50 mm ID x 802.00 mm, SAE 30R6or SAE 30R7

1шт.

235 L (62 gal) Fuel Tank

1шт.

15

275798A1

FUEL HOSE,63.50 mm ID x 437.00 mm, SAE 30R6 or SAE 30R7

1шт.

325 L (86 gal) Fuel Tank

1шт.

16

315832A1

ANGLE

2шт.

235 L (62 gal) Fuel Tank

1шт.

17

905-10020

BOLT,Hex Flg, M10 x 20mm

2шт.

20

243779A4

LARGE PLATE

PLATE, LARGE

3шт.

21

555-5

BOLT,Hvy Hex, M10 x 25mm, Cl 8.8

M10 x 25; 8,8

6шт.

22

295340A1

SUPPORT

1шт.

23

857-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

M10 x 70; 10.9

2шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

25

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

26

258942A1

SECURING STRAP

1шт.

27

857-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

M10 x 70; 10.9

1шт.

28

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

29

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

35

301790A3

BRACKET

1шт.

36

514-745

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

M10 x 20; 8,8

2шт.

37

829-1510

NUT,M10, Cl 10

2шт.

40

87366602

FUEL GAUGE

Fuel Level

1шт.

41

255095A1

GROMMET

1шт.

42

275800A1

VALVE STEM

1шт.

43

255094A1

GROMMET

1шт.

44

275799A2

FUEL HOSE,19.05 mm ID x 1170.00 mm, SAE 30R6 or SAE 30R7

1шт.

45

214-3248

HOSE CLAMP,57mm - 79mm

2шт.

46

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

48

275801A1

FUEL HOSE

1шт.

49

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

50

316078A2

BREATHER

1шт.

51

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

52

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.
