Запчасти Case IH MX210 (02-38) - KIT ENGINE OVERHAUL, MX210 AND MX230 (02) - ENGINE

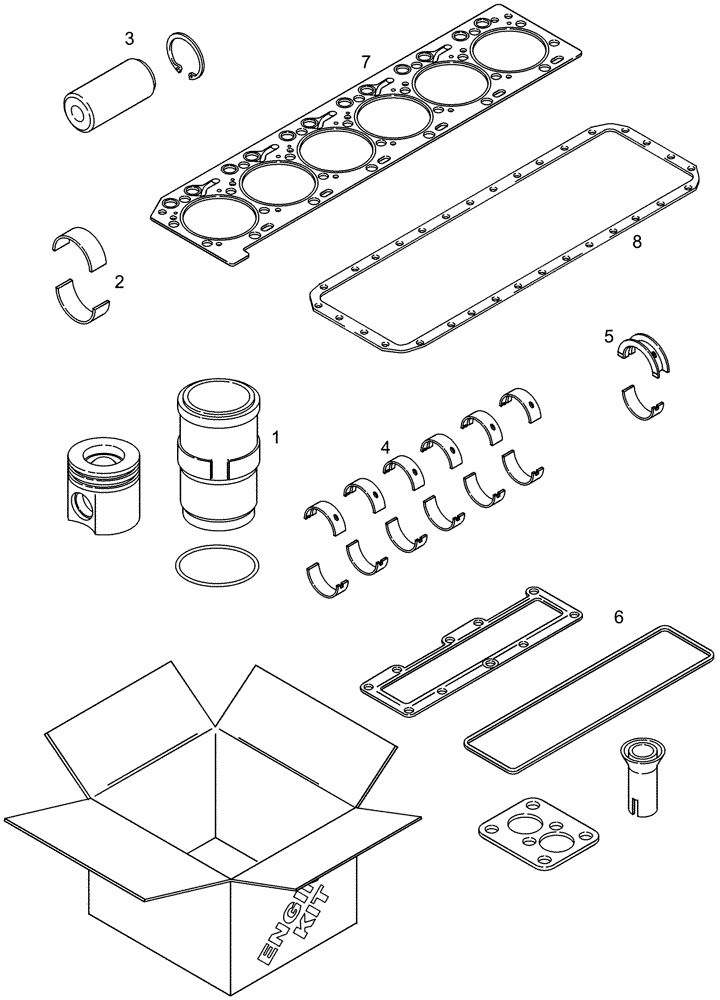

Схема запчастей Case IH MX210 - (02-38) - KIT ENGINE OVERHAUL, MX210 AND MX230 (02) - ENGINE
2
6
1
5
3
4
7
8

Артикул

Название

Примечание

Количество

A78039

ENGINE OVERHAUL KIT

Inc. 1 - 8

1шт.

1

A78038

KIT

6шт.

See Figure 02-42

1шт.

2

A77563

BEARING SET

Connecting Rod, Standard

6шт.

See Figure 02-42

1шт.

3

J934046

PISTON PIN,45mm OD x 91mm L

Piston

6шт.

See Figure 02-42

1шт.

4

J945930

BEARING SET

Standard

6шт.

See Figure 02-40

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-40

1шт.

6

A78042

KIT

Valve Grind

1шт.

See Figure 02-44

1шт.

7

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

8

A77999

GASKET KIT

Oil Pan

1шт.

See Figure 02-25

1шт.

Выбрано товаров: 16
