Запчасти Case IH MX210 (02-32) - CRANKCASE, BREATHER, MX210 AND MX230, BSN JAZ132841 (02) - ENGINE

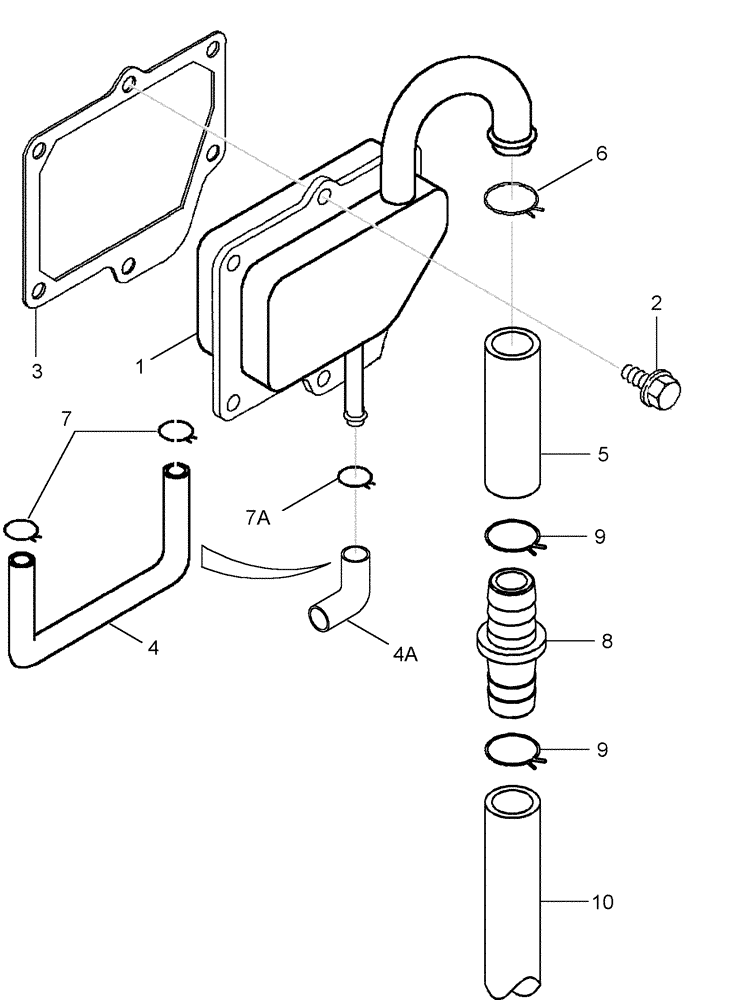

Схема запчастей Case IH MX210 - (02-32) - CRANKCASE, BREATHER, MX210 AND MX230, BSN JAZ132841 (02) - ENGINE
3
9
6
2
9
7a
4
7
8
5
10
1
4a

Артикул

Название

Примечание

Количество

1

J937652

BREATHER

, Serial Range: -46325445

1шт.

Order 87437062. Also Order 87436828, 87437060, 214-1314, 87437056 and 86625099 for Initial Replacement

1шт.

1

87437062

BREATHER

, Start Serial: 46325445

1шт.

2

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

, Serial Range: -46325445

6шт.

2

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10.9, Start Serial: 46325445

6шт.

3

J944683

GASKET

, Serial Range: -46325445

1шт.

3

87436828

GASKET

, Start Serial: 46325445

1шт.

4

J948068

HOSE,66.50 mm, SAE 30R7

, Serial Range: -46325445

1шт.

4a

87437060

HOSE

, Start Serial: 46325445

1шт.

5

J944713

HOSE,100.00 mm

1шт.

6

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

, Serial Range: -46325445

1шт.

6

214-1315

HOSE CLAMP,#15, 15/16", Spring

, Start Serial: 46325445

1шт.

7

214-1310

HOSE CLAMP,#10, 5/8", Spring

, Serial Range: -46325445

2шт.

7a

214-1314

HOSE CLAMP,#14, 7/8", Spring

, Start Serial: 46325445

1шт.

8

1301342C1

FITTING

1шт.

9

214-1315

HOSE CLAMP,#15, 15/16", Spring

2шт.

10

414360A1

HOSE

750 mm (29-1/2 in)

1шт.

Выбрано товаров: 17
