Запчасти Case IH MX210 (09-48) - AIR CONDITIONING - DUCTS (09) - CHASSIS/ATTACHMENTS

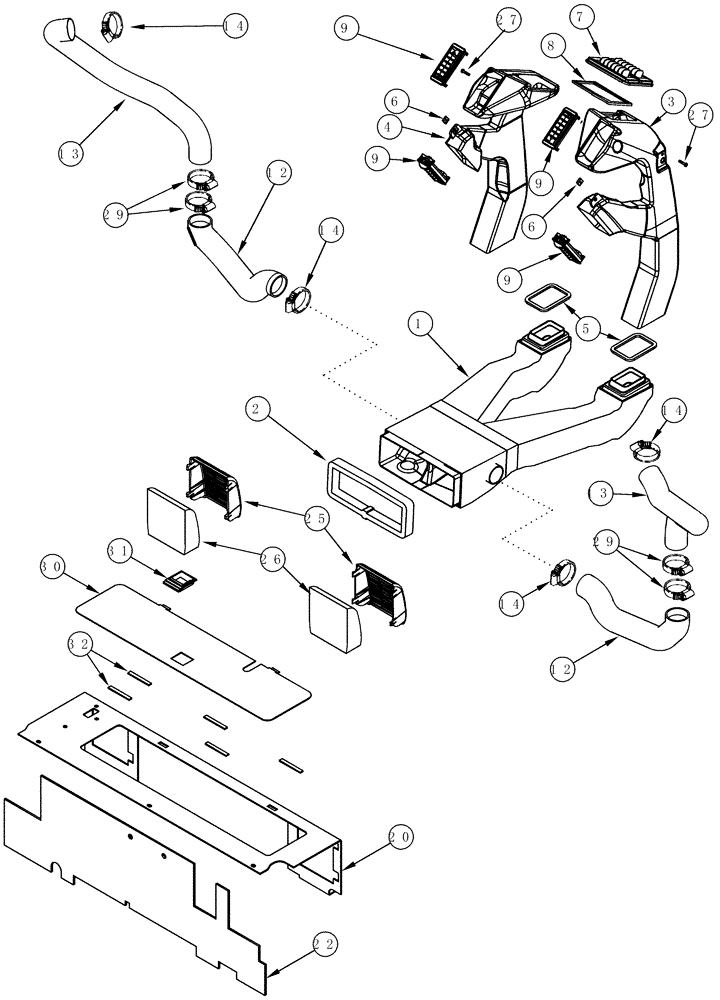

Схема запчастей Case IH MX210 - (09-48) - AIR CONDITIONING - DUCTS (09) - CHASSIS/ATTACHMENTS
14
9
31
12
7
12
27
25
6
2
32
8
5
29
9
3
30
14
13
13
27
14
9
29
6
9
4
26
14
22
20
1

Артикул

Название

Примечание

Количество

1

330276A3

DUCT

Inc. 2, Serial Range: -JAZ133183

1шт.

1

87444943

DUCT

Inc. 2, Start Serial: JAZ133183

1шт.

2

326665A1

SEALING STRIP,51mm W x 889mm L x 8mm Thk

1шт.

3

417742A1

DUCT

Right Hand, Inc. 6

1шт.

4

281095A4

DUCT

Left Hand, Inc. 6

1шт.

5

257098A1

FOAM INSULATION

2шт.

6

87016569

SPRING NUT,U, #10-16, Panel type

2шт.

7

363930A1

DIFFUSER

2шт.

8

281084A2

GASKET

1шт.

9

363881A1

VENT

, Serial Range: -JAZ132559

4шт.

9

363931A1

VENT

, Start Serial: JAZ132559

4шт.

12

256331A2

HOSE

Right Hand and Left Hand, Serial Range: -JAZ133183

2шт.

12

256331A2

HOSE

Left Hand, Start Serial: JAZ133183

1шт.

13

303732A1

TUBE

Right Hand and Left Hand, Serial Range: -JAZ133183

2шт.

13

303732A1

TUBE

Left Hand, Start Serial: JAZ133183

1шт.

14

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

, Serial Range: -JAZ133183

4шт.

14

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

, Start Serial: JAZ133183

2шт.

20

87404728

EXTENSION

1шт.

21

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

5шт.

22

86984088

FOAM INSULATION

1шт.

24

780-34395

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 9.5

5шт.

25

301180A3

VENT (AIR)

2шт.

26

293615A1

FILTER

2шт.

27

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

2шт.

29

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

, Serial Range: -JAZ133183

4шт.

29

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

, Start Serial: JAZ133183

2шт.

86984827

COVER

Inc. 30 - 32, Serial Range: -JAZ133008

1шт.

87442171

COVER

Inc. 30 - 32, Start Serial: JAZ133008

1шт.

30

86984822

COVER

, Serial Range: -JAZ133008

1шт.

30

87442170

COVER

, Start Serial: JAZ133008

1шт.

31

406718A1

LATCH

1шт.

32

412425A1

SEAL

5шт.

Выбрано товаров: 32
