Запчасти Case IH MX210 (09-46) - AIR CONDITIONING - CLIMATE CONTROL UNIT, WITH AUTO TEMP CONTROL (09) - CHASSIS/ATTACHMENTS

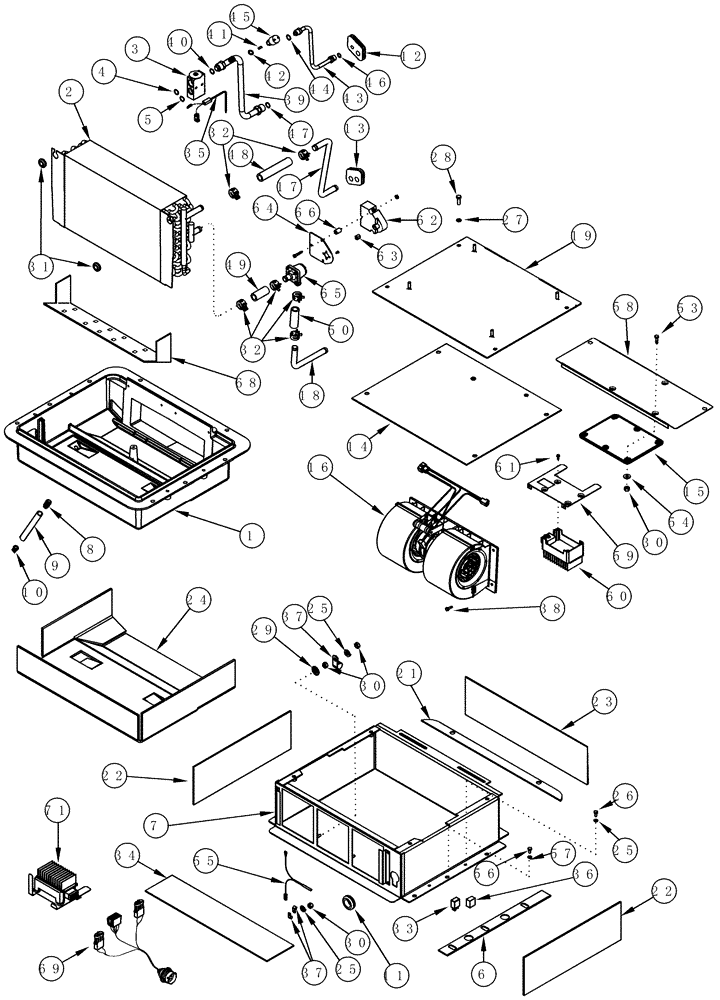

Схема запчастей Case IH MX210 - (09-46) - AIR CONDITIONING - CLIMATE CONTROL UNIT, WITH AUTO TEMP CONTROL (09) - CHASSIS/ATTACHMENTS
34
71
62
66
26
43
25
22
30
38
55
37
24
47
8
45
49
46
60
2
30
44
22
41
61
30
13
1
17
18
31
50
29
40
32
39
64
65
69
14
9
12
57
48
28
10
59
27
16
36
21
15
25
3
56
5
32
11
25
42
68
37
6
4
33
63
54
19
7
23
58
53
35

Артикул

Название

Примечание

Количество

1

322996A1

BOX

1шт.

2

86990263

CORE

Evaporator And Heater, Inc. 3 - 5

1шт.

3

386535A1

VALVE

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

5

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

6

322994A1

GASKET,3mm Thk

4шт.

7

427242A1

BOX

1шт.

8

1250522C3

FITTING

2шт.

9

1977334C1

HOSE

610 mm (24-1/8 in), Cut From 198091C1

2шт.

10

109239C2

CHECK VALVE

2шт.

11

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1 ID

1шт.

12

322989A1

GROMMET

1шт.

13

322990A1

GROMMET

1шт.

14

87324951

GASKET,3mm Thk

1шт.

15

87429902

CONTROL

1шт.

87429902R

REMAN-MODULE

MX210, MX230, MX255, MX285

1шт.

87429902C

CORE-MODULE

Return Number

1шт.

16

323610A1

BLOWER

1шт.

84222524R

REMAN-BLOWER

MX210, MX230, MX255, MX285, Reman for New P/N 323610A1

1шт.

84222524C

CORE-BLOWER

Return Number

1шт.

17

322985A1

HEATER TUBE

Outlet

1шт.

18

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

Inlet

1шт.

19

323625A1

TOP COVER

1шт.

21

322995A1

GASKET,3mm Thk

4шт.

22

322993A1

GASKET

2шт.

23

322991A1

GASKET

1шт.

24

324484A1

INSULATOR

1шт.

25

892-11006

LOCK WASHER,M6

10шт.

26

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

27

892-11008

LOCK WASHER,8mm ID

4шт.

29

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

30

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

6шт.

31

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

32

1954736C1

HOSE CLAMP,#24

6шт.

33

87414866

RELAY,12V, 20A

20 Amp

1шт.

34

327306A1

GASKET

1шт.

35

323016A1

SENSOR

1шт.

36

397704A1

WIRE HARNESS

1шт.

37

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

3/8

2шт.

38

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

39

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

Inc. 40 - 42

1шт.

40

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

41

1250594C2

CORE

1шт.

42

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

43

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

Inc. 44

1шт.

44

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

45

284272A3

SWITCH, A/C LOW PRES

1шт.

46

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

47

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

48

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Cut From 97252CX

1шт.

49

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

Cut from 97252CX

1шт.

50

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Cut from 97252CX

1шт.

53

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

54

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

55

323016A1

SENSOR

Return Air

1шт.

56

781-24825

SELF-TAP SCREW,Hex Flg Hd, M8 x 25

M8 x 25

8шт.

57

892-11008

LOCK WASHER,8mm ID

8шт.

58

397702A1

BRACKET

1шт.

397780A1

ECU

Inc. 59 - 61

1шт.

397780A1R

REMAN ELECT CONTROL

MX210, MX230, MX255, MX285, All CASE IH MAGNUM TRACTOR (NORTH AMERICA)

1шт.

397780A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

59

397703A1

BRACKET

1шт.

60

393289A1

ECU

1шт.

60

393289A1R

REMAN ELECT CONTROL

MX210, MX230, MX255, MX285, All CASE IH MAGNUM TRACTOR (NORTH AMERICA)

1шт.

60

393289A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

61

280-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

No 8 x 1/2

4шт.

427356A1

CONTROL VALVE

Inc. 62 - 66

1шт.

62

275602A1

ACTUATOR

1шт.

63

427360A1

INSERT

1шт.

64

427353A1

PLATE

1шт.

65

427352A1

VALVE

1шт.

66

427354A1

SPACER

3шт.

68

86990266

BAFFLE

1шт.

69

86990663

HARNESS

1шт.

70

394957A1

KIT

ATC Capacitor Filter (Not Shown)

1шт.

71

398101A1

KIT

ATC Filter Linear Driver

1шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

Выбрано товаров: 77
