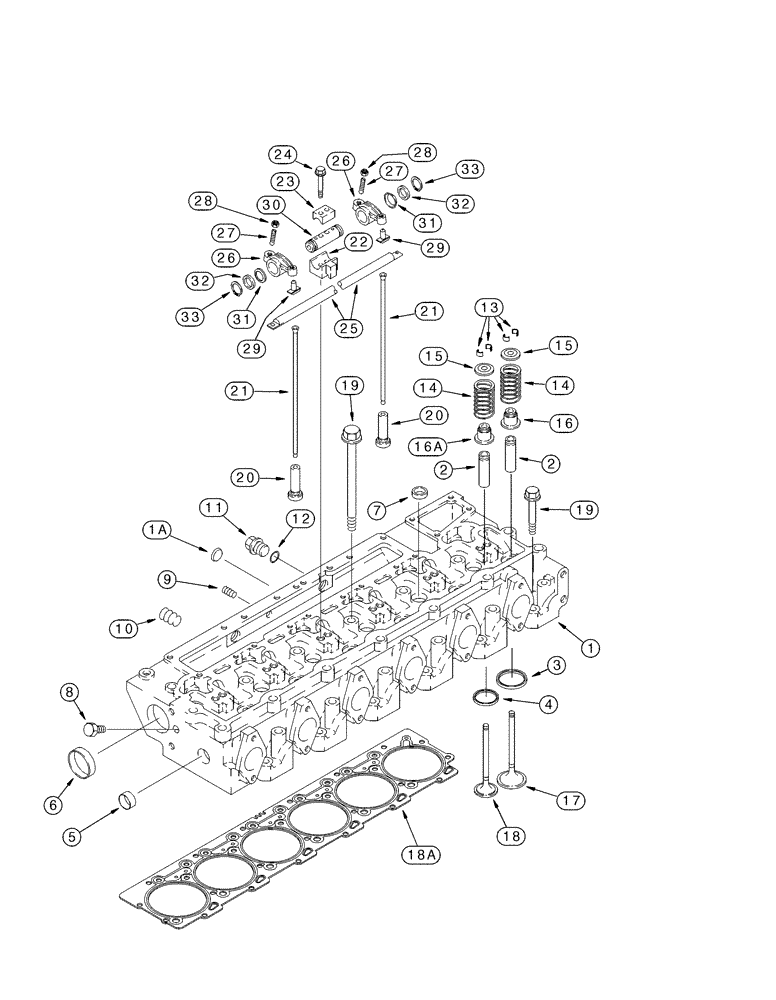

Запчасти Case IH MX210 (02-29) - CYLINDER HEAD - VALVE MECHANISM, MX210 AND MX230 (02) - ENGINE

84262945

CYLINDER HEAD

With Valves, Inc. 1 - 18

1шт.

84262945R

REMAN-CYLINDER HEAD

MX230,MX210

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

84262945R

REMAN-CYLINDER HEAD

With Valves, Inc. 1 - 18

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1

J936180

HEAD ASSY.

Cylinder, Without Valves, Inc. 1A - 7

1шт.

1

86990827

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

1

86990828

CORE-CYLINDER HEAD

Return Number

1шт.

1a

J912900

PLUG

24 mm

1шт.

2

J923564

VALVE GUIDE

12шт.

3

J924582

INSERT

Intake

6шт.

3

J925468

SEAT, VALVE

.25 mm, Intake, Oversize

6шт.

3

J925470

SEAT, VALVE

0,50 mm, Intake, Oversize

6шт.

4

J929005

INSERT

Exhaust

6шт.

4

J929006

INSERT

0,25 mm, Exhaust, Oversize

6шт.

4

J929007

INSERT

0,50 mm, Exhaust, Oversize

6шт.

5

J920443

PLUG

30 mm

1шт.

6

A77782

PLUG

58 mm

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

217-426

PLUG,Hex Soc, 1/16" - 27 NPTF

1шт.

9

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

10

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

2шт.

11

J924148

PLUG,M22 x 1.5

M22

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

13

J901177

VALVE

24шт.

14

J991085

VALVE SPRING

Valve

12шт.

15

J912976

RETAINER

12шт.

16

J927642

SEAL

Intake, Valve

6шт.

16a

J927642

SEAL

Exhaust, Valve

6шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

18a

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

See Figure 02-26

1шт.

19

J917728

BOLT

160 mm

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

80 mm

12шт.

20

J931623

TAPPET

12шт.

21

J905194

PUSH ROD

12шт.

22

J905870

SUPPORT

6шт.

23

J901693

CLAMP

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

12шт.

25

J919677

TUBE

1шт.

26

J901717

ROCKER

Includes 27 - 29

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

28

A77902

NUT

3/8" - 24 NF

1шт.

29

NSS

NOT SOLD SEPARAT

Insert

1шт.

30

J919435

SHAFT

6шт.

31

J906100

SPRING CUP

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

12шт.

33

100-1187

SNAP RING,#87, Ext

12шт.
