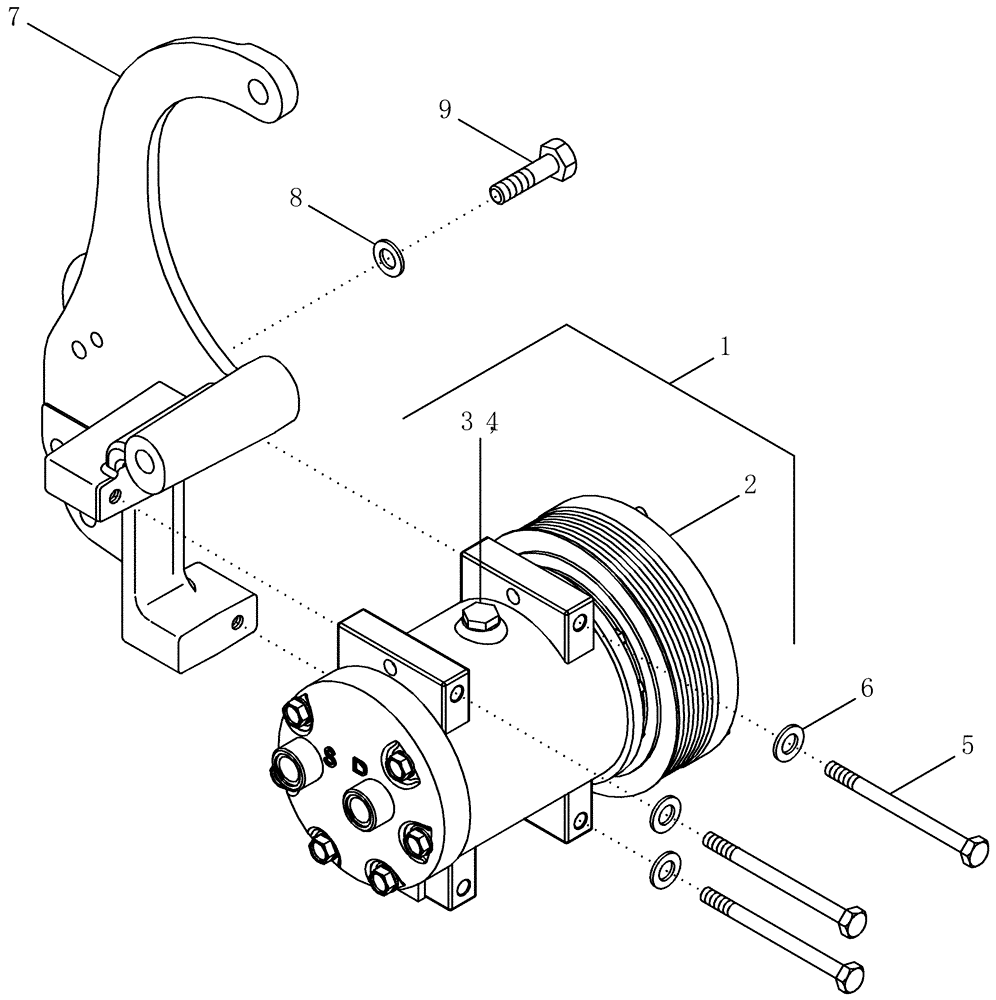

Запчасти Case IH MX210 (09-42) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

317008A3

AIRCOND. COMPRESSOR

Inc. 2 - 4

1шт.

1

86993463R

REMAN-A/C COMPRESSOR

MX210,MX230, MX255, MX285

1шт.

1

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

403585A1

CLUTCH

1шт.

3

A49667

PLUG

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

5

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

3шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

394717A4

SUPPORT

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

9

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.
