Запчасти Case IH MX210 (09-34) - SUSPENSION ASSEMBLY - SEAT (09) - CHASSIS/ATTACHMENTS

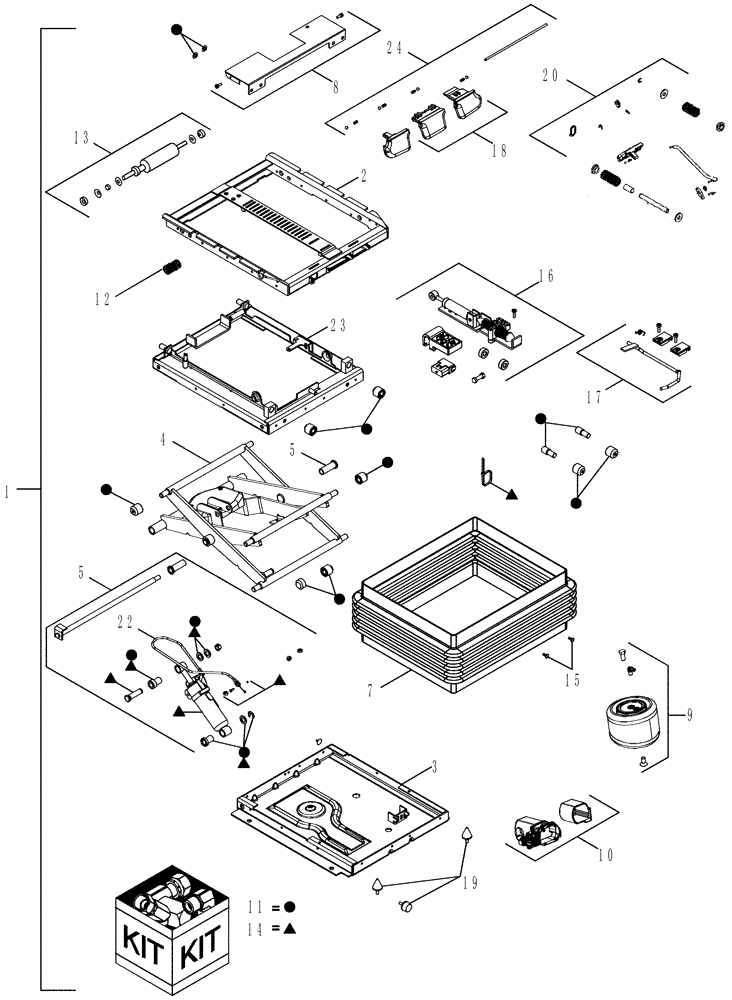

Схема запчастей Case IH MX210 - (09-34) - SUSPENSION ASSEMBLY - SEAT (09) - CHASSIS/ATTACHMENTS
5
14
15
14
4
18
8
3
7
19
11
11
14
24
11
2
5
9
11
11
14
12
23
22
17
13
14
14
11
14
11
14
1
20
11
16
11
11
14
11
11
10

Артикул

Название

Примечание

Количество

1

87347885

SERVICE KIT

Inc. 2 - 24

1шт.

2

333274A1

ISOLATOR

Lateral Track

1шт.

3

333275A1

HOUSING

Lower

1шт.

4

333276A1

ARM

1шт.

5

302033A1

SHAFT

1шт.

6

87347944

SERVICE KIT

Harness, Suspension, Not Shown

1шт.

See Figure 09-31

1шт.

7

87347943

SERVICE KIT

BOOT, Suspension

1шт.

8

302029A2

PLATE

1шт.

9

333279A2

KIT

Air Spring

1шт.

10

87347951

SERVICE KIT

Air Compressor

1шт.

11

333283A2

KIT

Suspension Bearing And Rollers

1шт.

12

333284A1

PACKAGE,SERVICE

Lateral Isolator Spring

1шт.

13

333285A1

PACKAGE,SERVICE

Lateral Isolator Shock Absorber

1шт.

14

87347950

SUSPENSION

Suspension Shock Absorber

1шт.

15

333659A1

PACKAGE,SERVICE

Boot Pin

1шт.

16

333288A2

PACKAGE,SERVICE

Fore And Aft Shock Absorber

1шт.

17

373470A2

KIT

Fore And Aft Isolator Control

1шт.

18

373473A1

PACKAGE,SERVICE

Lateral Isolator Control

1шт.

19

333295A1

BUMPER

Suspension Bumper

1шт.

20

333287A2

SPRING KIT

Fore And Aft Isolator Spring

1шт.

21

333296A1

SERVICE KIT

Fore And Aft Isolator Shock Block

1шт.

22

87347955

CABLE

Suspension Shock

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING, Upper

1шт.

24

373469A1

PACKAGE,SERVICE

Suspension Knob

1шт.

Выбрано товаров: 25
