Запчасти Case IH MX210 (09-29) - SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

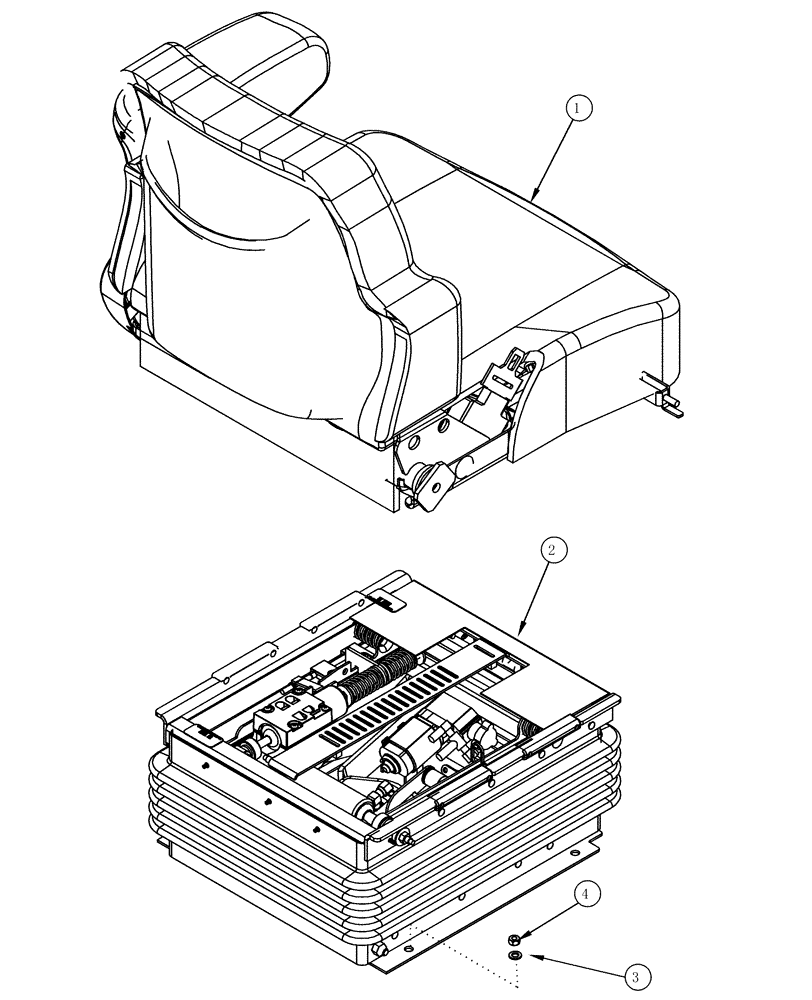

Схема запчастей Case IH MX210 - (09-29) - SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
4
2
3
1

Артикул

Название

Примечание

Количество

358202A2

SEAT ASSY.

Cloth Without Heat And Positive Response Suspension, Inc. 1, 2

1шт.

397519A1

SEAT ASSY.

Cloth With Heat Without Positive Response Suspension, Inc. 1, 2

1шт.

403213A1

SEAT ASSY.

Cloth With Heat And Positive Response Suspension, Inc.1, 2

1шт.

400163A1

SEAT ASSY.

Leather With Heat And Positive Response Suspension, Inc. 1, 2

1шт.

1

360319A2

CUSHION ASSY.

Cloth, Without Heat

1шт.

See Figure 09-30

1шт.

1

397525A1

CUSHION ASSY.

Cloth, With Heat

1шт.

See Figure 09-30

1шт.

1

400179A1

CUSHION ASSY.

Leather, With Heat

1шт.

See Figure 09-30

1шт.

2

374353A2

PACKAGE,SERVICE

Suspension, Without Positive Response Suspension

1шт.

See Figure 09-32

1шт.

2

400184A1

KIT

Suspension, With Positive Response Suspension

1шт.

See Figure 09-34

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.
