Запчасти Case IH MX210 (02-26) - CYLINDER HEAD - COVER, MX210 AND MX230, BSN JAZ132841 (02) - ENGINE

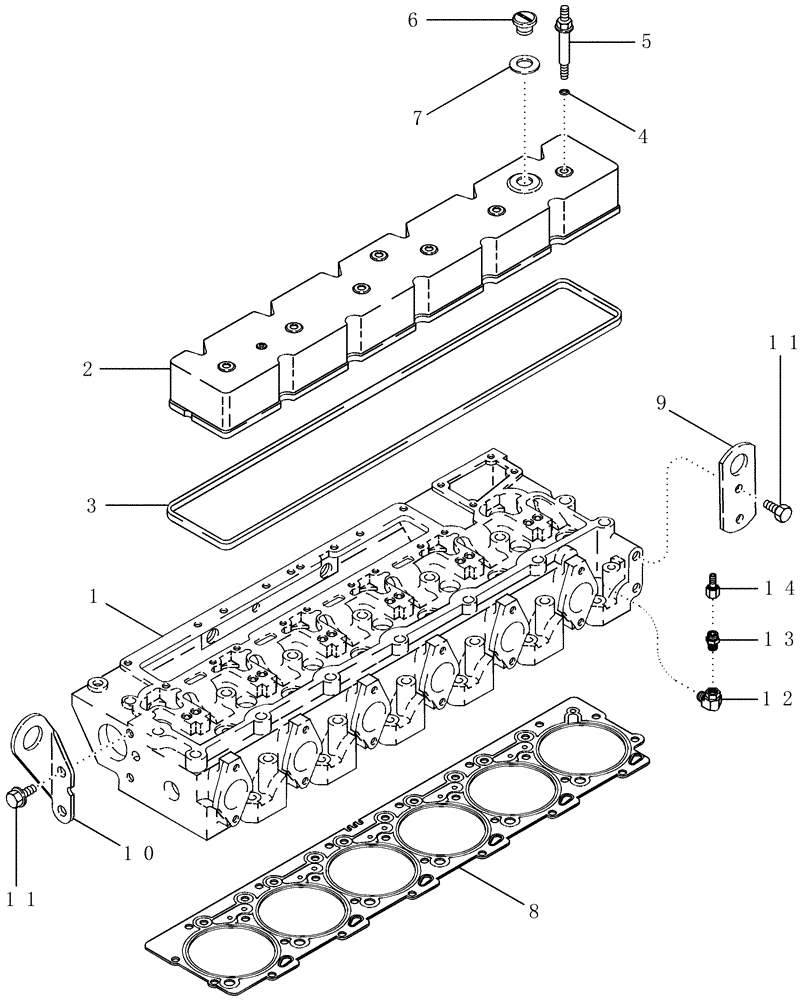

Схема запчастей Case IH MX210 - (02-26) - CYLINDER HEAD - COVER, MX210 AND MX230, BSN JAZ132841 (02) - ENGINE
2
11
11
7
4
6
8
3
9
1
10
5
14
13
12

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Head

1шт.

See Figure 02-29

1шт.

2

J930903

VALVE COVER

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

5

J922639

STUD

6шт.

6

J902468

FILLER CAP,Male

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

1шт.

8

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

8

J935586

CYLINDER HEAD GASKET,1.91mm Thk

0.25 mm

1шт.

9

J907861

LIFTING EYE

1шт.

10

J906440

LIFTING EYE

1шт.

11

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

12

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

13

J911901

VALVE, CHECK

1шт.

14

J911925

COUPLING

1шт.

Выбрано товаров: 16
