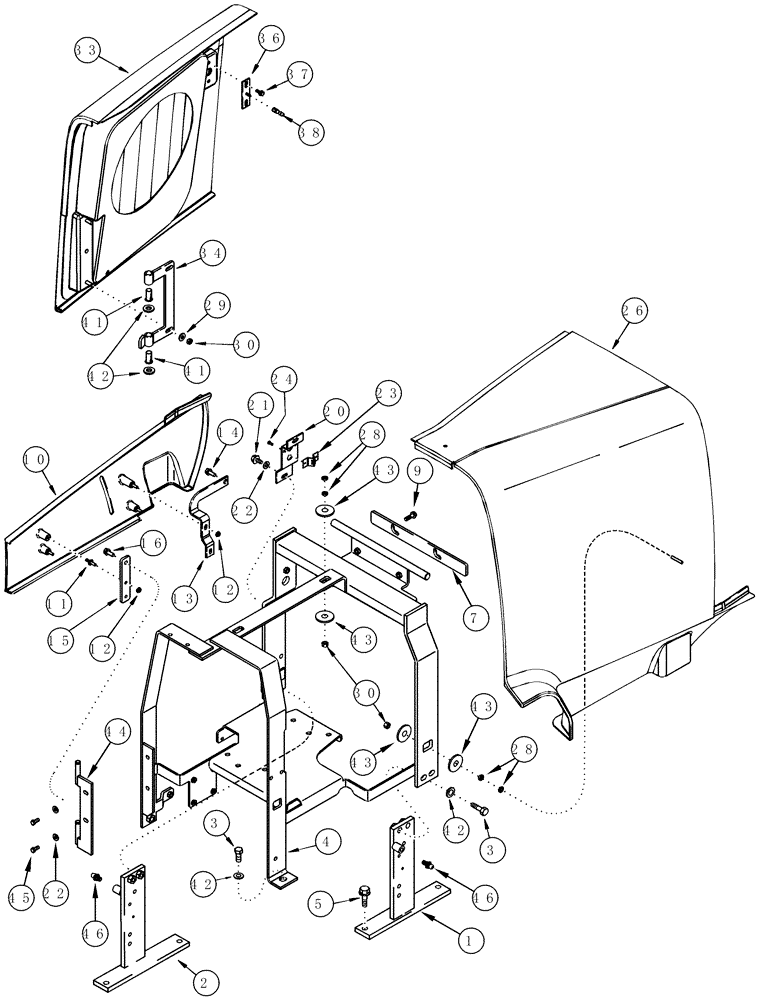

Запчасти Case IH MX210 (09-11) - HOOD - FIXED (09) - CHASSIS/ATTACHMENTS

1

367683A1

BRACKET

Right Hand

1шт.

2

367684A1

BRACKET

Left Hand

1шт.

3

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

4

87306853

SUPPORT ASSY.

1шт.

5

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

M12 x 35; 10.9

4шт.

7

248802A2

BAR

1шт.

9

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

10

254031A4

PANEL, SIDE

Inc. 11

1шт.

11

86990119

STUD

4шт.

12

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

13

241791A3

BRACKET

1шт.

14

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

15

297957A2

BRACKET

1шт.

16

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

20

252293A2

SUPPORT

1шт.

21

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

23

1968039C3

FASTENER

1шт.

24

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

2шт.

26

277303A5

PANEL

Standard Duty Air Cleaner (Shown)

1шт.

26

87416139

PANEL

Severe Duty Air Cleaner

1шт.

28

829-4408

NUT,Thin, M8 x 1.25, Cl 05

8шт.

29

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

8шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

33

252114A3

PANEL, SIDE

Standard Duty Air Cleaner (Shown)

1шт.

33

87410540

PANEL, SIDE

Severe Duty Air Cleaner

1шт.

34

87315569

PLATE

1шт.

36

448715A1

PLATE

1шт.

37

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

38

448713A1

STUD

1шт.

41

236998A1

BUSHING,12.72mm ID x 14.27mm OD x 30.7mm L

2шт.

42

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

6шт.

43

T101398

WASHER,8.5mm ID x 40mm OD x 3mm Thk

8шт.

44

302896A2

HINGE

1шт.

45

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

46

3234063R1

BALL STUD,M10 x 1.5

2шт.
