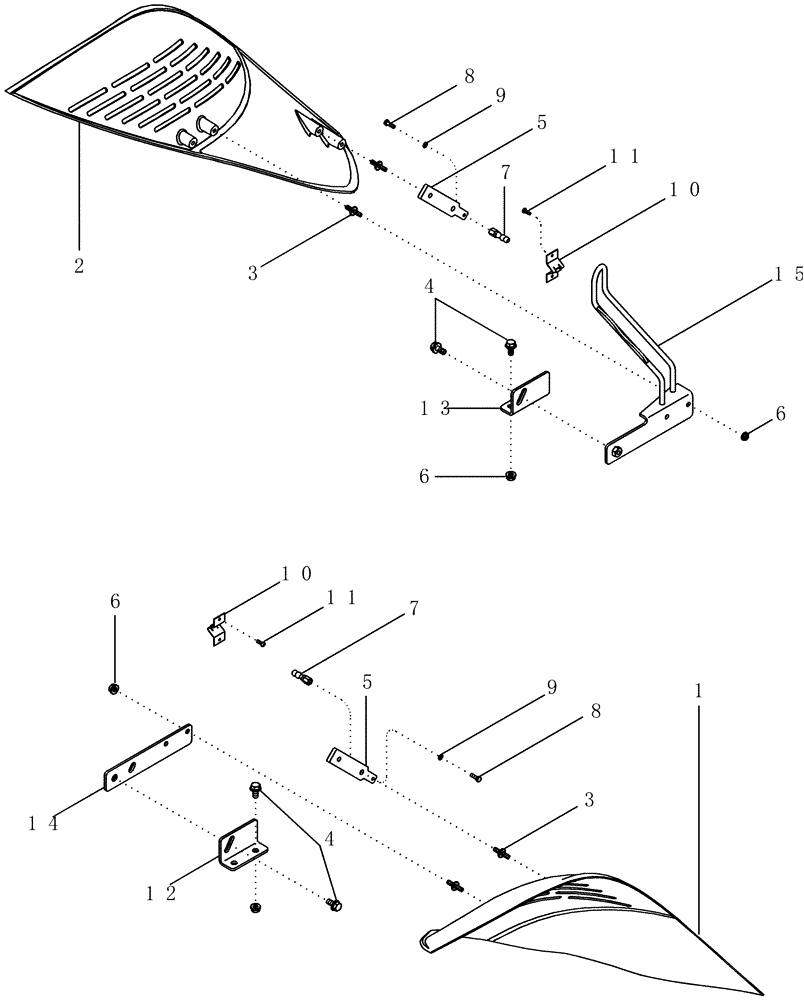

Запчасти Case IH MX210 (09-10) - FAN SHIELDS (09) - CHASSIS/ATTACHMENTS

1

258610A4

PANEL ASSY.

Right Hand, Inc. 3

1шт.

2

258608A4

PANEL ASSY.

Left Hand, Inc. 3

1шт.

3

86990119

STUD

4шт.

4

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

6шт.

5

258248A2

LARGE PLATE

PLATE, LARGE

2шт.

6

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

7

1348465C1

BALL STUD,#10 - 32

2шт.

8

463-61010

SCREW,Hex, #10 - 32 x 5/8"

2шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

2шт.

10

1968039C3

FASTENER

2шт.

11

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

4шт.

12

86984029

PLATE

Right Hand

1шт.

13

86984040

PLATE

Left Hand

1шт.

14

86984032

SUPPORT ASSY.

Right Hand

1шт.

15

87404252

BRACKET

Left Hand

1шт.
