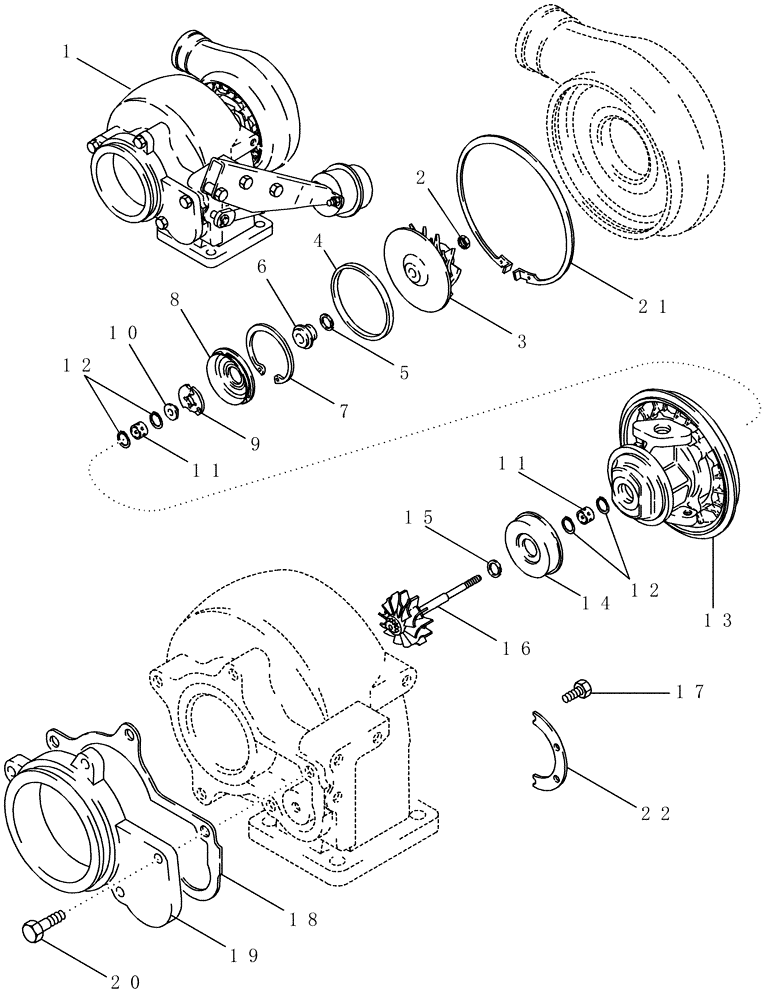

Запчасти Case IH MX210 (02-19) - TURBOCHARGER ASSEMBLY, MX210 AND MX230 (02) - ENGINE

86993017

TURBOCHARGER

MX210; Incl Turbocharger, Turbo Mount Gasket, and Oil Drain Gasket

1шт.

86993019

PACKAGE

MX210; Incl Remanufactured Turbocharger, Turbo Mount Gasket, and Oil Drain Gasket

1шт.

86993017R

REMAN-TURBOCHARGER

MX210

1шт.

86993017C

CORE-TURBOCHARGER

Return Number

1шт.

87405392

TURBOCHARGER

MX230; Incl Turbocharger, Turbo Mount Gasket, and Oil Drain Gasket

1шт.

87405393

REMAN-TURBOCHARGER

MX230; Incl Remanufactured Turbocharger, Turbo Mount Gasket, and Oil Drain Gasket

1шт.

87405394

CORE-TURBOCHARGER

Return Number

1шт.

JC598070

CORE-TURBOCHARGER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Turbocharger; Incl 2 - 22, Also Incl 1 - 12; See Figure 02-21

1шт.

1

J535324

CARTRIDGE

Incl 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

RING, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

THRUST BEARING, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

JOURNAL BEARING, Incl in 1

2шт.

12

NSS

NOT SOLD SEPARAT

RING, Incl in 1

4шт.

13

NSS

NOT SOLD SEPARAT

HOUSING, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT, Incl in 1

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

1шт.

19

J528010

ADAPTER

1шт.

20

J503533

BOLT

M8 x 20; 8,8

5шт.

21

J533163

SNAP RING

1шт.

22

J597308

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Incl 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
