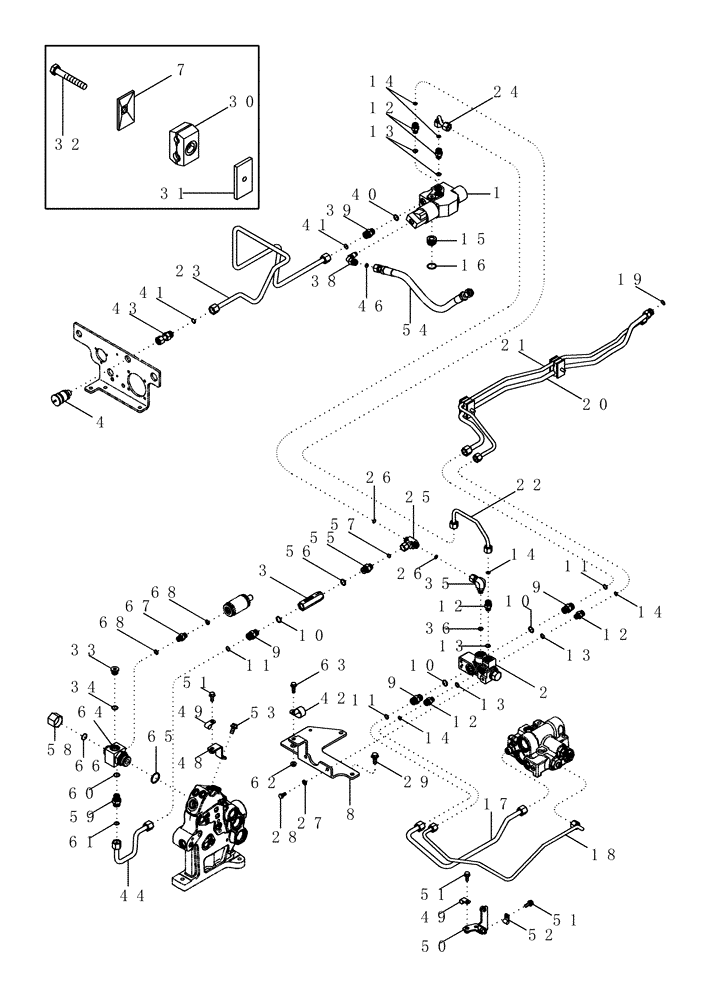

Запчасти Case IH MX210 (07-11) - TRAILER BRAKES - HYDRAULIC (07) - BRAKES

1

86991384

VALVE

Trailer Brake

1шт.

2

1533774C2

HYDRAULIC VALVE

Priority

1шт.

3

1348540C1

CHECK VALVE

Check

1шт.

4

3131463R91

QUICK MALE COUPLING

1шт.

7

384870A1

PLATE

2шт.

8

87403709

BRACKET

1шт.

9

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 10, 11

3шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 13, 14

5шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

434093A1

ADAPTER

Inc. 16

1шт.

16

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

1шт.

17

86985133

HYD TUBE,0.50" OD

Steering Supply

1шт.

18

451058A1

TUBE

Steering Sensor

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

433945A1

TUBE

Steering Supply

1шт.

21

433946A1

TUBE

Steering Sensor

1шт.

22

434000A1

TUBE

Trailer Brake Pilot

1шт.

23

87410305

HYD TUBE,12.70 mm OD x 764 mm L

Trailer Brake Coupler

1шт.

24

87403710

HYD TUBE,.375" OD

Trailer Brake Priority

1шт.

25

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

11/16 fc sl x 11/16 sw, Inc. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

29

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

30

363255A1

CLAMP

2шт.

31

384871A1

PLATE

2шт.

32

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

33

221578A1

PLUG,M18 x 1.5 ORB

Incl. 34

1шт.

34

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

35

201-322

ELBOW,90 Degree Elbow, 11/16" - 16 Female ORFS x 9/16" - 18 Male ORB

9/16 Or x 11/16 sw, Inc 36

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

1975290C1

HYD TUBE,0.312" OD

Brake Supply

1шт.

39

1975213C2

ADAPTER

13/16 fc sl x 18 Or, Inc. 40, 41

1шт.

40

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

43

1975266C1

HYD TUBE,12 mm OD

1шт.

44

87403711

HYD TUBE,.5" OD

Trailer Brake Supply

1шт.

48

443761A1

BRACKET

1шт.

49

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

50

86985131

BRACKET

1шт.

51

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

52

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

53

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

54

87403804

FLEXIBLE HOSE

1шт.

55

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

11/16 fc sl x 3/4 Or, Inc. 56, 57

1шт.

56

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

57

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

58

701-907

CAP,1-3/16" - 12

1-3/16

1шт.

59

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

13/13 fc sl x 14 Or, Incl. 60, 61

1шт.

60

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

61

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

62

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

63

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

64

87402551

TEE

Inc. 65, 66

1шт.

65

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

66

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

67

87403003

HYD CONNECTOR

14 Or x 14 Or, Inc. 68

1шт.

68

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
