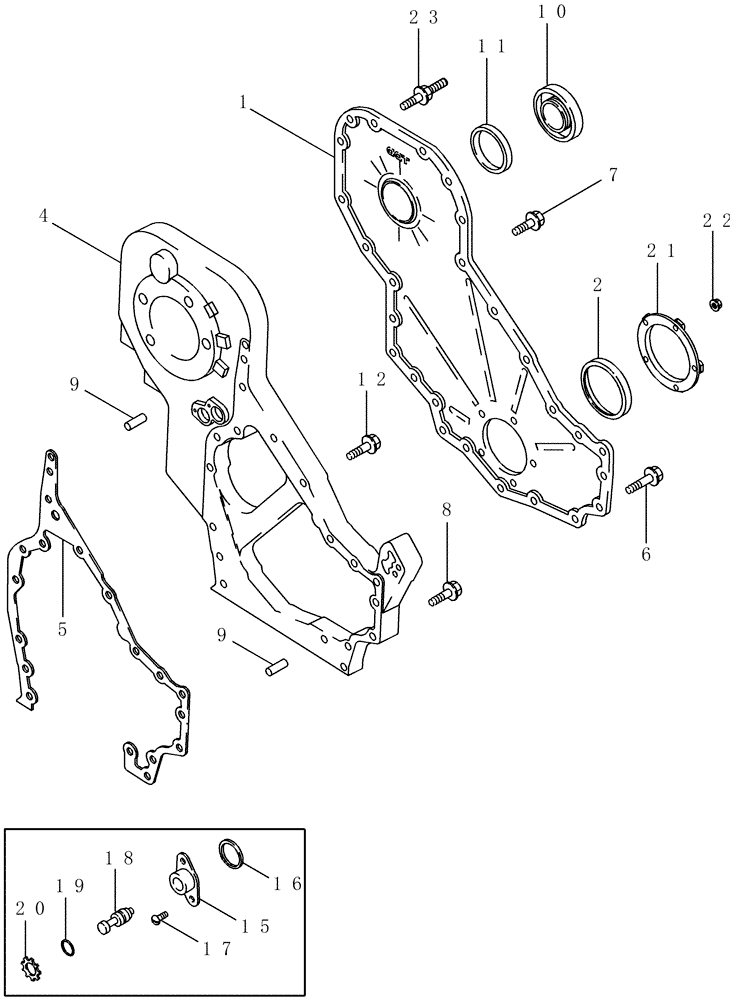

Запчасти Case IH MX210 (02-13) - FRONT GEAR COVER, MX210 AND MX230 (02) - ENGINE

1

J948043

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, Order A77790, A77808

1шт.

See Figure 02-40

1шт.

3

J823494

SEALANT

3 oz, Not Illustrated

1шт.

4

84573149

HOUSING

Cummins 4992993

1шт.

5

J944293

GASKET,1.01mm Thk

1шт.

6

J926863

FLANGE BOLT

M8 x 50

12шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

14шт.

8

J926846

FLANGE BOLT

M8 x 20

3шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J903463

PLUG,M63 x 5

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

12

J943885

BOLT

M8 x 40

2шт.

15

J919683

HOUSING

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

1шт.

19

J913994

O-RING

1шт.

20

100-2587

SNAP RING,0.875", Int, #87

1шт.

21

J941786

CARRIER

1шт.

22

87493304

FLANGE NUT

Lock, M6

5шт.

23

J921816

SPECIAL BOLT

2шт.
