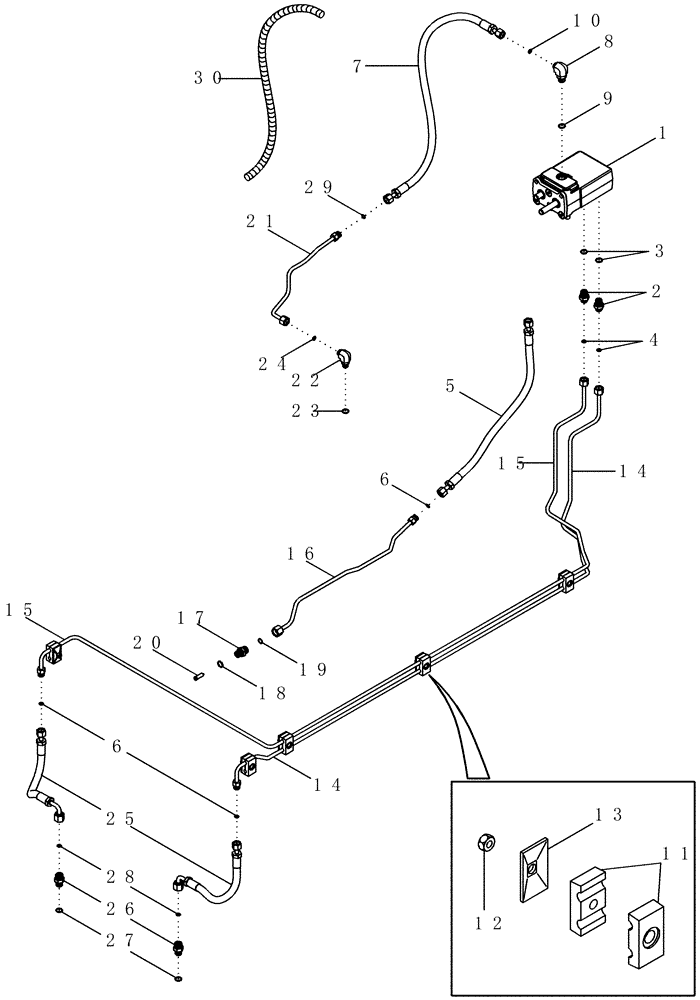

Запчасти Case IH MX210 (07-02) - BRAKES - HYDRAULIC SYSTEM, WITHOUT TRAILER BRAKES (07) - BRAKES

1

87731065

BRAKE VALVE

Brake

1шт.

See Figure 07-05

1шт.

2

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3, 4

2шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

87404717

HOSE ASSY.

Supply

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

7

400692A1

HOSE,9.53mm ID x 925mm L

Return, Serial Range: -AJB0304631

1шт.

7

87432131

HOSE

Return, Start Serial: AJB0304631

1шт.

8

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

11/16 fc sl x 18 Or, Inc. 9, 10, Serial Range: -AJB0304631

1шт.

8

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 9, 10, Start Serial: AJB0304631

1шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

, Serial Range: -AJB0304631

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

, Start Serial: AJB0304631

1шт.

11

1546024C1

CLAMP

5шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

13

384870A1

PLATE

5шт.

14

436382A1

TUBE

Right Hand Brake

1шт.

15

436383A1

TUBE

Left Hand Brake

1шт.

16

433588A1

TUBE

Supply

1шт.

17

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 18 - 20

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

326965A1

FILTER STRAINER,10.46mm OD x 33.7mm L, 140 Micron

1шт.

21

387024A1

TUBE

Return, Serial Range: -AJB0304631

1шт.

21

87432130

TUBE,.5" OD

Return, Serial Range: AJB0304631-AJB0355338

1шт.

21

87440347

TUBE,0.5" OD

Return, Start Serial: AJB0355338

1шт.

22

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 23, 24, Serial Range: -AJB0304631

1шт.

22

87432129

ELBOW

13/16 fc sl x 9/16 Or, Inc. 23, 24, Serial Range: AJB0304631-AJB0355338

1шт.

22

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Inc. 23, 24, Start Serial: AJB0355338

1шт.

23

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

, Start Serial: AJB0355338

1шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

, Serial Range: -AJB0304631

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

, Start Serial: AJB0304631

1шт.

25

86985588

FLEXIBLE HOSE,9.53mm ID x 350mm L

2шт.

26

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 27, 28

2шт.

27

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

, Serial Range: -AJB0304631

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

, Start Serial: AJB0304631

1шт.

30

384834A1

CONDUIT

Conduit (If Equipped)

1шт.

With Fuel Separator Filter

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

, Serial Range: -AJB0355338

1шт.
