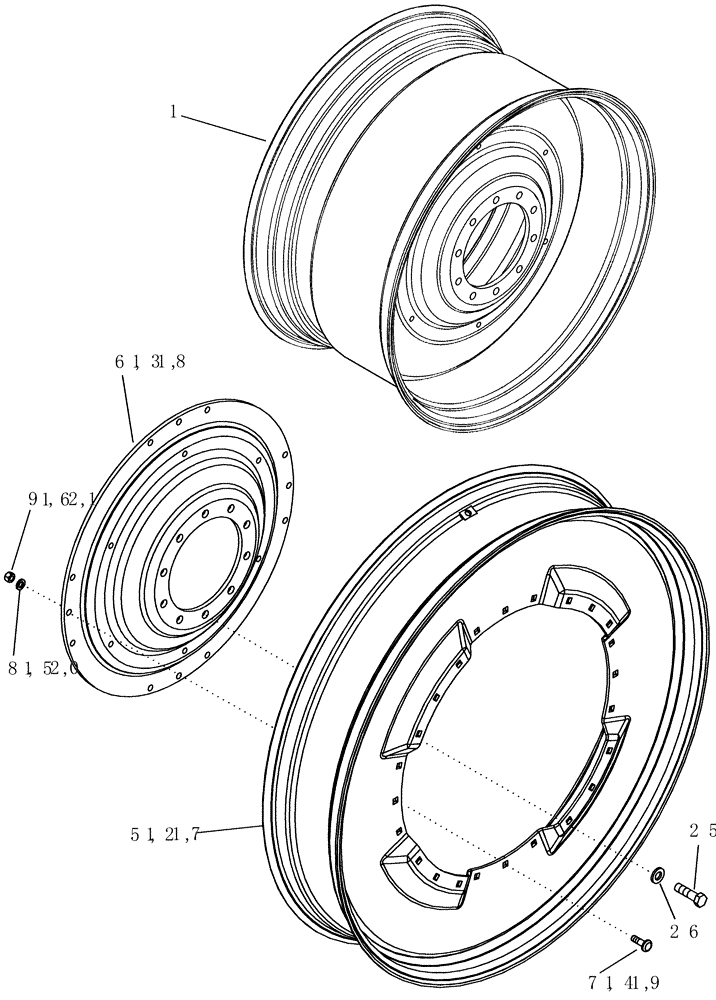

Запчасти Case IH MX210 (06-54) - SOLID STEEL REAR WHEELS (06) - POWER TRAIN

1

222665A1

WHEEL

W18Ax38

2шт.

For Tires 20.8R38, 520/85R38

1шт.

1

193300A2

RIM

MW23Ax38

2шт.

For Tires 710/70R38

1шт.

1

403037A1

RIM

MW25Ax38

2шт.

For Tires 800/70R38

1шт.

1

221362A1

WHEEL

W16Ax42

2шт.

For Tires 18.4R42, 480/80R42

1шт.

1

193857A1

WHEEL

W18Ax42

2шт.

For Tires 20.8R42, 520/85R42

1шт.

1

276687A1

WHEEL

MW20Ax42

2шт.

For Tires 620/70R42

1шт.

1

305792A1

RIM

MW23Ax42

2шт.

For Tires 710/70R42

1шт.

1

311352A1

WHEEL

MW28Ax42

2шт.

For Tire 900/50R42

1шт.

1

196254A1

WHEEL

W13x46

2шт.

For Tires 14.9R46, 380/90R46, 420/80R46

1шт.

1

196488A1

WHEEL

W16Ax46

2шт.

For Tires 18.4R46, 520/85R46, 480/80R46

1шт.

1

349008A1

WHEEL

DW15Lx50

2шт.

For Tires 480/80R50

1шт.

1

326630A1

WHEEL

W12x54

2шт.

For Tires 380/90R54

1шт.

283939A2

WHEEL ASSY.

W10Ax54, Inc. 5 - 9

2шт.

For Tires 12.4R54, 320/90R54

1шт.

5

310835A2

RIM

WHEEL

1шт.

6

310836A1

DISC

1шт.

7

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

12шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

9

829-1416

NUT,M16, Cl 10

12шт.

395747A1

WHEEL ASSY.

DW12x50, Inc 12 - 16

2шт.

For Tires 380/90R50

1шт.

12

395748A1

RIM

WHEEL

1шт.

13

310836A1

DISC

1шт.

14

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

12шт.

15

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

16

829-1416

NUT,M16, Cl 10

12шт.

25

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

20шт.

26

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.
