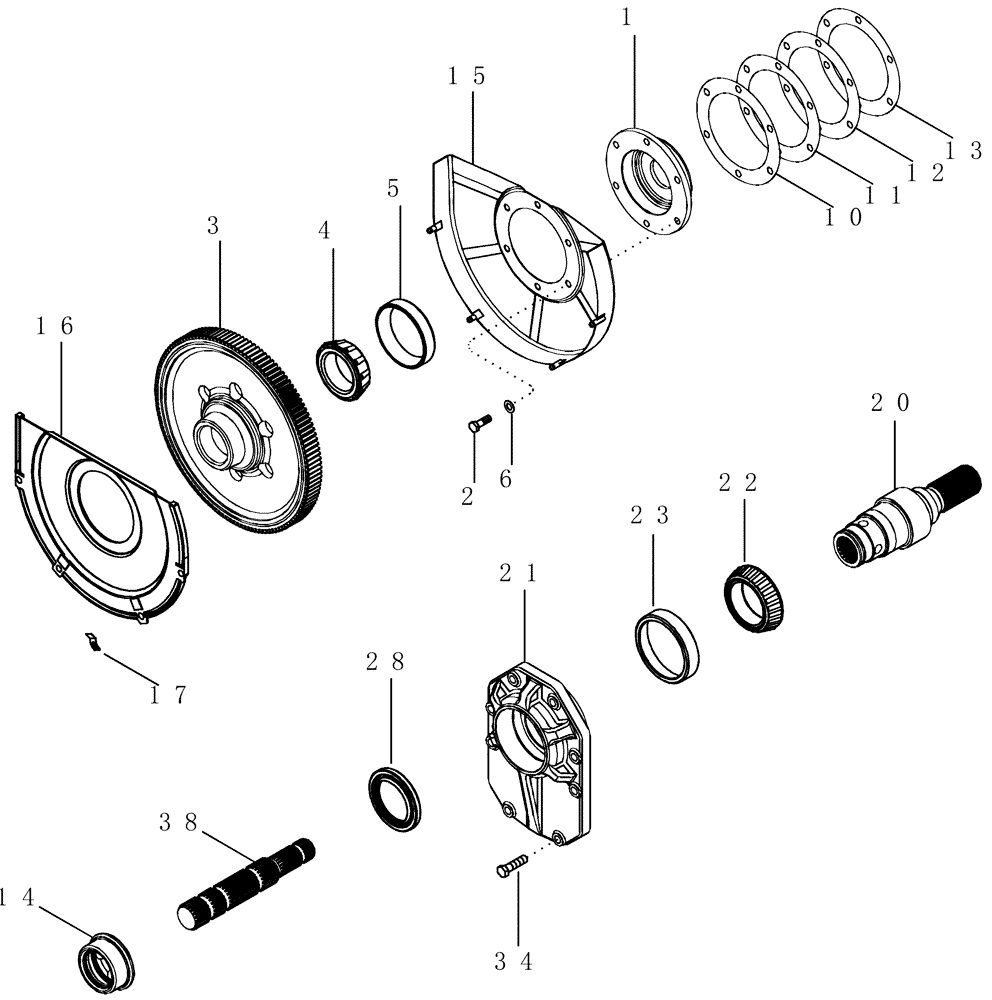

Запчасти Case IH MX210 (06-52) - POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, SINGLE SPEED REVERSIBLE SHAFT (06) - POWER TRAIN

1

444803A2

CAGE

1шт.

2

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

3

444799A2

RING, FLYWHEEL

1шт.

4

446268A1

BEARING ASSY,66.67mm ID x 30.05mm W

1шт.

5

446269A1

BEARING CUP,112.71mm OD x 23.81mm W

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

445991A1

SHIM KIT

Inc. 10 - 13

1шт.

10

444805A1

SHIM

0,152 mm

1шт.

11

444806A1

SHIM

0,178 mm

1шт.

12

444807A1

SHIM

0,203 mm

1шт.

13

444809A1

SHIM

0,635 mm

1шт.

14

87413197

COUPLING, QUICK, FEM

1шт.

15

446759A1

SHIELD

1шт.

16

225810A1

COVER

1шт.

17

139327C1

CLIP

4шт.

20

448084A2

TRANSMISSION SLEEVE

1шт.

21

448082A1

COVER

1шт.

22

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

1шт.

23

A67327

BEARING CUP,120 mm OD x 25 mm

1шт.

28

293053A1

OIL SEAL,74.86mm ID x 107.97mm OD x 12mm Thk

1шт.

34

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

38

448085A1

SHAFT

35 mm (1-3/8 in)

1шт.
