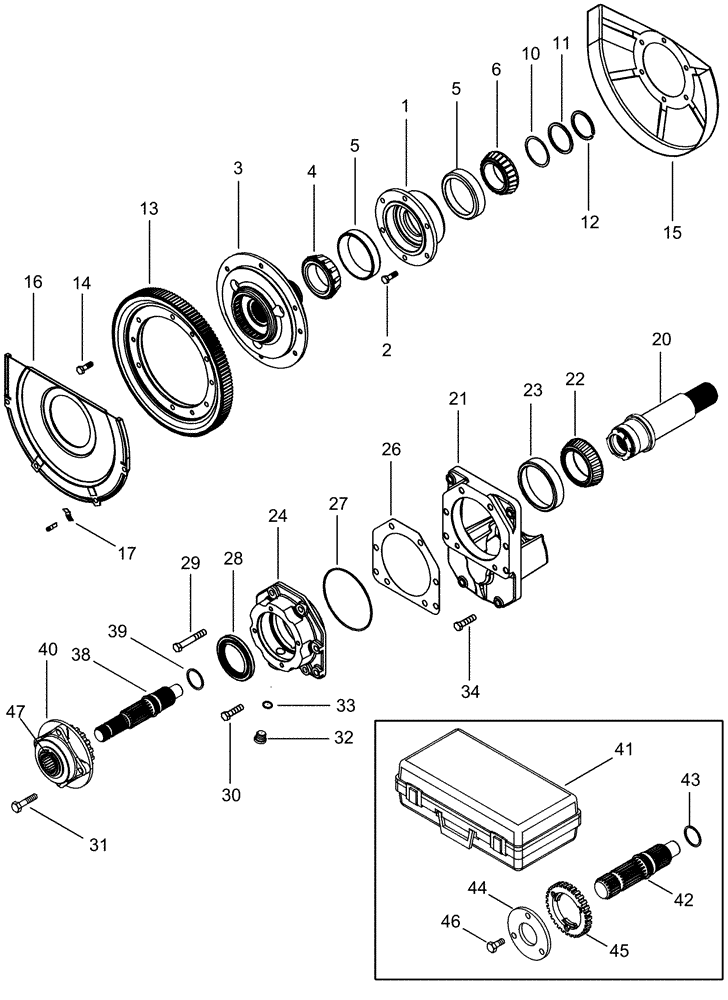

Запчасти Case IH MX210 (06-51) - POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, SINGLE SPEED INTERCHANGEABLE SHAFT (06) - POWER TRAIN

1

225806A1

CAGE

1шт.

2

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

3

277389A2

HUB ASSY.

1шт.

4

435536A1

ROLLER BEARING,66.675 mm ID x 30.0482 mm

1шт.

5

435535A1

BEARING CUP

2шт.

6

235545A1

TAPERED BEARING,63.51mm ID x 29.96mm W

1шт.

253456A1

SHIM

Inc. 10

1шт.

10

373471A1

SHIM,0.152mm Thk

1шт.

10

373474A1

SHIM,0.178mm Thk

1шт.

10

249529A1

SHIM,0.203mm Thk

1шт.

10

231773A1

SHIM,0.356mm Thk

1шт.

10

231778A1

SHIM,0.635mm Thk

1шт.

11

231772A1

SPACER

1шт.

12

231760A1

SNAP RING

1шт.

13

226950A4

RING GEAR

1шт.

14

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

15

198709A1

PROTECTION PLATE

1шт.

16

225810A1

COVER

1шт.

17

139327C1

CLIP

4шт.

20

431027A1

PTO SHAFT

1шт.

21

226037A4

COVER

1шт.

22

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

1шт.

23

A67327

BEARING CUP,120 mm OD x 25 mm

1шт.

24

241384A3

HOUSING

1шт.

253460A1

SHIM

Inc. 26

1шт.

26

249530A1

SHIM

0,203 mm

1шт.

26

241383A1

SHIM

0,356 mm

1шт.

26

241380A1

SHIM

0,508 mm

1шт.

26

241381A1

SHIM

0,559 mm

1шт.

26

241382A1

SHIM

0,635 mm

1шт.

27

638-54145

O-RING,3.55mm Thk x 145mm ID, Cl 5, 75 Duro

145 ID x 3,55 mm

1шт.

28

293053A1

OIL SEAL,74.86mm ID x 107.97mm OD x 12mm Thk

1шт.

29

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

6шт.

30

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

31

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

32

431888A1

PLUG

Inc. 33

1шт.

33

637-63173

O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro

1шт.

34

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

38

226042A2

DRIVE SHAFT

35 mm (1-3/8 in)

1шт.

39

341418A2

SEAL,40.87mm ID x 50mm OD x 3.53mm Thk

1шт.

40

241387A5

HOUSING

Inc. 47; Seal included with assy, cannot be purchased seperately.

1шт.

41

258531A1

BOX

1шт.

42

226040A2

DRIVE SHAFT

45 mm (1-3/4 in)

1шт.

43

341418A2

SEAL,40.87mm ID x 50mm OD x 3.53mm Thk

1шт.

44

241386A2

PLATE

1шт.

45

241385A3

GEAR

1шт.

46

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

47

375374R1

RING

1шт.
