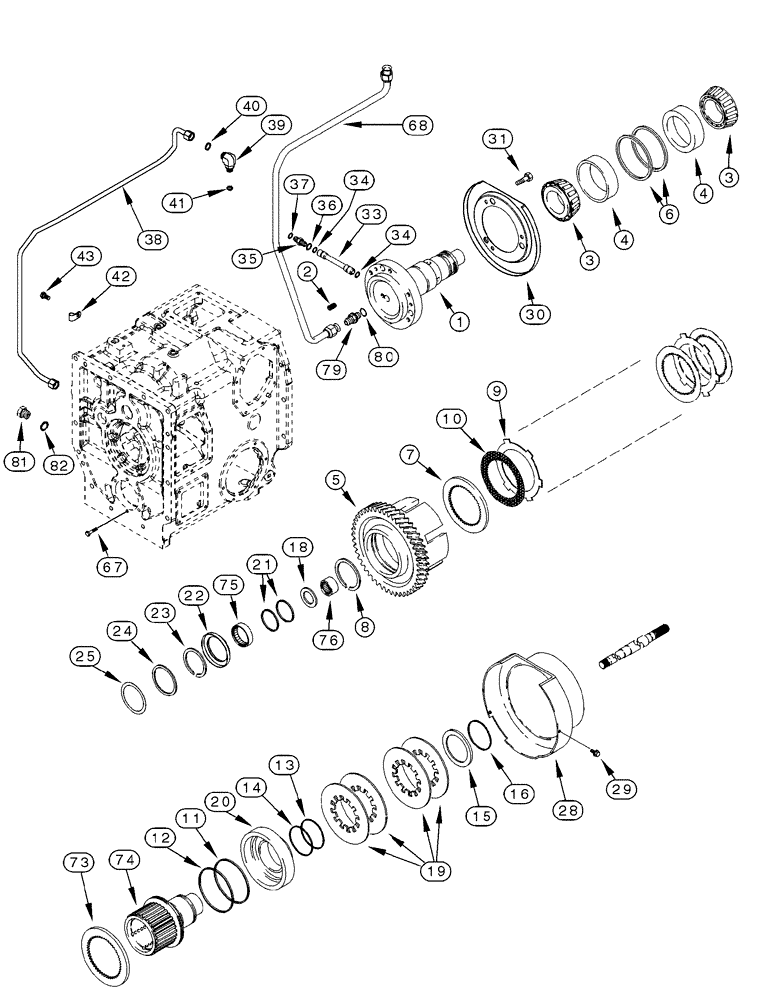

Запчасти Case IH MX210 (06-28) - RANGE TRANSMISSION - MFD CLUTCH (06) - POWER TRAIN

1

199320A1

SHAFT

1шт.

2

877-11010

SET SCREW,Hex, M10 x 10mm

M10 x 10

1шт.

3

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

2шт.

4

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

2шт.

5

222856A1

PINION

1шт.

6

101-21412

SNAP RING,#412, 4.430", Int

2шт.

7

128297A1

CLUTCH DISC,98.63mm ID x 142mm OD x 7.5mm Thk

CLUTCH DISK

1шт.

8

101-11400

SNAP RING,#400, 3.771, Ext

No. 400

1шт.

9

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Separator

12шт.

MX210

1шт.

MX230

1шт.

9

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Separator

15шт.

MX255

1шт.

MX285

1шт.

10

1997907C1

PLATE

Friction

13шт.

MX210

1шт.

MX230

1шт.

10

1997907C1

PLATE

Friction

16шт.

MX255

1шт.

MX285

1шт.

11

92562C1

RING,120.46mm ID x 123.5mm OD x 2.28mm Thk

1шт.

12

93138C1

RING,1.78mm Thk x 114.02mm ID, -47, 60 Duro

1шт.

13

1997879C1

SEALING RING

1шт.

14

238-7037

O-RING,0.07" Thk x 2.489" ID, -37, Cl 7, 75 Duro

1шт.

15

123135A1

WASHER,69.64mm ID x 92mm OD x 5.45mm Thk

1шт.

16

123517A1

RING, SNAP

RING SNAP

1шт.

18

121192A1

THRUST WASHER

1шт.

19

1997880C1

SPRING,70.15mm ID x 155mm OD x 3.5mm Thk

4шт.

MX210

1шт.

MX230

1шт.

19

1997880C1

SPRING,70.15mm ID x 155mm OD x 3.5mm Thk

6шт.

MX255

1шт.

MX285

1шт.

20

231935A2

PISTON

1шт.

MX210

1шт.

MX230

1шт.

20

231936A2

PISTON

1шт.

MX255

1шт.

MX285

1шт.

21

1286024C1

SEALING RING,Locking, 46.61mm ID x 50.61mm OD x 2.87mm Thk

2шт.

22

1997885C1

OIL SEAL

1шт.

23

1997891C1

SNAP RING

1шт.

24

1277309C1

WASHER,65.25mm ID x 77mm OD x 3mm Thk

1шт.

25

138121A1

SHIM,65mm ID x 80mm OD x 0.2mm Thk

1шт.

25

1997893C1

SHIM,65.5mm ID x 80mm OD x 0.51mm Thk

1шт.

25

1997894C1

SHIM,65.5mm ID x 80mm OD x 0.56mm Thk

1шт.

25

1997895C1

SHIM,65.5mm ID x 80mm OD x 0.64mm Thk

1шт.

28

117853A1

HOUSING,242mm OD x 58mm W

1шт.

29

782-84413

SELF-TAP SCREW,Hex Flg, M4.8 x 1.6 x 13mm

M4,8 X 13

3шт.

30

1997881C1

SHIELD

1шт.

31

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

M8 x 16; 10.9

3шт.

33

93201C1

TUBE,11 mm DIA x 110 mm L

1шт.

34

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

35

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 36, 37

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

258154A3

TUBE,0.5" OD, 657, 521 mm Length

1шт.

39

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Inc. 40 - 41

1шт.

40

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

41

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

43

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

67

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

6шт.

68

124306A1

TUBE,12.7 mm OD, 469, 181 mm Length

1шт.

73

128297A1

CLUTCH DISC,98.63mm ID x 142mm OD x 7.5mm Thk

CLUTCH DISK

1шт.

74

198519A3

HUB ASSY.

Inc. 75, 76

1шт.

75

112822R91

NEEDLE BEARING,Needle, 50.78mm ID x 60.31mm OD x 25.4mm W

1шт.

76

F19478

NEEDLE BEARING,Needle, 31.75mm ID x 41.27mm OD x 19.05mm W

1шт.

79

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or, Inc. 80

1шт.

80

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

81

214389

PLUG,3/4" - 16 ORB

Includes Ref. 82

1шт.

Without Mechanical Front Drive

1шт.

82

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
