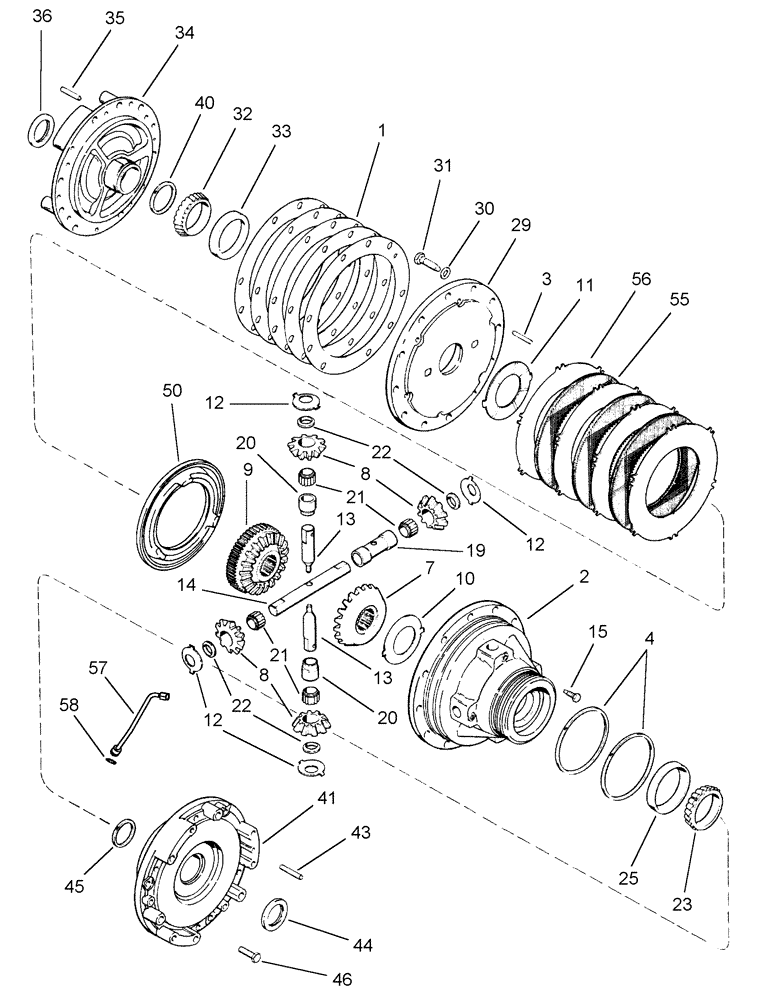

Запчасти Case IH MX210 (06-27) - TRANSMISSION - DIFFERENTIAL (06) - POWER TRAIN

1

120513C2

SHIM,290mm ID x 388mm OD x 0.08mm Thk

0,09 mm

1шт.

1

120512C2

SHIM

0,10 mm

1шт.

1

120509C2

SHIM

0,18 mm

1шт.

1

120510C2

SHIM

0,31 mm

1шт.

1

120511C2

SHIM

0,74 mm

1шт.

2

229594A1

CAGE

1шт.

3

137023A1

DOWEL

10 x 60 mm

6шт.

4

148939C1

SEALING RING,OD 200.60 mm

2шт.

7

1259633C3

GEAR

1шт.

8

92905C1

PINION

10T

4шт.

9

1259634C3

PINION

1шт.

10

227116A2

THRUST WASHER

1шт.

11

227117A2

THRUST WASHER,92mm ID x 176mm OD x 1.62mm Thk

1шт.

12

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

13

92906C1

SHORT SHAFT

2шт.

14

92907C1

SHAFT

1шт.

15

1997421C1

BOLT

2шт.

19

1289349C1

SPACER

1шт.

20

1289350C1

SPACER

2шт.

21

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

22

1289348C1

RING

4шт.

23

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

25

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

1шт.

29

229593A1

COVER

1шт.

30

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

31

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

12шт.

32

67250C1

ROLLER BEARING,89.99mm ID x 35mm W

1шт.

33

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

1шт.

34

120503C2

RETAINER

1шт.

35

136433A1

DOWEL,M12 x 65mm, HDN

12 x 65 mm

5шт.

36

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

1шт.

40

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

2шт.

41

1997369C1

RETAINER

1шт.

43

136433A1

DOWEL,M12 x 65mm, HDN

12 x 65 mm

5шт.

44

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

1шт.

45

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

1шт.

46

613-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

Hex, M16 x 40, 8.8, Full Thd

3шт.

46

613-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

Hex, M16 x 45, 8.8, Full Thd

3шт.

50

1997422C1

PISTON

1шт.

55

120679C1

PLATE

3шт.

56

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

4шт.

57

409738A1

TUBE

1шт.

58

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
