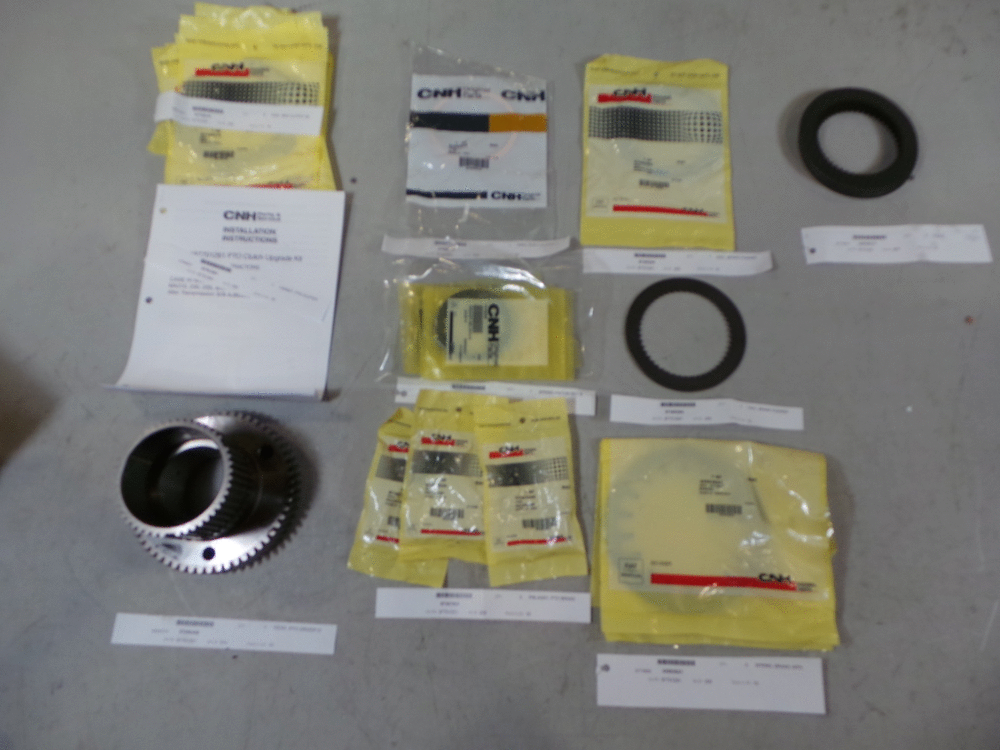

Запчасти Case IH MX210 (06-23[01]) - KIT PTO CLUTCH UPGRADE (06) - POWER TRAIN

1

87701261

KIT

Incl 2 - 11

1шт.

2

87701267

INSTRUCTION

1шт.

3

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Clutch Separtor

8шт.

4

87696448

GEAR

IPTO Driver 57T

1шт.

5

87690675

RING,Locking, 97.5mm ID x 106.6mm OD x 4.5mm Thk

1шт.

6

87425389

BELLEVILLE SPRING

7шт.

7

87367860

PIN,12.69mm OD x 60mm L

3шт.

8

87366290

BRAKE DISC,98.63mm ID x 135mm OD x 3.5mm Thk

3.5MM

1шт.

9

87366284

BRAKE DISC,98.63mm ID x 135mm OD x 3mm Thk

3.0MM

1шт.

10

435636A1

SPRING

2шт.

11

1997907C1

PLATE

8шт.
