Запчасти Case IH MX210 (06-13) - SPEED TRANSMISSION - COUNTERSHAFT WITH CREEP SPEED (06) - POWER TRAIN

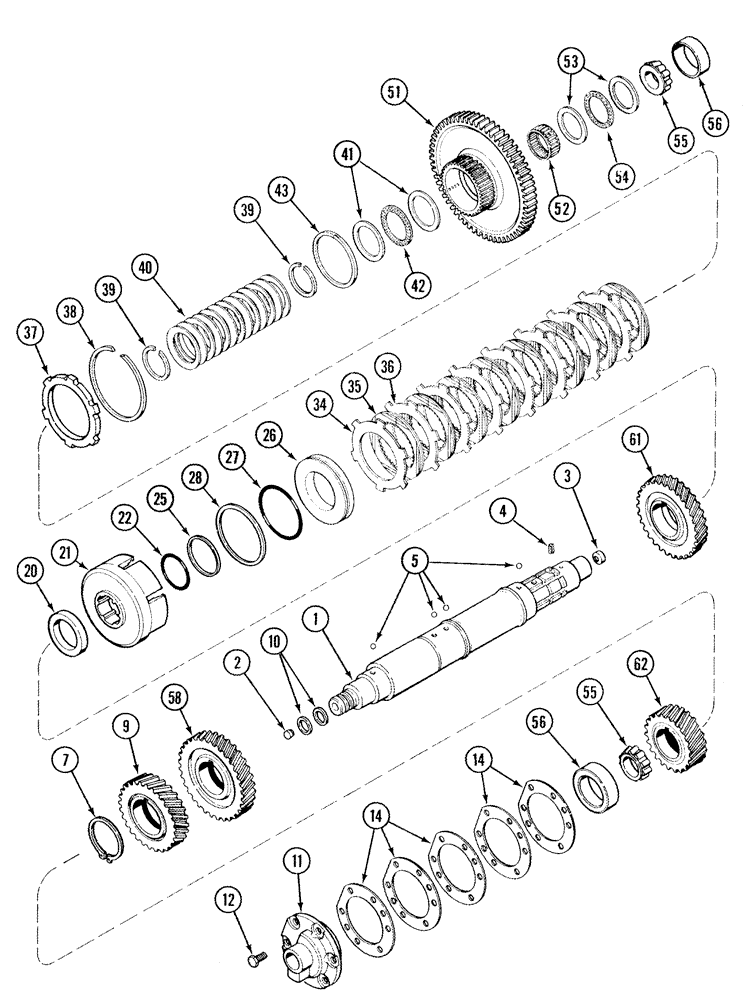

Схема запчастей Case IH MX210 - (06-13) - SPEED TRANSMISSION - COUNTERSHAFT WITH CREEP SPEED (06) - POWER TRAIN
26
20
3
61
28
38
5
55
54
22
7
58
51
25
2
1
37
36
62
39
53
11
56
42
52
10
9
34
21
55
40
35
4
14
12
56
43
39
14
41
27

Артикул

Название

Примечание

Количество

1

1342318C2

SHAFT

Inc. 2 - 4

1шт.

2

1286084C1

PIN,12.02mm OD x 11mm L

12 mm

1шт.

3

92825C1

CAP WASHER

1шт.

4

1963875C1

COTTER PIN

1шт.

5

211-1012

BALL,3/8" Dia

3/8; 24,CRS

4шт.

7

100-11293

SNAP RING,#293, Ext

1шт.

9

1285983C1

DRIVING GEAR

Drive, 34T

1шт.

10

144242C3

RING,Locking, 28.43mm ID x 33.43mm OD x 3.8mm Thk

33 mm

2шт.

11

92828C1

BEARING ASSY,33 mm ID x 148 mm OD x 52.8 mm

1шт.

12

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

14

120647C2

SHIM,0.080mm Thk

1шт.

14

120648C2

SHIM,0.100mm Thk

1шт.

14

120649C2

SHIM,0.130mm Thk

1шт.

14

120650C2

SHIM,0.300mm Thk

1шт.

14

120651C2

SHIM,0.760mm Thk

1шт.

20

92824C1

SPACER,63.65mm ID x 88.9mm OD x 14mm L

1шт.

21

86991568

CARRIER

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

1шт.

25

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

1шт.

26

242492A5

PISTON

1шт.

27

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

1шт.

28

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

1шт.

34

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Separator

1шт.

35

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Friction

8шт.

36

92934C2

DISC

Separator

7шт.

37

1342645C3

CLUTCH DISC

CLUTCH DISK

1шт.

38

1285996C1

SNAP RING,151mm OD, Internal

1шт.

39

93350C1

RING

2шт.

40

1286012C2

BELLEVILLE WASHER

13шт.

41

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

2шт.

42

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

1шт.

43

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

1шт.

51

92795C1

PINION

1шт.

52

80906C1

BEARING ASSY,57.14mm ID x 66.7mm OD x 31.75mm W

1шт.

53

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

2шт.

54

K620185

THRUST BEARING

1шт.

55

ST2051

TAPERED BEARING,1.75" ID x 3.6718" OD x 1.1875"

2шт.

56

ST863

BEARING CUP,93.22mm OD x 23.81mm W

2шт.

58

1285986C1

GEAR

Driven, 39T

1шт.

61

1285989C1

GEAR

Driven, 37T

1шт.

62

1285981C1

GEAR

Drive, 29T

1шт.

Выбрано товаров: 41
