Запчасти Case IH MX210 (06-11) - SPEED TRANSMISSION - INPUT SHAFT WITH CREEP SPEED, TRANSMISSION ASN AJB0361241 (06) - POWER TRAIN

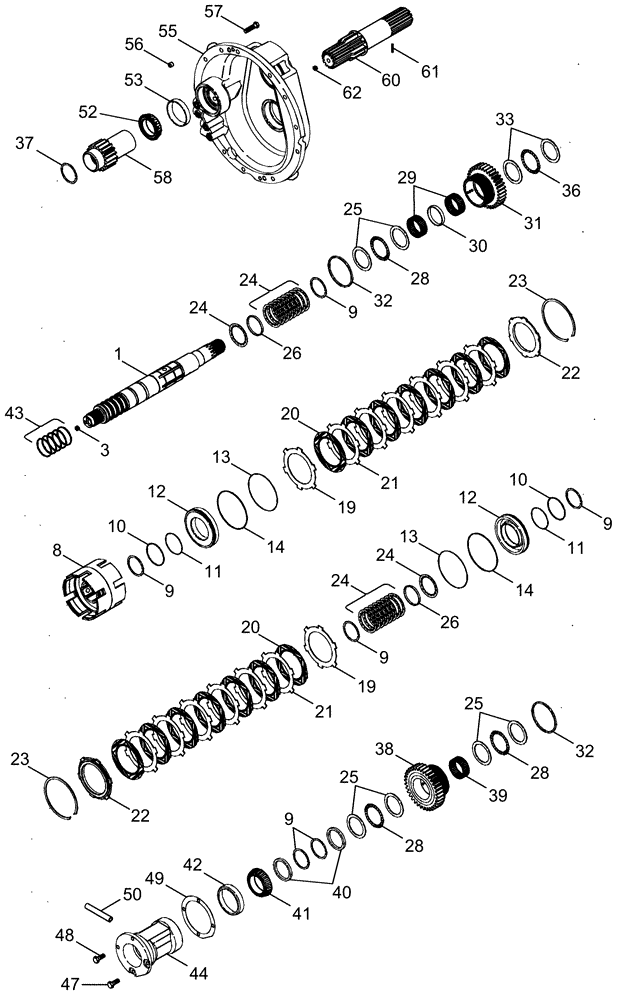

Схема запчастей Case IH MX210 - (06-11) - SPEED TRANSMISSION - INPUT SHAFT WITH CREEP SPEED, TRANSMISSION ASN AJB0361241 (06) - POWER TRAIN
23
44
22
13
31
26
23
22
24
33
30
24
14
9
12
37
57
25
10
25
12
55
1
40
53
61
9
41
49
20
58
11
19
26
9
13
28
24
11
38
3
39
52
50
43
24
60
21
29
8
62
28
14
21
9
25
32
48
28
47
19
42
36
9
32
10
20
56

Артикул

Название

Примечание

Количество

1

87425385

SHAFT ASSY.

Inc. 3

1шт.

3

1342851C1

PLUG

10 mm

2шт.

8

86987595

CARRIER

1шт.

9

101-11250

SNAP RING,#250, 2.356, Ext

6шт.

10

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

2шт.

11

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

2шт.

12

242492A5

PISTON

2шт.

13

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

2шт.

14

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

2шт.

19

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Separator

2шт.

20

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Friction

14шт.

21

92934C2

DISC

Separator

12шт.

22

1342645C3

CLUTCH DISC

CLUTCH DISK

2шт.

23

1285996C1

SNAP RING,151mm OD, Internal

2шт.

24

87425389

BELLEVILLE SPRING

18шт.

25

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

6шт.

26

87434656

SEAL,63.75mm ID x 67.75mm OD x 5.5mm Thk

Lube

2шт.

28

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

3шт.

29

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

2шт.

30

93297C1

SPACER,62.45mm ID x 66.48mm OD x 9.98mm L

1шт.

31

1342495C1

DRIVEN GEAR

37T

1шт.

32

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

2шт.

33

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

2шт.

36

87012543

THRUST BEARING,57.15mm ID x 76.2mm OD x 1.98mm W

1шт.

37

92793C1

RING

1шт.

38

1285985C1

GEAR

34T

1шт.

39

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

1шт.

40

1286039C1

SPACER

2шт.

41

364465C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

1шт.

42

258452C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

1шт.

43

1286026C1

SEALING RING,Locking, 59.41mm ID x 63.41mm OD x 2.87mm Thk

5шт.

44

254574A2

CAGE

1шт.

47

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

48

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

49

1286071C1

SHIM,115mm ID x 148mm OD x 0.08mm Thk

2шт.

49

1286072C1

SHIM,115mm ID x 148mm OD x 0.1mm Thk

2шт.

49

1286073C1

SHIM,115mm ID x 148mm OD x 0.13mm Thk

2шт.

49

1286074C1

SHIM,115mm ID x 148mm OD x 0.3mm Thk

2шт.

49

1286075C1

SHIM,115mm ID x 148mm OD x 0.76mm Thk

2шт.

50

1981207C1

TUBE,15.913 mm OD

1шт.

52

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

2-1/4 inch ID

1шт.

53

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

55

87439859

CARRIER

Inc. 56

1шт.

56

37-188

DOWEL,1/2" x 1/2"

9шт.

57

613-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

11шт.

58

230042A1

GEAR

17T, Creeper Drive

1шт.

60

282724A1

SHAFT

Inc. 61, 62

1шт.

61

38-3605

PIN,3/32" x 5/16", Coiled

1шт.

62

284151A1

SET SCREW,M10 x 1.5 x 10mm

M10 x 10

1шт.

Выбрано товаров: 49
