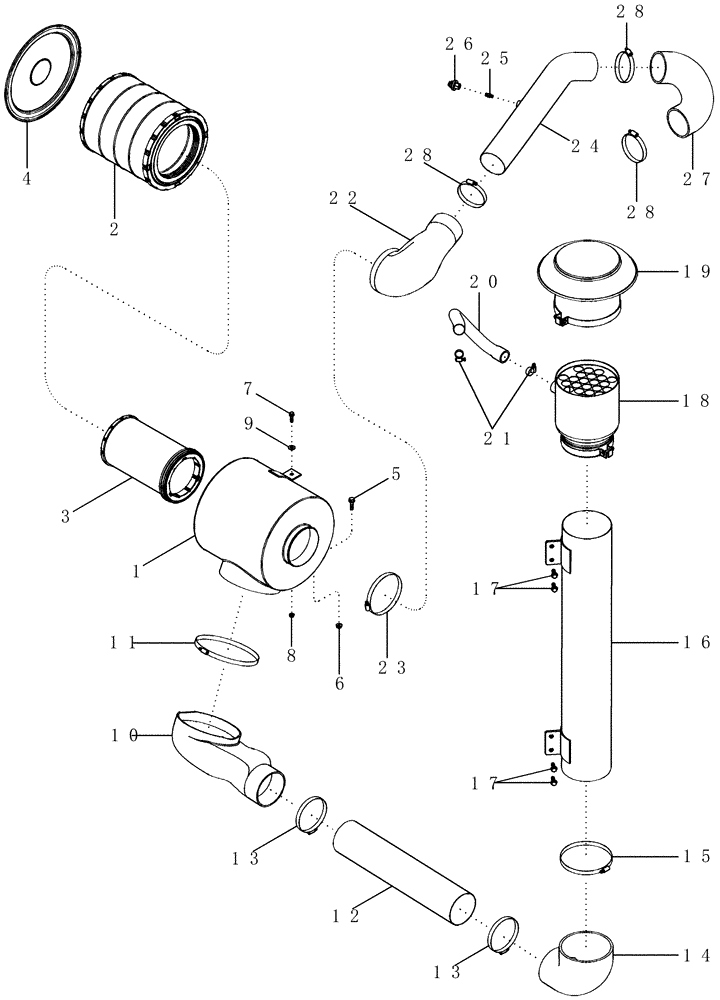

Запчасти Case IH MX210 (02-05) - AIR INDUCTION SYSTEM - SEVERE DUTY (02) - ENGINE

1

87410376

AIR CLEANER

1шт.

2

367349A1

FILTER

Primary

1шт.

3

367350A1

AIR FILTER

Secondary

1шт.

4

379554A1

COVER

1шт.

5

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

6

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

7

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

10

87416128

AIR DUCT

1шт.

11

87562289

CLAMP,8.75" - 9.62", Worm Gear

1шт.

12

87410370

AIR INTAKE TUBE,127 mm OD x 615 mm L

1шт.

13

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

2шт.

14

87410367

HOSE

1шт.

15

214-32128

HOSE CLAMP,7-1/4" - 8-1/8", HD Worm, W/ Liner

1шт.

16

87416138

TUBE,835 mm L

1шт.

17

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

18

87426752

AIR CLEANER

Precleaner

1шт.

19

87417755

COVER

1шт.

20

87425759

HOSE,38.10 mm ID, 44.50 mm ID x 450.00 mm

1шт.

21

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

22

87409597

AIR DUCT

1шт.

23

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

24

87416130

AIR INTAKE TUBE,321.5 mm L

1шт.

25

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

1шт.

26

79081900

SENSOR

1шт.

27

297362A1

INTAKE AIR HOSE,101.60 mm ID x 209.60 mm, SAE J20

1шт.

28

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

3шт.
